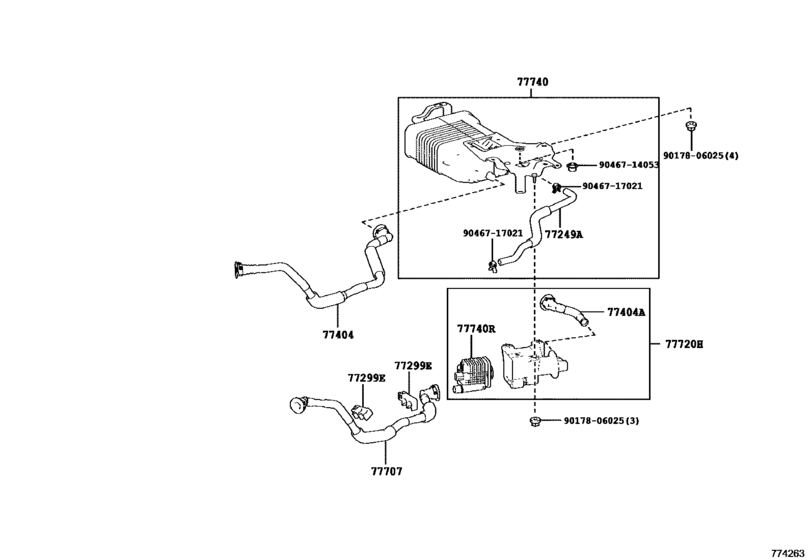

Fuel Tank & Tube ([03.2017 - ] CHARCOAL CANISTER (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77249A
|
77249A
77249-11010
Hose, Fuel Emission
[01.2017 -] GWZ100,URZ100 |
77249-11010 |
— | ||
|
77299E
|
77299E
77299-50030
Clamp (For Charcoal Canister Pipe)
[01.2017 -] GWZ100,URZ100 |
77299-50030 |
— | ||
|
77404
|
77404
77404-11020
Hose Sub-Assy, Fuel Tank Vent
[01.2017 -] GWZ100,URZ100 |
77404-11020 |
— | ||
|
77404A
|
77404A
77404-11010
Hose Sub-Assy,fuel Tank Vent
[01.2017 -] GWZ100,URZ100 |
77404-11010 |
— | ||
|
77707
|
77707
77707-11010
Tube Sub-Assy, Charcoal Canister Outlet
[01.2017 -] GWZ100,URZ100 |
77707-11010 |
— | ||
|
77720H
|
77720H
77730-11010
Valve Assy, Fuel Outlet
[03.2017 -] URZ100 |
77730-11010 |
— | ||
|
77740
|
77740
77740-11050
Canister Assy, Charcoal
[01.2017 -] GWZ100,URZ100 |
77740-11050 |
— | ||
|
77740R
|
77740R
90910-14008
Leak Detection Pump Sub-Assy, Charcoal Canister
[01.2017 -] GWZ100,URZ100 |
90910-14008 |
— | ||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.10 |
||
|
9046717021
|
9046717021
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-17021 |
US $2.15 |
