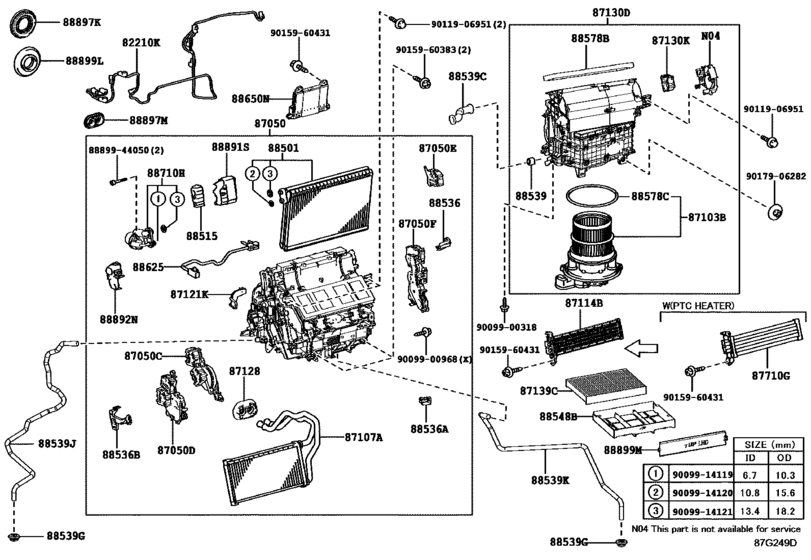

Heating & Air Conditioning - Cooler Unit ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-11010 Harness Assy, Air Conditioner[01.2017 -] GWZ100,URZ100 |
82212-11010 |
US $47.82 |
||
|
87050
|
87050
87050-11010
Radiator Assy, Air Conditioner
[03.2017 -] URZ100 KOREA SPEC |
87050-11010 |
— | ||
|
87050
|
87050
87050-11020
Radiator Assy, Air Conditioner
[03.2017 -] URZ100 |
87050-11020 |
— | ||
|
87050C
|
87050C
87106-11060 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[01.2017 -] GWZ100,URZ100 |
87106-11060 |
US $238.13 |
||
|
87050D
|
87050D
87106-11010 Damper Servo Sub-Assy, Air Conditioner Radiator, No.2[01.2017 -] GWZ100,URZ100 |
87106-11010 |
US $160.97 |
||
|
87050E
|
87050E
87106-11090 Damper Servo Sub-Assy, Air Conditioner Radiator, No.3[01.2017 -] GWZ100,URZ100 |
87106-11090 |
US $218.82 |
||
|
87050F
|
87050F
87106-11020 Damper Servo Sub-Assy, Air Conditioner Radiator, No.4[01.2017 -] GWZ100,URZ100 |
87106-11020 |
US $170.60 |
||
|
87103B
|
87103B
87103-11010
Motor Sub-Assy, Blower W/fan
[01.2017 -] GWZ100,URZ100 |
87103-11010 |
— | ||
|
87107A
|
87107A
87107-11010
Unit Sub-Assy, Heater Radiator
[01.2017 -] GWZ100,URZ100 |
87107-11010 |
— | ||
|
87114B
|
87114B
87114-30010 Cover, Heater[01.2017 -] GWZ100,URZ100 |
87114-30010 |
US $36.99 |
||
|
87121K
|
87121K
87121-11030
Bracket, Heater
[01.2017 -] GWZ100,URZ100 |
87121-11030 |
— | ||
|
87128
|
87128
87128-28020
Grommet, Heater
[01.2017 -] GWZ100,URZ100 |
87128-28020 |
— | ||
|
87130D
|
87130D
87130-11010
Blower Assy
[01.2017 -] GWZ100,URZ100 |
87130-11010 |
— | ||
|
87130K
|
87130K
87106-11100 Damper Servo Sub-Assy, Blower, No.1[01.2017 -] GWZ100,URZ100 |
87106-11100 |
US $242.55 |
||
|
87139C
|
87139C
87139-11010 Filter, Clean Air[01.2017 -] GWZ100,URZ100 DEODORANT FILTER,OE PART |
87139-11010 |
from US $67.20 |
||
|
88501
|
88501
88501-11010
Evaporator Sub-Assy, Cooler, No.1
[03.2017 -] URZ100 KOREA SPEC |
88501-11010 |
— | ||
|
88501
|
88501
88501-11020
Evaporator Sub-Assy, Cooler, No.1
[03.2017 -] URZ100 |
88501-11020 |
— | ||
|
88515
|
88515
88515-11010
Valve, Cooler Expansion
[01.2017 -] GWZ100,URZ100 |
88515-11010 |
— | ||
|
88515
|
88515
88515-48110 Valve, Cooler Expansion[01.2017 -] GWZ100,URZ100 KOREA SPEC |
88515-48110 |
from US $97.72 |
||
|
88536
|
88536
87241-11010
Bracket, Cooling Unit, No.1
[01.2017 -] GWZ100,URZ100 |
87241-11010 |
— | ||
|
88536A
|
88536A
87241-11030
Bracket, Cooling Unit, No.2
[01.2017 -] GWZ100,URZ100 |
87241-11030 |
— | ||
|
88536B
|
88536B
87241-11050
Bracket, Cooling Unit, No.3
[01.2017 -] GWZ100,URZ100 |
87241-11050 |
— | ||
|
88539
|
88539
88539-30A00
Hose, Cooler Unit Drain, No.1
[01.2017 -] GWZ100,URZ100 |
88539-30A00 |
— | ||
|
88539C
|
88539C
88539-11050
Hose, Cooler Unit Drain, No.2
[01.2017 -] GWZ100,URZ100 |
88539-11050 |
— | ||
|
88539G
|
88539G
90480-26029
Grommet (For Cooler Unit Drain Hose)
[01.2017 -] GWZ100,URZ100 |
90480-26029 |
— | ||
|
88539J
|
88539J
88539-11010
Hose, Drain Cooler
[01.2017 -] GWZ100,URZ100 |
88539-11010 |
— | ||
|
88539K
|
88539K
88539-11020
Hose, Drain Cooler
[01.2017 -] GWZ100,URZ100 |
88539-11020 |
— | ||
|
88548B
|
88548B
88899-11010
Case, Air Filter
[01.2017 -] GWZ100,URZ100 |
88899-11010 |
— | ||
|
88578B
|
88578B
87429-53010
Packing, Cooling Unit, No.1
[01.2017 -] GWZ100,URZ100 |
87429-53010 |
— | ||
|
88578C
|
88578C
87127-11010
Packing, Cooling Unit, No.2
[01.2017 -] GWZ100,URZ100 |
87127-11010 |
— | ||
|
88625
|
88625
88620-50010
Thermistor, Cooler No.2
[01.2017 -] GWZ100,URZ100 |
88620-50010 |
— | ||
|
88650N
|
88650N
88650-11030
Amplifier Assy, Air Conditioner
[01.2017 -] GWZ100,URZ100 KOREA SPEC |
88650-11030 |
— | ||
|
88650N
|
88650N
88650-11040
Amplifier Assy, Air Conditioner
[01.2017 -] GWZ100,URZ100 |
88650-11040 |
— | ||
|
88650N
|
88650N
88650-11050
Amplifier Assy, Air Conditioner
[01.2017 -] GWZ100,URZ100 SEAT HEATER-W/O |
88650-11050 |
— | ||
|
88710H
|
88710H
88710-11010
Tube & Accessory Assy, Air Conditioner
[01.2017 -] GWZ100,URZ100 |
88710-11010 |
— | ||
|
88891S
|
88891S
88891-11010
Cover, Cooler, No.1
[01.2017 -] GWZ100,URZ100 |
88891-11010 |
— | ||
|
88892N
|
88892N
88892-11010
Cover, Cooler, No.2
[01.2017 -] GWZ100,URZ100 |
88892-11010 |
— | ||
|
88897K
|
88897K
88897-11020
Grommet, (For Cooler Pipe)
[01.2017 -] GWZ100,URZ100 |
88897-11020 |
— | ||
|
88897M
|
88897M
87128-30060
Grommet, Heater
[01.2017 -] GWZ100,URZ100 |
87128-30060 |
— | ||
|
88899L
|
88899L
88899-11020
Parts, Cooling Unit
[01.2017 -] GWZ100,URZ100 |
88899-11020 |
— | ||
|
88899M
|
88899M
88899-11030
Plate, Cover(For Air Filter)
[01.2017 -] GWZ100,URZ100 |
88899-11030 |
— | ||
|
8889944050
|
8889944050
88899-44050 Bolt, W/Washer |
88899-44050 |
from US $0.84 |
||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.62 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.67 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.54 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
