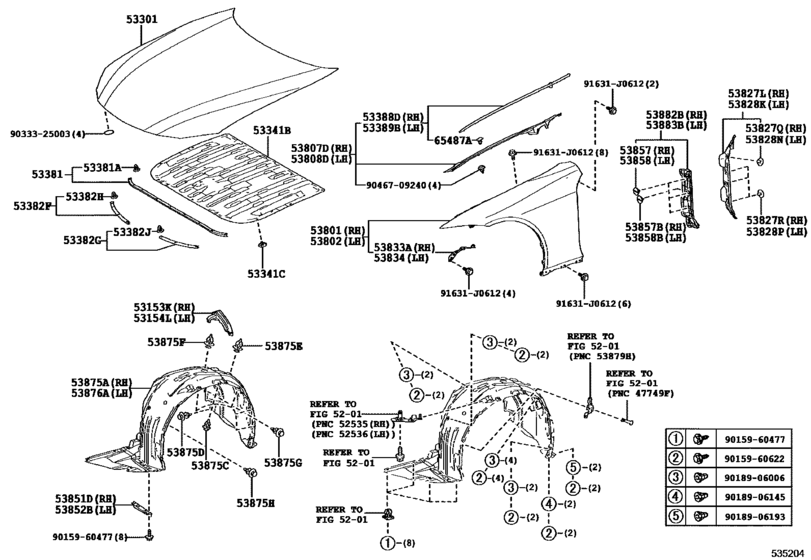

Hood & Front Fender ([01.2017 - ] (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153K
|
53153K
53153-11010 Guide, Radiator Grille Side Air, Rh[01.2017 -] GWZ100,URZ100 |
53153-11010 |
from US $25.73 |
||
|
53154L
|
53154L
53154-11010 Guide, Radiator Grille Side Air, Lh[01.2017 -] GWZ100,URZ100 |
53154-11010 |
from US $25.51 |
||
|
53301
|
53301
53301-11020
Hood Sub-Assy
[01.2017 -] GWZ100,URZ100 |
53301-11020 |
— | ||
|
53341B
|
53341B
53341-11010 Insulator, Hood[01.2017 -] GWZ100,URZ100 |
53341-11010 |
US $115.84 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[01.2017 -] GWZ100,URZ100 |
90467-09050 |
from US $0.84 |
||
|
53381
|
53381
53381-11010 Seal, Hood To Radiator Support[01.2017 -] GWZ100,URZ100 |
53381-11010 |
US $18.31 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[01.2017 -] GWZ100,URZ100 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[01.2017 -] GWZ100,URZ100 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [01.2017 -] GWZ100,URZ100 |
90467-08011-83 |
US $0.51 |
||
|
53382F
|
53382F
53382-11010 Seal, Hood To Radiator Support, Rh[01.2017 -] GWZ100,URZ100 |
53382-11010 |
US $6.81 |
||
|
53382G
|
53382G
53382-11020 Seal, Hood To Radiator Support, Lh[01.2017 -] GWZ100,URZ100 |
53382-11020 |
US $6.99 |
||
|
53382H
|
53382H
90467-08011 Clip(For Headlamp Cover Seal)[01.2017 -] GWZ100,URZ100 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53382H
|
53382H
90467-08011-TH CLIP[01.2017 -] GWZ100,URZ100 |
90467-08011-TH |
US $0.30 |
||
|
53382H
|
53382H
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [01.2017 -] GWZ100,URZ100 |
90467-08011-83 |
US $0.51 |
||
|
53382J
|
53382J
90467-08011 Clip(For Headlamp Cover Seal)[01.2017 -] GWZ100,URZ100 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53382J
|
53382J
90467-08011-TH CLIP[01.2017 -] GWZ100,URZ100 |
90467-08011-TH |
US $0.30 |
||
|
53382J
|
53382J
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [01.2017 -] GWZ100,URZ100 |
90467-08011-83 |
US $0.51 |
||
|
53388D
|
53388D
53388-11010 Seal, Hood To Front Fender, Rh[01.2017 -] GWZ100,URZ100 |
53388-11010 |
US $28.28 |
||
|
53389B
|
53389B
53389-11010 Seal, Hood To Front Fender, Lh[01.2017 -] GWZ100,URZ100 |
53389-11010 |
US $28.28 |
||
|
53801
|
53801
53801-11050
Fender Sub-Assy, Front Rh
[01.2017 -] GWZ100,URZ100 |
53801-11050 |
— | ||
|
53802
|
53802
53802-11040
Fender Sub-Assy, Front Lh
[01.2017 -] GWZ100,URZ100 |
53802-11040 |
— | ||
|
53807D
|
53807D
53807-11010 Reinforcement Sub-Assy, Front Fender, Top Rh[01.2017 -] GWZ100,URZ100 |
53807-11010 |
US $38.85 |
||
|
53808D
|
53808D
53808-11010 Reinforcement Sub-Assy, Front Fender, Top Lh[01.2017 -] GWZ100,URZ100 |
53808-11010 |
US $42.25 |
||
|
53827L
|
53827L
53827-11010 Protector, Front Fender Side Panel, Rh[01.2017 -] GWZ100,URZ100 |
53827-11010 |
US $31.25 |
||
|
53827Q
|
53827Q
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1[01.2017 -] GWZ100,URZ100 BLACK |
90467-06205-C0 |
from US $0.67 |
||
|
53827R
|
53827R
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1[01.2017 -] GWZ100,URZ100 BLACK |
90467-06205-C0 |
from US $0.67 |
||
|
53828K
|
53828K
53828-11010 Protector, Front Fender Side Panel, Lh[01.2017 -] GWZ100,URZ100 |
53828-11010 |
US $31.25 |
||
|
53828N
|
53828N
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1[01.2017 -] GWZ100,URZ100 BLACK |
90467-06205-C0 |
from US $0.67 |
||
|
53828P
|
53828P
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1[01.2017 -] GWZ100,URZ100 BLACK |
90467-06205-C0 |
from US $0.67 |
||
|
53833A
|
53833A
53833-11010 Panel, Front Fender Side, Lower Rh[01.2017 -] GWZ100,URZ100 |
53833-11010 |
from US $6.70 |
||
|
53834
|
53834
53834-11010 Panel, Front Fender Side, Lower Lh[01.2017 -] GWZ100,URZ100 |
53834-11010 |
US $6.70 |
||
|
53851D
|
53851D
53851-11010 Pad, Front Wheel Opening Extension, Rh[01.2017 -] GWZ100,URZ100 |
53851-11010 |
from US $11.08 |
||
|
53852B
|
53852B
53852-11010 Pad, Front Wheel Opening Extension, Lh[01.2017 -] GWZ100,URZ100 |
53852-11010 |
US $10.89 |
||
|
53857
|
53857
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [01.2017 -] GWZ100,URZ100 |
53857-47011 |
from US $0.72 |
||
|
53857B
|
53857B
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [01.2017 -] GWZ100,URZ100 |
53857-47011 |
from US $0.72 |
||
|
53858
|
53858
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [01.2017 -] GWZ100,URZ100 |
53857-47011 |
from US $0.72 |
||
|
53858B
|
53858B
53857-47011 Retainer, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [01.2017 -] GWZ100,URZ100 |
53857-47011 |
from US $0.72 |
||
|
53875A
|
53875A
53805-11020 Liner, Front Fender, Rh[01.2017 -] GWZ100,URZ100 |
53805-11020 |
from US $140.39 |
||
|
53875C
|
53875C
90467-07214 Clip, Front Fender Liner[01.2017 -] GWZ100,URZ100 |
90467-07214 |
from US $0.84 |
||
|
53875D
|
53875D
90467-07214 Clip, Front Fender Liner[01.2017 -] GWZ100,URZ100 |
90467-07214 |
from US $0.84 |
||
|
53875E
|
53875E
90467-07214 Clip, Front Fender Liner[01.2017 -] GWZ100,URZ100 |
90467-07214 |
from US $0.84 |
||
|
53875F
|
53875F
90467-07214 Clip, Front Fender Liner[01.2017 -] GWZ100,URZ100 |
90467-07214 |
from US $0.84 |
||
|
53875G
|
53875G
90467-07214 Clip, Front Fender Liner[01.2017 -] GWZ100,URZ100 |
90467-07214 |
from US $0.84 |
||
|
53875H
|
53875H
90467-07214 Clip, Front Fender Liner[01.2017 -] GWZ100,URZ100 |
90467-07214 |
from US $0.84 |
||
|
53876A
|
53876A
53806-11020 Liner, Front Fender, Lh[01.2017 -] GWZ100,URZ100 |
53806-11020 |
US $142.68 |
||
|
53882B
|
53882B
53882-11010 Seal, Front Fender, Rh[01.2017 -] GWZ100,URZ100 |
53882-11010 |
US $23.98 |
||
|
53883B
|
53883B
53883-11010 Seal, Front Fender, Lh[01.2017 -] GWZ100,URZ100 |
53883-11010 |
from US $23.98 |
||
|
65487A
|
65487A
65487-60010 Clip(For Front Fender To Cowl Side Seal)[01.2017 -] GWZ100,URZ100 |
65487-60010 |
from US $0.91 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9015960622
|
9015960622
90159-60622
SCREW, W/WASHER TAPP
|
90159-60622 |
— | ||
| replacement | |||||
|
9015960622
|
9015960622
9015960623 Screw, W/washer Tapping |
9015960623 |
from US $0.48 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9018906145
|
9018906145
90189-06145 GROMMET SCREW |
90189-06145 |
from US $0.84 |
||
|
9018906193
|
9018906193
90189-06193 Grommet(For Engine Under Cover) |
90189-06193 |
from US $0.74 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.25 |
||
|
9046709240
|
9046709240
90467-09240 Clip (For Roof Side, Inner Upper Garnish) |
90467-09240 |
from US $0.82 |
||
