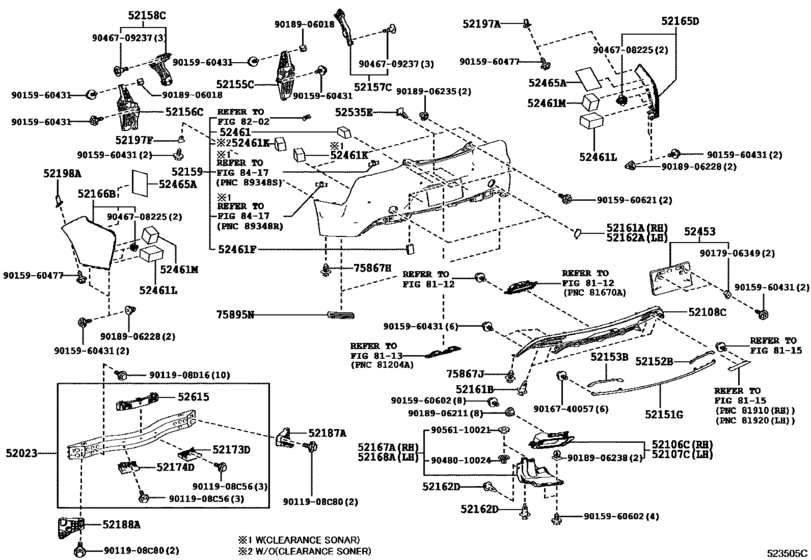

Rear Bumper & Bumper Stay ([01.2017 - ] EXCEPT KOREA SPEC (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-11030
Reinforcement Sub-Assy, Rear Bumper
[01.2017 -] GWZ100,URZ100 |
52023-11030 |
— | ||
|
52106C
|
52106C
52106-11020 Extension Sub-Assy, Rear Bumper, Rh[01.2017 -] GWZ100,URZ100 |
52106-11020 |
from US $180.88 |
||
|
52107C
|
52107C
52107-11020 Extension Sub-Assy, Rear Bumper, Lh[01.2017 -] GWZ100,URZ100 |
52107-11020 |
US $180.88 |
||
|
52108C
|
52108C
52108-11010 Extension Sub-Assy, Rear Bumper, Center[01.2017 -] GWZ100,URZ100 |
52108-11010 |
US $281.08 |
||
|
52151G
|
52151G
52151-11040 Extension, Rear Bumper[01.2017 -] GWZ100,URZ100 |
52151-11040 |
US $55.10 |
||
|
52151G
|
52151G
52151-11050
Extension, Rear Bumper
[01.2017 -] GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52151-11050 |
— | ||
|
52152B
|
52152B
52152-11030 Extension, Rear Bumper, Rh[01.2017 -] GWZ100,URZ100 |
52152-11030 |
US $31.75 |
||
|
52152B
|
52152B
52152-11040
Extension, Rear Bumper, Rh
[01.2017 -] GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52152-11040 |
— | ||
|
52153B
|
52153B
52153-11030 Extension, Rear Bumper, Lh[01.2017 -] GWZ100,URZ100 |
52153-11030 |
US $31.92 |
||
|
52153B
|
52153B
52153-11040
Extension, Rear Bumper, Lh
[01.2017 -] GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52153-11040 |
— | ||
|
52155C
|
52155C
52155-11010 Support, Rear Bumper Side, No.1 Rh[01.2017 -] GWZ100,URZ100 |
52155-11010 |
from US $103.32 |
||
|
52156C
|
52156C
52156-11010 Support, Rear Bumper Side, No.1 Lh[01.2017 -] GWZ100,URZ100 |
52156-11010 |
US $103.32 |
||
|
52157C
|
52157C
52157-11010 Support, Rear Bumper Side, No.2 Rh[01.2017 -] GWZ100,URZ100 |
52157-11010 |
US $64.18 |
||
|
52158C
|
52158C
52158-11010 Support, Rear Bumper Side, No.2 Lh[01.2017 -] GWZ100,URZ100 |
52158-11010 |
from US $64.18 |
||
|
52159
|
52159
52159-11902
Cover, Rear Bumper
[01.2017 -] GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
52159-11902 |
— | ||
|
52159
|
52159
52159-11906
Cover, Rear Bumper
[01.2017 -] GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
52159-11906 |
— | ||
|
52159
|
52159
52159-11910
Cover, Rear Bumper
[01.2017 -] GWZ100,URZ100 |
52159-11910 |
— | ||
|
52161A
|
52161A
52161-11900
Piece, Rear Bumper, Rh
[01.2017 -] GWZ100,URZ100 |
52161-11900 |
— | ||
| replacement | |||||
|
52161A
|
52161A
52161-11901 Piece, Rear Bumper, Rh[01.2017 -] GWZ100,URZ100 |
52161-11901 |
US $12.84 |
||
|
52161B
|
52161B
52161-16010 Clip[01.2017 -] GWZ100,URZ100 |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[01.2017 -] GWZ100,URZ100 |
52161-0K040 |
from US $1.46 |
||
|
52161B
|
52161B
52161-02020 Clip[01.2017 -] GWZ100,URZ100 |
52161-02020 |
US $5.27 |
||
|
52162A
|
52162A
52162-11900
Piece, Rear Bumper, Lh
[01.2017 -] GWZ100,URZ100 |
52162-11900 |
— | ||
| replacement | |||||
|
52162A
|
52162A
52162-11901
PIECE RR BUMPER LH
[01.2017 -] GWZ100,URZ100 |
52162-11901 |
— | ||
|
52162D
|
52162D
52161-16010 Clip[01.2017 -] GWZ100,URZ100 |
52161-16010 |
from US $1.67 |
||
| replacements | |||||
|
52162D
|
52162D
52161-0K040 Clip[01.2017 -] GWZ100,URZ100 |
52161-0K040 |
from US $1.46 |
||
|
52162D
|
52162D
52161-02020 Clip[01.2017 -] GWZ100,URZ100 |
52161-02020 |
US $5.27 |
||
|
52165D
|
52165D
52165-11901 Extension, Rear Bumper Corner, Rh[01.2017 -] GWZ100,URZ100 |
52165-11901 |
US $102.09 |
||
|
52166B
|
52166B
52166-11901 Extension, Rear Bumper Corner, Lh[01.2017 -] GWZ100,URZ100 |
52166-11901 |
from US $101.69 |
||
|
52167A
|
52167A
52167-11010 Support, Rear Bumper Side, No.4 Rh[01.2017 -] GWZ100,URZ100 |
52167-11010 |
US $35.12 |
||
|
52168A
|
52168A
52168-11010 Support, Rear Bumper Side, No.4 Lh[01.2017 -] GWZ100,URZ100 |
52168-11010 |
US $35.38 |
||
|
52173D
|
52173D
52173-11020
Reinforcement, Rear Bumper Bar, Rh
[01.2017 -] GWZ100,URZ100 |
52173-11020 |
— | ||
|
52174D
|
52174D
52174-11020
Reinforcement, Rear Bumper Bar, Lh
[01.2017 -] GWZ100,URZ100 |
52174-11020 |
— | ||
|
52187A
|
52187A
52187-11010
Reinforcement, Rear Bumper Arm, Rh
[01.2017 -] GWZ100,URZ100 |
52187-11010 |
— | ||
|
52188A
|
52188A
52188-11010 Reinforcement, Rear Bumper Arm, Lh[01.2017 -] GWZ100,URZ100 |
52188-11010 |
US $78.38 |
||
|
52197A
|
52197A
52197-53040 Bracket, Rear Bumper Seal, Rh[01.2017 -] GWZ100,URZ100 |
52197-53040 |
from US $1.88 |
||
|
52197F
|
52197F
52197-62020 Bracket, Front Bumper Seal[01.2017 -] GWZ100,URZ100 |
52197-62020 |
from US $2.96 |
||
|
52198A
|
52198A
52198-53020 Bracket, Rear Bumper Seal, Lh[01.2017 -] GWZ100,URZ100 |
52198-53020 |
from US $1.90 |
||
|
52453
|
52453
52453-11020
Guard, Rear Bumper, Center
[01.2017 -] GWZ100,URZ100; GWZ100,URZ100 KOREA SPEC |
52453-11020 |
— | ||
|
52453
|
52453
52453-11060
Guard, Rear Bumper, Center
[01.2017 -] GWZ100,URZ100 KOREA SPEC |
52453-11060 |
— | ||
|
52461
|
52461
52461-11010 Pad, Rear Bumper, Center[01.2017 -] GWZ100,URZ100 |
52461-11010 |
US $5.45 |
||
|
52461F
|
52461F
52461-11020 Pad, Rear Bumper[01.2017 -] GWZ100,URZ100 |
52461-11020 |
US $2.72 |
||
|
52461K
|
52461K
52461-11030 Pad, Rear Bumper, No.1[01.2017 -] GWZ100,URZ100 |
52461-11030 |
US $6.81 |
||
|
52461L
|
52461L
52461-11040 Pad, Rear Bumper, No.2[01.2017 -] GWZ100,URZ100 |
52461-11040 |
US $6.09 |
||
|
52461M
|
52461M
52462-53030 Pad, Rear Bumper[01.2017 -] GWZ100,URZ100 |
52462-53030 |
from US $2.58 |
||
|
52465A
|
52465A
52465-11010 Insert, Rear Bumper Pad[01.2017 -] GWZ100,URZ100 |
52465-11010 |
US $8.24 |
||
|
52535E
|
52535E
52535-28020 Retainer, Front Bumper, Lower[01.2017 -] GWZ100,URZ100 |
52535-28020 |
from US $1.71 |
||
|
52615
|
52615
52615-11010
Absorber, Rear Bumper Energy
[01.2017 -] GWZ100,URZ100 |
52615-11010 |
— | ||
|
75867H
|
75867H
75867-33050 Clip, Rear Quarter Panel Moulding[01.2017 -] GWZ100,URZ100 |
75867-33050 |
from US $3.33 |
||
|
75867J
|
75867J
75867-33050 Clip, Rear Quarter Panel Moulding[01.2017 -] GWZ100,URZ100 |
75867-33050 |
from US $3.33 |
||
|
75895N
|
75895N
75895-28010 Tape, Moulding, No.2[01.2017 -] GWZ100,URZ100 |
75895-28010 |
US $25.54 |
||
|
9011908C56
|
9011908C56
90119-08C56 BOLT WWASHER |
90119-08C56 |
US $1.79 |
||
|
9011908C80
|
9011908C80
90119-08C80 New Genuine Part |
90119-08C80 |
US $0.58 |
||
|
9011908D16
|
9011908D16
90119-08D16 Bolt, Instrument Panel |
90119-08D16 |
US $1.79 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.61 |
||
|
9015960621
|
9015960621
90159-60621 SCREW, W/WASHER |
90159-60621 |
from US $0.51 |
||
|
9016740057
|
9016740057
90167-40057 SCREW, PAN TAPPING |
90167-40057 |
from US $0.53 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.27 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.97 |
||
|
9018906211
|
9018906211
90189-06211 GROMMET SCREW |
90189-06211 |
from US $0.70 |
||
|
9018906228
|
9018906228
90189-06228 Grommet(For Rear Bumper) |
90189-06228 |
from US $0.67 |
||
|
9018906235
|
9018906235
90189-06235 GROMMET SCREW |
90189-06235 |
from US $0.59 |
||
|
9018906238
|
9018906238
90189-06238 GROMMET SCREW |
90189-06238 |
from US $0.84 |
||
|
9046708225
|
9046708225
90467-08225 Clip, Outside Moulding, No.5 |
90467-08225 |
from US $0.61 |
||
|
9046709237
|
9046709237
90467-09237 Clip, Rear Bumper Side |
90467-09237 |
from US $0.80 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.79 |
||
|
9056110021
|
9056110021
90561-10021 SPACER |
90561-10021 |
US $1.25 |
||
