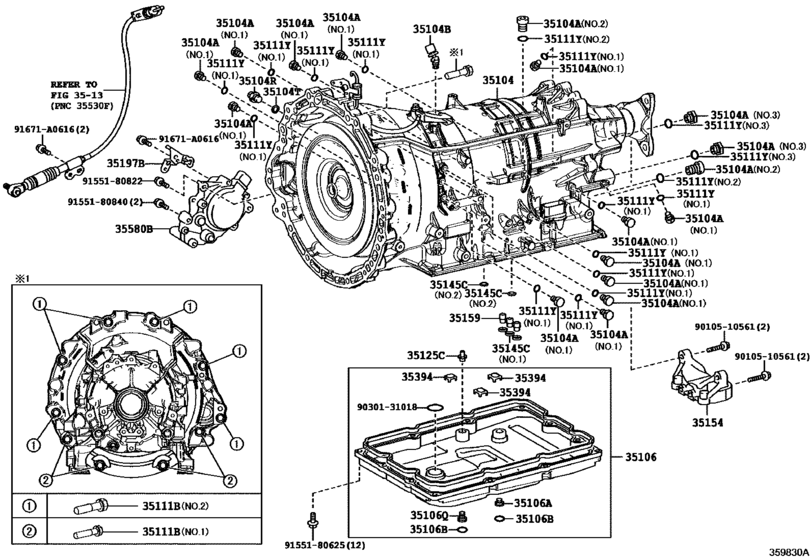

Transmission Case & Oil Pan (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35104
|
35104
35104-11010
Case Sub-Assy, Automatic Transmission
[03.2017 -] URZ100 |
35104-11010 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[03.2017 -] URZ100 NO.1 |
90341-08001 |
from US $1.48 |
||
|
35104A
|
35104A
90341-14011 Plug, Automatic Transmission Case[03.2017 -] URZ100 NO.2 |
90341-14011 |
from US $3.14 |
||
|
35104A
|
35104A
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[03.2017 -] URZ100 NO.3 |
90341-18059 |
from US $3.33 |
||
|
35104B
|
35104B
90930-03238 Plug, Breather, No.1 (Atm)[03.2017 -] URZ100 |
90930-03238 |
US $1.16 |
||
|
35104R
|
35104R
90341-18060 Plug, W/head Straight Screw(For Transaxle Housing & Case)[03.2017 -] URZ100 |
90341-18060 |
US $4.30 |
||
|
35104T
|
35104T
90430-18008 Gasket[03.2017 -] URZ100 |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
35104T
|
35104T
90430-T0021 Gasket(For Manual Transmission Filler Plug)[03.2017 -] URZ100 |
90430-T0021 |
US $0.99 |
||
|
35106
|
35106
35106-11020 Pan Sub-Assy, Automatic Transmission Oil[03.2017 -] URZ100 |
35106-11020 |
US $142.68 |
||
|
35106A
|
35106A
90341-12039 Plug Sub-Assy, Drain (Atm)[03.2017 -] URZ100 |
90341-12039 |
US $3.40 |
||
|
35106B
|
35106B
90301-17022 Gasket, Drain Plug (Atm)[03.2017 -] URZ100 |
90301-17022 |
US $3.05 |
||
|
35106Q
|
35106Q
90341-12039 Plug Sub-Assy, Drain (Atm)[03.2017 -] URZ100 |
90341-12039 |
US $3.40 |
||
|
35111B
|
35111B
90119-10260 Bolt (For Transmission Housing & Engine Setting)[03.2017 -] URZ100 *10-1.25PX43-30,NO.1 |
90119-10260 |
from US $2.05 |
||
|
35111B
|
35111B
91619-61250 Bolt(For Transmission Case & Engine Setting)[03.2017 -] URZ100 *12-1.25PX50-30,NO.2 |
91619-61250 |
from US $1.90 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[03.2017 -] URZ100 NO.1 |
90301-06196 |
from US $2.36 |
||
|
35111Y
|
35111Y
90301-11030 Ring, O(For Oil Cooler Tube Union)[03.2017 -] URZ100 NO.2 |
90301-11030 |
from US $2.09 |
||
|
35111Y
|
35111Y
90301-15004 Ring, O(For Oil Cooler Tube Union)[03.2017 -] URZ100 NO.3 |
90301-15004 |
from US $1.52 |
||
|
35125C
|
35125C
35125-11020 Tube, Transmission Oil Filler, No.1[03.2017 -] URZ100 |
35125-11020 |
from US $2.18 |
||
|
35145C
|
35145C
35145-11020 Gasket, Transaxle Case[03.2017 -] URZ100 NO.1 |
35145-11020 |
US $4.27 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[03.2017 -] URZ100 NO.2 |
35145-60020 |
from US $6.45 |
||
|
35154
|
35154
35154-11010
Adapter, Transmission Case
[03.2017 -] URZ100 |
35154-11010 |
— | ||
|
35159
|
35159
35159-11010 Gasket, Brake Drum[03.2017 -] URZ100 |
35159-11010 |
US $8.30 |
||
|
35197B
|
35197B
35197-11010 Bracket, Heat Insulator, No.2[03.2017 -] URZ100 |
35197-11010 |
US $4.95 |
||
|
35394
|
35394
35394-11010 Magnet, Oil Cleaner (For Transmission)[03.2017 -] URZ100 |
35394-11010 |
US $4.66 |
||
|
35580B
|
35580B
35580-11010 Actuator Assy, Shift Control[03.2017 -] URZ100 |
35580-11010 |
US $725.09 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.63 |
||
|
9010510561
|
9010510561
90105-10561 New Genuine Part |
90105-10561 |
US $1.60 |
||
|
9030131018
|
9030131018
90301-31018 New Genuine Part |
90301-31018 |
US $2.18 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9155180822
|
9155180822
91551-80822 Bolt, Hexagon(For Steering Column Bracket) |
91551-80822 |
US $1.43 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
US $2.15 |
||
