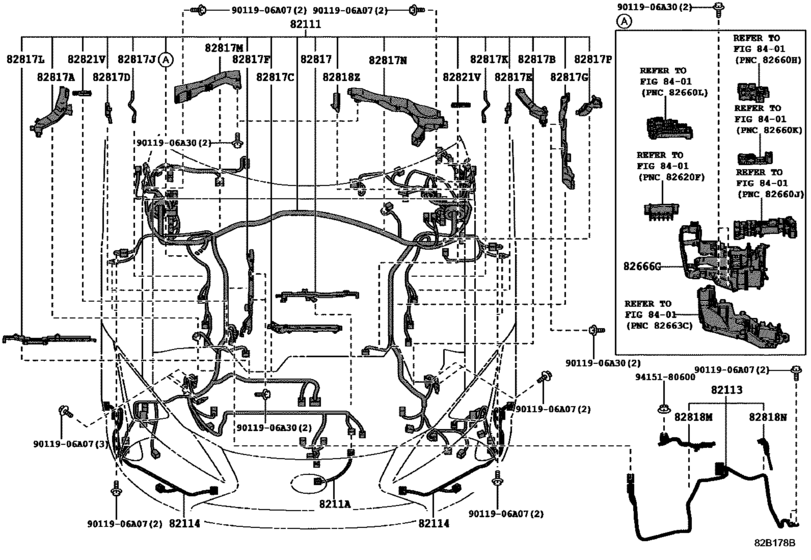

Wiring & Clamp ([03.2017 - ] ENGINE ROOM (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8211A
|
8211A
8211A-11010 Wire, Engine Room, No.6[01.2017 -] GWZ100,URZ100; GWZ100,URZ100 KOREA SPEC |
8211A-11010 |
US $11.42 |
||
|
82111
|
82111
82111-11010
Wire, Engine Room Main
[03.2017 -] URZ100 SPORT PACKAGE |
82111-11010 |
— | ||
|
82111
|
82111
82111-11340
Wire, Engine Room Main
[03.2017 -] URZ100; URZ100 CANADA SPEC&SPORT PACKAGE; URZ100 CANADA SPEC&SPORT PACKAGE&COLD AREA SPEC; URZ100 CANADA SPEC&SPORT PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH; URZ100 CANADA SPEC&SPORT PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH |
82111-11340 |
— | ||
|
82111
|
82111
82111-11490
Wire, Engine Room Main
[03.2017 -] URZ100 KOREA SPEC&SPORT PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH&LANE CHANGE AS SIST-WITH(*BSM); URZ100 KOREA SPEC&SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-WITH(*BSM); URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
82111-11490 |
— | ||
|
82113
|
82113
82113-11010
Wire, Engine Room, No.3
[03.2017 -] URZ100 |
82113-11010 |
— | ||
|
82114
|
82114
82114-11010
Wire, Engine Room, No.4
[01.2017 -] GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
82114-11010 |
— | ||
|
82114
|
82114
82114-11020 Wire, Engine Room, No.4[01.2017 -] GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
82114-11020 |
from US $24.02 |
||
|
82114
|
82114
82114-11040
Wire, Engine Room, No.4
[01.2017 -] GWZ100,URZ100 |
82114-11040 |
— | ||
|
82666G
|
82666G
82666-50770
Holder, Connector No.8
[03.2017 -] URZ100 |
82666-50770 |
— | ||
|
82817
|
82817
82817-11670 Protector, Wiring Harness, No.1[01.2017 -] GWZ100,URZ100 |
82817-11670 |
US $8.15 |
||
|
82817A
|
82817A
82817-11740 Protector, Wiring Harness, No.2[01.2017 -] GWZ100,URZ100 |
82817-11740 |
US $13.54 |
||
|
82817B
|
82817B
82817-11780 Protector, Wiring Harness, No.3[03.2017 -] URZ100 |
82817-11780 |
US $12.52 |
||
|
82817C
|
82817C
82817-11790 Protector, Wiring Harness, No.4[03.2017 -] URZ100 |
82817-11790 |
US $12.96 |
||
|
82817D
|
82817D
82817-50P80
Protector, Wiring Harness, No.5
[01.2017 -] GWZ100,URZ100 |
82817-50P80 |
— | ||
|
82817E
|
82817E
82817-50P90
Protector, Wiring Harness, No.6
[01.2017 -] GWZ100,URZ100 |
82817-50P90 |
— | ||
|
82817F
|
82817F
82817-50Q10 Protector, Wiring Harness, No.7[01.2017 -] GWZ100,URZ100 |
82817-50Q10 |
US $28.54 |
||
|
82817G
|
82817G
82817-50Q60 Protector, Wiring Harness, No.8[03.2017 -] URZ100 |
82817-50Q60 |
US $32.91 |
||
|
82817J
|
82817J
82817-50Z70
Protector, Wiring Harness, No.9
[01.2017 -] GWZ100,URZ100 |
82817-50Z70 |
— | ||
|
82817K
|
82817K
82817-50Z80
Protector, Wiring Harness, No.10
[01.2017 -] GWZ100,URZ100 |
82817-50Z80 |
— | ||
|
82817L
|
82817L
82817-11770
Protector, Wiring Harness, No.11
[03.2017 -] URZ100 |
82817-11770 |
— | ||
|
82817M
|
82817M
82817-50N50
Protector, Wiring Harness, No.12
[03.2017 -] URZ100 |
82817-50N50 |
— | ||
|
82817N
|
82817N
82817-5AA70
Protector, Wiring Harness, No.13
[03.2017 -] URZ100 |
82817-5AA70 |
— | ||
|
82817P
|
82817P
82817-5AD60
Protector, Wiring Harness, No.14
[01.2017 -] GWZ100,URZ100 |
82817-5AD60 |
— | ||
|
82818M
|
82818M
82817-50P40
Protector, Wiring Harness, No.13
[03.2017 -] URZ100 |
82817-50P40 |
— | ||
|
82818N
|
82818N
82817-5AE30 Protector, Wiring Harness, No.14[01.2017 -] GWZ100,URZ100 |
82817-5AE30 |
US $5.24 |
||
|
82818Z
|
82818Z
82817-12860 Protector, Wiring Harness, No.1[01.2017 -] GWZ100,URZ100 |
82817-12860 |
US $1.02 |
||
|
82821V
|
82821V
82821-11070 Cover, Connector[03.2017 -] URZ100 |
82821-11070 |
US $3.79 |
||
|
9011906A07
|
9011906A07
90119-06A07 New Genuine Part |
90119-06A07 |
US $1.08 |
||
|
9011906A30
|
9011906A30
90119-06A30 New Genuine Part |
90119-06A30 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
