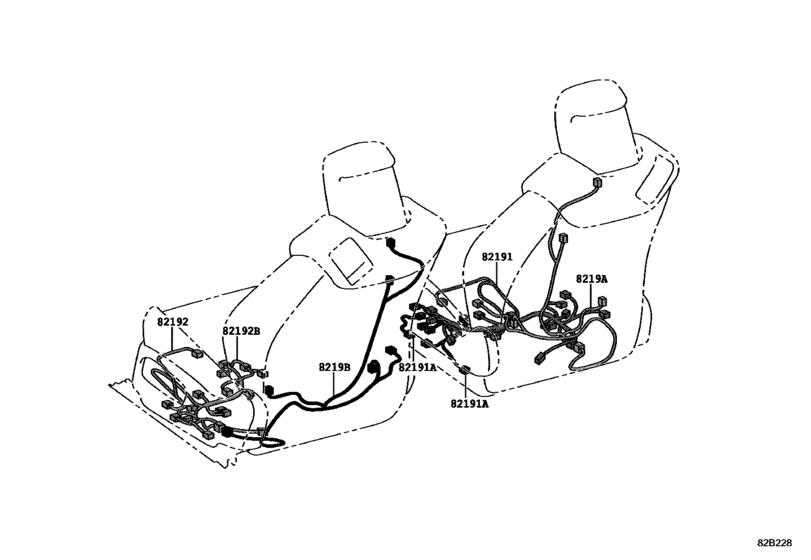

Wiring & Clamp ([01.2017 - ] SEAT (1701- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- U.S.A.
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8219A
|
8219A
8219A-11010 Wire, Front Seat, Rh No.2[01.2017 -] GWZ100,URZ100 |
8219A-11010 |
US $62.46 |
||
|
8219A
|
8219A
8219A-11020 Wire, Front Seat, Rh No.2[01.2017 -] GWZ100,URZ100 KOREA SPEC&SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 KOREA SPEC&SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,U |
8219A-11020 |
US $43.24 |
||
|
8219A
|
8219A
8219A-11030
Wire, Front Seat, Rh No.2
[01.2017 -] GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O; GWZ100,URZ100 SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O |
8219A-11030 |
— | ||
|
8219B
|
8219B
8219B-11010 Wire, Front Seat, Lh No.2[01.2017 -] GWZ100,URZ100 |
8219B-11010 |
US $62.46 |
||
|
8219B
|
8219B
8219B-11020 Wire, Front Seat, Lh No.2[01.2017 -] GWZ100,URZ100 KOREA SPEC&SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 KOREA SPEC&SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,U |
8219B-11020 |
US $43.24 |
||
|
8219B
|
8219B
8219B-11030
Wire, Front Seat, Lh No.2
[01.2017 -] GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O; GWZ100,URZ100 SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O |
8219B-11030 |
— | ||
|
82191
|
82191
82191-11010
Wire, Front Seat, Rh
[01.2017 -] GWZ100,URZ100 |
82191-11010 |
— | ||
|
82191
|
82191
82191-11040
Wire, Front Seat, Rh
[01.2017 -] GWZ100,URZ100 KOREA SPEC&SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 KOREA SPEC&SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,U |
82191-11040 |
— | ||
|
82191
|
82191
82191-11080
Wire, Front Seat, Rh
[01.2017 -] GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O; GWZ100,URZ100 SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O |
82191-11080 |
— | ||
|
82191A
|
82191A
82191-11030
Wire, Front Seat, Rh
[01.2017 -] GWZ100,URZ100 |
82191-11030 |
— | ||
|
82192
|
82192
82192-11010
Wire, Front Seat, Lh
[01.2017 -] GWZ100,URZ100 |
82192-11010 |
— | ||
|
82192
|
82192
82192-11040
Wire, Front Seat, Lh
[01.2017 -] GWZ100,URZ100 KOREA SPEC&SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 KOREA SPEC&SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE); GWZ100,U |
82192-11040 |
— | ||
|
82192
|
82192
82192-11070
Wire, Front Seat, Lh
[01.2017 -] GWZ100,URZ100 SPORT PACKAGE&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O; GWZ100,URZ100 SPORT PLUS&SEAT COVER MATERIAL-ALCANTARA(*DRP & *RSE)&SEAT HEATER-W/O |
82192-11070 |
— | ||
|
82192B
|
82192B
82192-11080 Wire, Rear Seat, Lh[01.2017 -] GWZ100,URZ100 |
82192-11080 |
US $7.54 |
