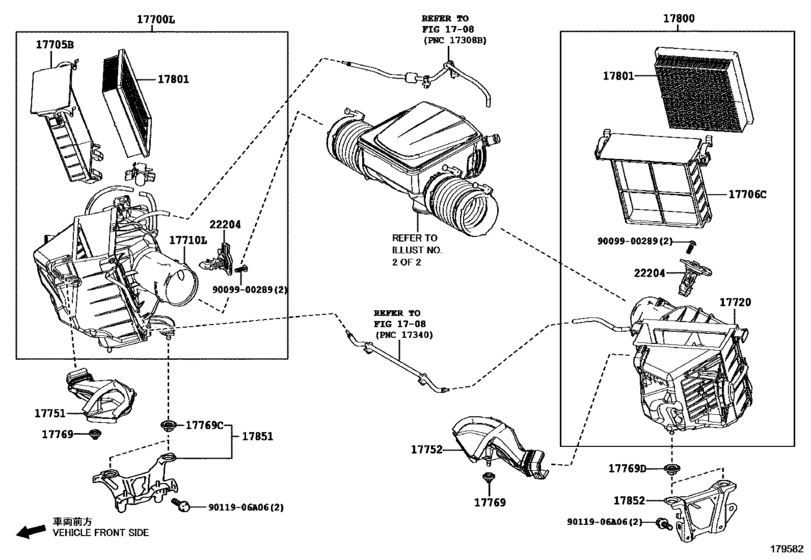

Air Cleaner ([03.2017 - ] AIR CLEANER CASE (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700L
|
17700L
17700-38260 Cleaner Assy, Air W/element, Rh[03.2017 -] 2URGSE..URZ100 |
17700-38260 |
US $286.19 |
||
|
17705B
|
17705B
17705-38190
Cap Sub-Assy, Air Cleaner Rh
[03.2017 -] 2URGSE..URZ100 |
17705-38190 |
— | ||
|
17706C
|
17706C
17705-38190
Cap Sub-Assy, Air Cleaner Rh
[03.2017 -] 2URGSE..URZ100 |
17705-38190 |
— | ||
|
17710L
|
17710L
17710-38110
Cleaner Assy, Air W/o Element, Rh
[03.2017 -] 2URGSE..URZ100 |
17710-38110 |
— | ||
|
17720
|
17720
17720-38020
Cleaner Assy, Air W/o Element, Lh
[03.2017 -] 2URGSE..URZ100 |
17720-38020 |
— | ||
|
17751
|
17751
17751-38130 Inlet, Air Cleaner, No.1[03.2017 -] 2URGSE..URZ100 |
17751-38130 |
US $30.14 |
||
|
17752
|
17752
17752-38020 Inlet, Air Cleaner, No.2[03.2017 -] 2URGSE..URZ100 |
17752-38020 |
from US $30.14 |
||
|
17769
|
17769
17769-38030 Support, Air Cleaner[03.2017 -] 2URGSE..URZ100 |
17769-38030 |
US $1.31 |
||
|
17769C
|
17769C
17769-38020
Support, Air Cleaner
[03.2017 -] 2URGSE..URZ100 |
17769-38020 |
— | ||
| replacement | |||||
|
17769C
|
17769C
17769-25010 Support, Air Cleaner[03.2017 -] 2URGSE..URZ100 |
17769-25010 |
US $3.05 |
||
|
17769D
|
17769D
17769-38020
Support, Air Cleaner
[03.2017 -] 2URGSE..URZ100 |
17769-38020 |
— | ||
| replacement | |||||
|
17769D
|
17769D
17769-25010 Support, Air Cleaner[03.2017 -] 2URGSE..URZ100 |
17769-25010 |
US $3.05 |
||
|
17800
|
17800
17800-38040 Cleaner Assy, Air W/element, Lh[03.2017 -] 2URGSE..URZ100 |
17800-38040 |
US $211.12 |
||
|
17801
|
17801
17801-38060 Element Sub-Assy, Air Cleaner Filter[03.2017 -] 2URGSE..URZ100 |
17801-38060 |
from US $56.28 |
||
|
17851
|
17851
17850-38010 Bracket, Air Cleaner Support[03.2017 -] 8GRFXS..GWZ100; 2URGSE..URZ100 |
17850-38010 |
US $19.66 |
||
|
17852
|
17852
17851-38030 Bracket, Air Creaner Support, No.2[03.2017 -] 2URGSE..URZ100 |
17851-38030 |
US $12.16 |
||
|
22204
|
22204
22204-75040 Meter Sub-Assy, Intake Air Flow[03.2017 -] 2URGSE..URZ100 |
22204-75040 |
from US $134.44 |
||
|
9011906A06
|
9011906A06
90119-06A06 BOLT WWASHER |
90119-06A06 |
US $1.08 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.65 |
||
