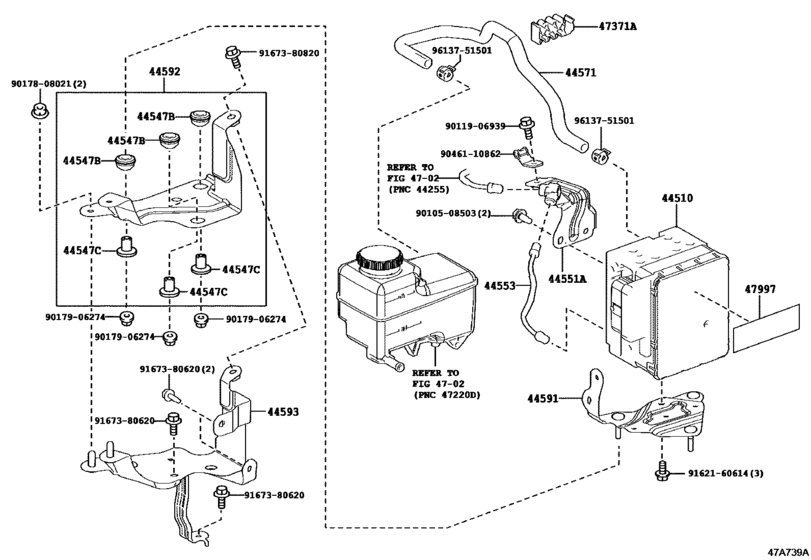

Brake Tube & Clamp ([03.2017 - ] BRAKE ACTUATOR (1703- )LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44510
|
44510
44050-11010
Actuator Assy, Brake
[03.2017 -] GWZ100,URZ100..LHD |
44050-11010 |
— | ||
|
44547B
|
44547B
44547-50120 Cushion, Brake Actuator Bracket[03.2017 -] GWZ100,URZ100 |
44547-50120 |
US $1.46 |
||
|
44547C
|
44547C
90561-08061 Spacer(For Brake Actuator Bracket)[03.2017 -] GWZ100,URZ100 |
90561-08061 |
US $1.16 |
||
|
44551A
|
44551A
90412-10312
Way, No.1(For Brake Actuator)
[03.2017 -] GWZ100,URZ100..LHD |
90412-10312 |
— | ||
|
44553
|
44553
44553-11010
Tube, Brake Actuator, No.3
[03.2017 -] GWZ100,URZ100..LHD |
44553-11010 |
— | ||
|
44571
|
44571
44571-11010
Hose, Brake Actuator
[03.2017 -] GWZ100,URZ100..LHD |
44571-11010 |
— | ||
|
44591
|
44591
44591-11010
Bracket, Brake Actuator, No.1
[03.2017 -] GWZ100,URZ100..LHD |
44591-11010 |
— | ||
|
44592
|
44592
44592-11010
Bracket, Brake Actuator, No.2
[03.2017 -] GWZ100,URZ100..LHD |
44592-11010 |
— | ||
|
44593
|
44593
44593-11010
Bracket, Brake Actuator, No.3
[03.2017 -] GWZ100,URZ100..LHD |
44593-11010 |
— | ||
|
47371A
|
47371A
47371-11010 Clamp, Brake Tube, No.1[03.2017 -] GWZ100,URZ100 |
47371-11010 |
US $2.48 |
||
|
47997
|
47997
47997-48010 Label, Brake Booster Accumlator Caution, No.1[03.2017 -] GWZ100,URZ100 |
47997-48010 |
US $2.15 |
||
|
9010508503
|
9010508503
90105-08503 New Genuine Part |
90105-08503 |
US $1.02 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
from US $0.63 |
||
|
9017808021
|
9017808021
90178-08021 New Genuine Part |
90178-08021 |
US $1.79 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046110862
|
9046110862
90461-10862 New Genuine Part |
90461-10862 |
US $1.60 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $1.08 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.82 |
||
|
9613751501
|
9613751501
96137-51501 Clip(For Water By-Pass Hose Assy) |
96137-51501 |
US $2.15 |
