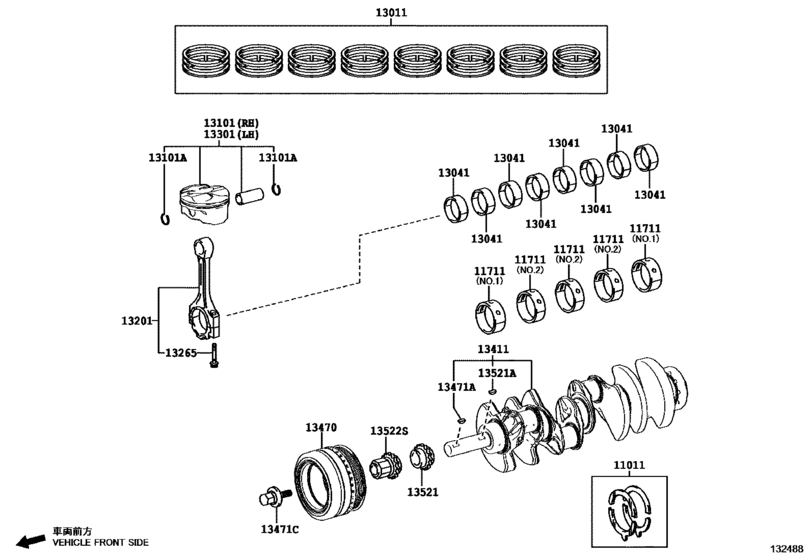

Crankshaft & Piston ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-38050 Washer Set, Crankshaft Thrust[03.2017 -] 2URGSE..URZ100 STD |
11011-38050 |
from US $26.04 |
||
|
11711
|
11711
11071-38020-C4 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
11071-38020-C4 |
US $46.03 |
||
|
11711
|
11711
11071-38020-D4 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
11071-38020-D4 |
US $46.03 |
||
|
11711
|
11711
11071-38020-D5 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
11071-38020-D5 |
US $46.03 |
||
|
11711
|
11711
11071-38020-E5 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
11071-38020-E5 |
US $46.03 |
||
|
11711
|
11711
11071-38020-E6 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 5 LOWER 6,NO.2,REFER R/M |
11071-38020-E6 |
US $46.03 |
||
|
11711
|
11711
11071-38020-F6 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 6 LOWER 6,NO.2,REFER R/M |
11071-38020-F6 |
US $46.03 |
||
|
11711
|
11711
11071-38020-F7 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 6 LOWER 7,NO.2,REFER R/M |
11071-38020-F7 |
US $46.03 |
||
|
11711
|
11711
11071-38020-G7 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 7 LOWER 7,NO.2,REFER R/M |
11071-38020-G7 |
US $46.03 |
||
|
11711
|
11711
11071-38020-G8 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 7 LOWER 8,NO.2,REFER R/M |
11071-38020-G8 |
US $46.03 |
||
|
11711
|
11711
11071-38020-H8 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 8 LOWER 8,NO.2,REFER R/M |
11071-38020-H8 |
US $46.03 |
||
|
11711
|
11711
11072-38020-D5 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
11072-38020-D5 |
US $48.55 |
||
|
11711
|
11711
11072-38020-E5 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
11072-38020-E5 |
US $48.55 |
||
|
11711
|
11711
11072-38020-E6 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 5 LOWER 6,NO.1,REFER R/M |
11072-38020-E6 |
US $48.55 |
||
|
11711
|
11711
11072-38020-F6 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 6 LOWER 6,NO.1,REFER R/M |
11072-38020-F6 |
US $48.55 |
||
|
11711
|
11711
11072-38020-F7 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 6 LOWER 7,NO.1,REFER R/M |
11072-38020-F7 |
US $48.55 |
||
|
11711
|
11711
11072-38020-G7 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 7 LOWER 7,NO.1,REFER R/M |
11072-38020-G7 |
US $48.55 |
||
|
11711
|
11711
11072-38020-G8 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 7 LOWER 8,NO.1,REFER R/M |
11072-38020-G8 |
US $48.55 |
||
|
11711
|
11711
11072-38020-H8 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 8 LOWER 8,NO.1,REFER R/M |
11072-38020-H8 |
US $48.55 |
||
|
11711
|
11711
11072-38020-H9 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 8 LOWER 9,NO.1,REFER R/M |
11072-38020-H9 |
US $48.55 |
||
|
11711
|
11711
11072-38020-K9 Bearing, Crankshaft[03.2017 -] 2URGSE..URZ100 MARK UPPER 9 LOWER 9,NO.1,REFER R/M |
11072-38020-K9 |
US $48.55 |
||
|
13011
|
13011
13011-38140 Ring Set, Piston[03.2017 -] 2URGSE..URZ100 STD |
13011-38140 |
US $294.11 |
||
|
13041
|
13041
13041-38100-02 Bearing, Connecting Rod[03.2017 -] 2URGSE..URZ100 MARK 2,REFER REPAIR MANUAL |
13041-38100-02 |
US $25.03 |
||
|
13041
|
13041
13041-38100-03 Bearing, Connecting Rod[03.2017 -] 2URGSE..URZ100 MARK 3,REFER REPAIR MANUAL |
13041-38100-03 |
from US $19.08 |
||
|
13041
|
13041
13041-38100-04 Bearing, Connecting Rod[03.2017 -] 2URGSE..URZ100 MARK 4,REFER REPAIR MANUAL |
13041-38100-04 |
US $25.03 |
||
|
13041
|
13041
13041-38100-05 Bearing, Connecting Rod[03.2017 -] 2URGSE..URZ100 MARK 5,REFER REPAIR MANUAL |
13041-38100-05 |
US $25.03 |
||
|
13041
|
13041
13041-38100-06 Bearing, Connecting Rod[03.2017 -] 2URGSE..URZ100 MARK 6,REFER REPAIR MANUAL |
13041-38100-06 |
US $25.03 |
||
|
13041
|
13041
13041-38100-07 Bearing, Connecting Rod[03.2017 -] 2URGSE..URZ100 MARK 7,REFER REPAIR MANUAL |
13041-38100-07 |
US $25.03 |
||
|
13101
|
13101
13101-38150 Piston Sub-Assy, W/pin[03.2017 -] 2URGSE..URZ100 STD |
13101-38150 |
from US $62.47 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[03.2017 -] 2URGSE..URZ100 |
90520-22025 |
from US $1.90 |
||
|
13201
|
13201
13201-38050 Rod Sub-Assy, Connecting[03.2017 -] 2URGSE..URZ100 |
13201-38050 |
US $144.14 |
||
|
13265
|
13265
13265-31020 Bolt, Connecting Rod[03.2017 -] 2URGSE..URZ100 |
13265-31020 |
from US $3.06 |
||
|
13301
|
13301
13301-38030 Piston Sub-Assy, W/pin, Lh[03.2017 -] 2URGSE..URZ100 STD |
13301-38030 |
US $63.77 |
||
|
13411
|
13411
13401-38040 Crankshaft[03.2017 -] 2URGSE..URZ100 |
13401-38040 |
US $2,664.48 |
||
|
13470
|
13470
13470-38070 Pulley Assy, Crankshaft[03.2017 -] 2URGSE..URZ100 |
13470-38070 |
US $182.41 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[03.2017 -] 2URGSE..URZ100 |
95161-30516 |
from US $1.06 |
||
|
13471C
|
13471C
90119-18003 Bolt(For Crankshaft Pulley Set)[03.2017 -] 2URGSE..URZ100 |
90119-18003 |
from US $4.45 |
||
|
13521
|
13521
13521-38030 Gear Or Sprocket, Crankshaft Timing[03.2017 -] 2URGSE..URZ100 |
13521-38030 |
from US $24.80 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[03.2017 -] 2URGSE..URZ100 |
95161-30516 |
from US $1.06 |
||
|
13522S
|
13522S
13522-38030 Sprocket, Crankshaft Timing, Lh[03.2017 -] 2URGSE..URZ100 |
13522-38030 |
from US $47.06 |
