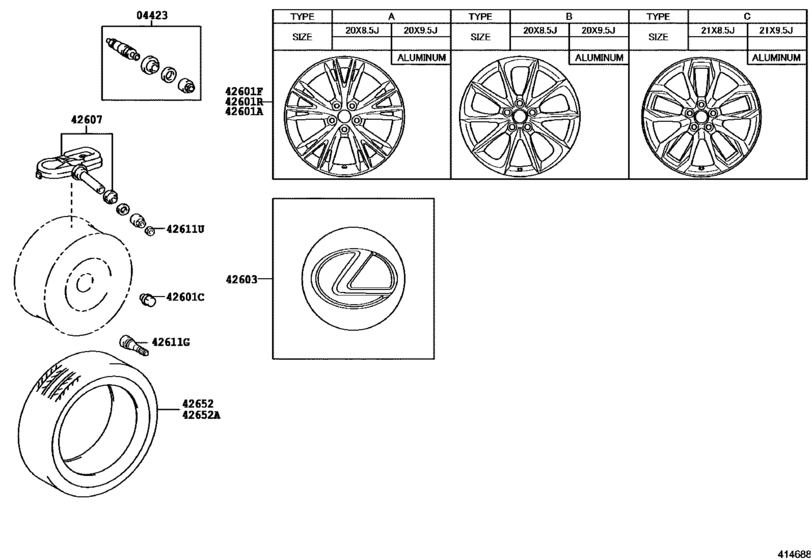

Disc Wheel & Wheel Cap ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-33060 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[03.2017 -] GWZ100,URZ100 |
04423-33060 |
from US $4.35 |
||
|
42601C
|
42601C
90942-01111 Nut[03.2017 -] GWZ100,URZ100 TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,DARK CHROME PLATED |
90942-01111 |
from US $8.30 |
||
|
42601C
|
42601C
90942-01118 Nut (BLACK CHROME PLATED)BLACK [03.2017 -] GWZ100,URZ100 CHROME PLATED |
90942-01118 |
US $12.90 |
||
|
42601F
|
42601F
42611-11040 Wheel, Disc[03.2017 -] GWZ100,URZ100 20X8.5J,TYPE A:REFER ILLUST. |
42611-11040 |
US $965.33 |
||
|
42601F
|
42601F
42611-11090 Wheel, Disc (For Front)[03.2017 -] GWZ100,URZ100..GEN 21X8.5J,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED,TYPE C:REFER ILLUST.; GWZ100,URZ100..GEN 21X8.5J,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED, TYPE C:REFER ILLUST.; GWZ100,U |
42611-11090 |
US $2,970.24 |
||
|
42601F
|
42601F
42611-11120 Wheel, Disc (For Front)[03.2017 -] GWZ100,URZ100..GEN 20X8.5J,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,TYPE B:REFER ILLUST.; GWZ100,URZ100..GEN 20X8.5J,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,T YPE B:REFER ILLUST.; GWZ100,URZ |
42611-11120 |
US $2,766.40 |
||
|
42601R
|
42601R
42611-11060 Wheel, Disc (For Rear)[03.2017 -] GWZ100,URZ100 20X9.5J,TYPE A:REFER ILLUST. |
42611-11060 |
US $982.80 |
||
|
42601R
|
42601R
42611-11110 Wheel, Disc (For Rear)[03.2017 -] GWZ100,URZ100..GEN 21X9.5J,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED,TYPE C:REFER ILLUST.; GWZ100,URZ100..GEN 21X9.5J,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED, TYPE C:REFER ILLUST.; GWZ100,U |
42611-11110 |
US $2,999.36 |
||
|
42601R
|
42601R
42611-11130 Wheel, Disc (For Rear)[03.2017 -] GWZ100,URZ100..GEN 20X9.5J,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,TYPE B:REFER ILLUST.; GWZ100,URZ100..GEN 20X9.5J,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED,T YPE B:REFER ILLUST.; GWZ100,URZ |
42611-11130 |
US $2,795.52 |
||
|
42603
|
42603
42603-53110 Ornament Sub-Assy, Wheel Hub[03.2017 -] GWZ100,URZ100 *ALU |
42603-53110 |
from US $22.51 |
||
|
42607
|
42607
42607-48020 Valve Sub-Assy, Tire Pressure Monitor[03.2017 -] GWZ100,URZ100..ARL,GCC; GWZ100,URZ100..GEN PHILIPPINE SPEC; GWZ100,URZ100..GEN PHILIPPINE SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 FORGED; GWZ100,URZ100..GEN PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN M |
42607-48020 |
from US $82.84 |
||
|
42611U
|
42611U
90942-05042 Cap, Tire Valve[03.2017 -] GWZ100,URZ100 |
90942-05042 |
from US $1.61 |
||
|
42652
|
42652
42652-11010
Tire
[03.2017 -] GWZ100,URZ100..GEN 245/40RF21,*B/S,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN 245/40RF21,*B/S,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN 245/40RF21,*B/S, |
42652-11010 |
— | ||
|
42652
|
42652
42652-11020
Tire
[03.2017 -] GWZ100,URZ100..GEN 275/35RF21,*B/S,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN 275/35RF21,*B/S,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN 275/35RF21,*B/S, |
42652-11020 |
— | ||
|
42652
|
42652
42652-11050
Tire
[03.2017 -] GWZ100,URZ100..GEN 245/40RF21,MICHELIN,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN 245/40RF21,MICHELIN,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/40R & 275/35 RF21 FORGED; GWZ100,URZ100..GEN 245/40R |
42652-11050 |
— | ||
|
42652
|
42652
42652-11060
Tire
[03.2017 -] GWZ100,URZ100..GEN 275/35RF21,MICHELIN,PHILIPPINE SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED; GWZ100,URZ100..GEN 275/35RF21,MICHELIN,MIDDLE & SOUTH AMERICA SPEC&TIRE & DISK WHEEL-245/40R & 275/35 RF21 FORGED; GWZ100,URZ100..GEN 275/35R |
42652-11060 |
— | ||
|
42652
|
42652
42652-11070
Tire
[03.2017 -] GWZ100,URZ100 245/45RF20,*B/S |
42652-11070 |
— | ||
|
42652
|
42652
42652-11080
Tire
[03.2017 -] GWZ100,URZ100 275/40RF20,*B/S |
42652-11080 |
— |
