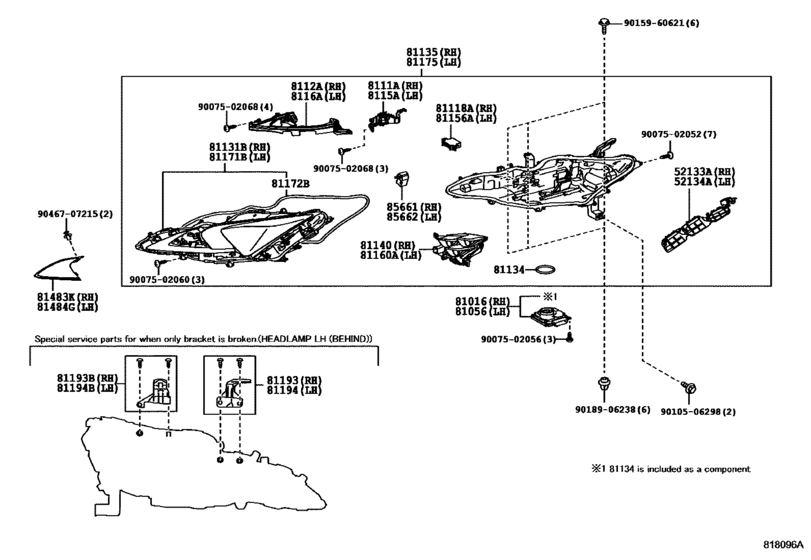

Headlamp ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8111A
|
8111A
8111A-11030 Unit, Headlamp Cornering Led, Rh[03.2017 -] GWZ100,URZ100 |
8111A-11030 |
US $235.87 |
||
|
8112A
|
8112A
8112A-11030 Unit, Headlamp Clearance Led, No.1 Rh[03.2017 -] GWZ100,URZ100 |
8112A-11030 |
US $358.18 |
||
|
8115A
|
8115A
8115A-11030 Unit, Headlamp Cornering Led, Lh[03.2017 -] GWZ100,URZ100 |
8115A-11030 |
US $235.87 |
||
|
8116A
|
8116A
8116A-11030 Unit, Headlamp Clearance Led, No.1 Lh[03.2017 -] GWZ100,URZ100 |
8116A-11030 |
US $358.18 |
||
|
52133A
|
52133A
52133-11020 Bracket, Front Bumper, Rh[03.2017 -] GWZ100,URZ100 |
52133-11020 |
US $31.75 |
||
|
52134A
|
52134A
52134-11030 Bracket, Front Bumper, Lh[03.2017 -] GWZ100,URZ100 |
52134-11030 |
US $31.75 |
||
|
81016
|
81016
81016-11050 Computer Sub-Assy, Headlamp, Rh No.1[03.2017 -] GWZ100,URZ100 |
81016-11050 |
US $306.63 |
||
|
81056
|
81056
81056-11050 Computer Sub-Assy, Headlamp, Lh No.1[03.2017 -] GWZ100,URZ100 |
81056-11050 |
US $306.63 |
||
|
81118A
|
81118A
81118-11030 Bracket, Headlamp, Rh[03.2017 -] GWZ100,URZ100 |
81118-11030 |
from US $13.10 |
||
|
81131B
|
81131B
81131-11030
Head Lamp Lens, Rh
[03.2017 -] GWZ100,URZ100..LHD |
81131-11030 |
— | ||
|
81134
|
81134
90075-23003 Gasket, Headlamp[03.2017 -] GWZ100,URZ100 |
90075-23003 |
from US $2.09 |
||
|
81135
|
81135
81145-11030
Unit Assy, Headlamp, Rh
[03.2017 -] GWZ100,URZ100..LHD |
81145-11030 |
— | ||
| replacement | |||||
|
81135
|
81135
81145-11031
UNIT HEADLAMP
[03.2017 -] GWZ100,URZ100..LHD |
81145-11031 |
— | ||
|
81140
|
81140
81140-11030
Unit Assy, Headlamp Led, Rh
[03.2017 -] GWZ100,URZ100..LHD |
81140-11030 |
— | ||
|
81156A
|
81156A
81118-11030 Bracket, Headlamp, Rh[03.2017 -] GWZ100,URZ100 |
81118-11030 |
from US $13.10 |
||
|
81160A
|
81160A
81160-11030
Unit Assy, Headlamp Led, Lh
[03.2017 -] GWZ100,URZ100..LHD |
81160-11030 |
— | ||
|
81171B
|
81171B
81171-11030
Head Lamp Lens, Lh
[03.2017 -] GWZ100,URZ100..LHD |
81171-11030 |
— | ||
|
81172B
|
81172B
81132-48C30 Gasket, Headlamp Lens[03.2017 -] GWZ100,URZ100 |
81132-48C30 |
from US $37.46 |
||
|
81175
|
81175
81185-11030
Unit Assy, Headlamp, Lh
[03.2017 -] GWZ100,URZ100..LHD |
81185-11030 |
— | ||
| replacement | |||||
|
81175
|
81175
81185-11031 UNIT HEADLAMP[03.2017 -] GWZ100,URZ100..LHD |
81185-11031 |
US $4,405.61 |
||
|
81193
|
81193
81193-11010 Retainer, Headlamp Protector, Upper Rh[03.2017 -] GWZ100,URZ100 |
81193-11010 |
from US $8.95 |
||
|
81193B
|
81193B
81193-11020 Retainer, Headlamp Protector, Upper Rh No.2[03.2017 -] GWZ100,URZ100 |
81193-11020 |
US $8.95 |
||
|
81194
|
81194
81194-11010 Retainer, Headlamp Protector, Upper Lh[03.2017 -] GWZ100,URZ100 |
81194-11010 |
US $8.95 |
||
|
81194B
|
81194B
81194-11020 Retainer, Headlamp Protector, Upper Lh No.2[03.2017 -] GWZ100,URZ100 |
81194-11020 |
US $8.95 |
||
|
81483K
|
81483K
81483-11010-A0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 WHITE NOVA GF.,083 |
81483-11010-A0 |
US $21.34 |
||
|
81483K
|
81483K
81483-11010-B0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 DK.GRAY MC.,1G0 |
81483-11010-B0 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-B1 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 SONIC SILVER,1J2 |
81483-11010-B1 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-B2 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 SONIC TITANIUM,1J7 |
81483-11010-B2 |
US $19.25 |
||
|
81483K
|
81483K
81483-11010-C0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 BLACK,212 |
81483-11010-C0 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-C1 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
81483-11010-C1 |
US $21.34 |
||
|
81483K
|
81483K
81483-11010-D0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 GARNET RED MC.,3S0 |
81483-11010-D0 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-D1 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
81483-11010-D1 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-E0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 AMBER CS.,4X2 |
81483-11010-E0 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-F0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 NAPLES YELLOW,5C1 |
81483-11010-F0 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-J0 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 DEEP BLUE MC.,8X5 |
81483-11010-J0 |
US $18.49 |
||
|
81483K
|
81483K
81483-11010-J1 Cover, Daytime Running Lamp, Rh[03.2017 -] GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
81483-11010-J1 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-A0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 WHITE NOVA GF.,083 |
81484-11010-A0 |
US $21.34 |
||
|
81484G
|
81484G
81484-11010-B0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 DK.GRAY MC.,1G0 |
81484-11010-B0 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-B1 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 SONIC SILVER,1J2 |
81484-11010-B1 |
US $15.43 |
||
|
81484G
|
81484G
81484-11010-B2 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 SONIC TITANIUM,1J7 |
81484-11010-B2 |
US $19.25 |
||
|
81484G
|
81484G
81484-11010-C0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 BLACK,212 |
81484-11010-C0 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-C1 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
81484-11010-C1 |
US $21.34 |
||
|
81484G
|
81484G
81484-11010-D0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 GARNET RED MC.,3S0 |
81484-11010-D0 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-D1 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
81484-11010-D1 |
from US $16.46 |
||
|
81484G
|
81484G
81484-11010-E0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 AMBER CS.,4X2 |
81484-11010-E0 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-F0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 NAPLES YELLOW,5C1 |
81484-11010-F0 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-J0 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 DEEP BLUE MC.,8X5 |
81484-11010-J0 |
US $18.49 |
||
|
81484G
|
81484G
81484-11010-J1 Cover, Daytime Running Lamp, Lh[03.2017 -] GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
81484-11010-J1 |
US $18.49 |
||
|
85661
|
85661
85661-48050 Motor, Headlamp Leveling, Rh[03.2017 -] GWZ100,URZ100 |
85661-48050 |
US $141.23 |
||
|
85662
|
85662
85661-48050 Motor, Headlamp Leveling, Rh[03.2017 -] GWZ100,URZ100 |
85661-48050 |
US $141.23 |
||
|
9007502052
|
9007502052
90075-02052 SCREW |
90075-02052 |
US $1.08 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.59 |
||
|
9007502060
|
9007502060
90075-02060 Screw, Headlamp |
90075-02060 |
US $1.08 |
||
|
9007502068
|
9007502068
90075-02068 New Genuine Part |
90075-02068 |
US $0.73 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9015960621
|
9015960621
90159-60621 SCREW, W/WASHER |
90159-60621 |
from US $0.51 |
||
|
9018906238
|
9018906238
90189-06238 GROMMET SCREW |
90189-06238 |
from US $0.84 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.82 |
||
