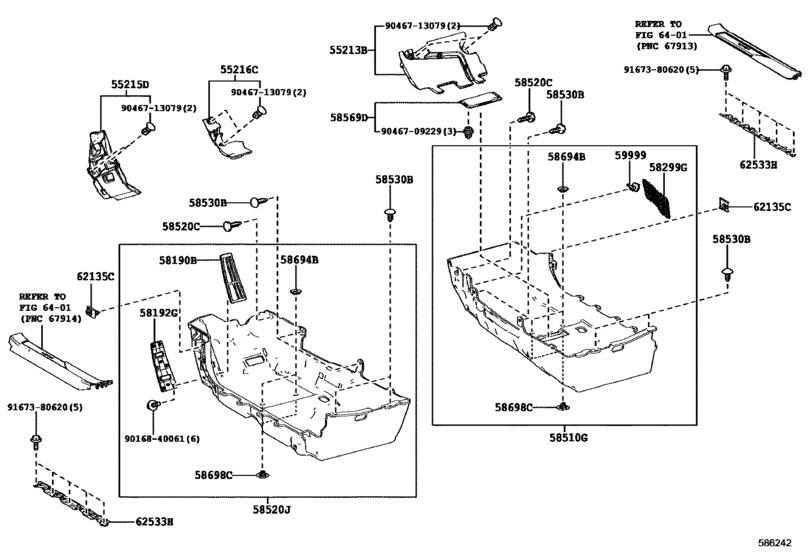

Mat & Carpet ([03.2017 - ] (1703- )URZ100..LHD) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55213B
|
55213B
55213-11010
Pad, Dash Panel Insulator, No.1
[03.2017 -] GWZ100,URZ100..LHD |
55213-11010 |
— | ||
|
55215D
|
55215D
55215-11010
Pad, Dash Panel Insulator, No.3
[03.2017 -] GWZ100,URZ100..LHD |
55215-11010 |
— | ||
|
55216C
|
55216C
55216-11010
Pad, Dash Panel Insulator, No.4
[03.2017 -] GWZ100,URZ100..LHD |
55216-11010 |
— | ||
|
58190B
|
58190B
58190-11010
Rest Assy, Front Floor Foot
[03.2017 -] GWZ100,URZ100..LHD |
58190-11010 |
— | ||
|
58192G
|
58192G
58192-11010
Panel, Footrest, No.2
[03.2017 -] GWZ100,URZ100..LHD |
58192-11010 |
— | ||
|
58299G
|
58299G
58299-11010-C1 Net, Baggage Holder[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
58299-11010-C1 |
US $15.87 |
||
|
58299G
|
58299G
58299-11010-E2 Net, Baggage Holder[03.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
58299-11010-E2 |
US $15.87 |
||
|
58299G
|
58299G
58299-11010-J1 Net, Baggage Holder[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
58299-11010-J1 |
US $15.87 |
||
|
58510G
|
58510G
58510-11040-C4
Carpet Assy, Floor, Front Rh
[03.2017 -] URZ100..LHD BLACK,TRIM2#,3# |
58510-11040-C4 |
— | ||
|
58510G
|
58510G
58510-11040-E3
Carpet Assy, Floor, Front Rh
[03.2017 -] URZ100..LHD OCHRE,TRIM4# |
58510-11040-E3 |
— | ||
|
58510G
|
58510G
58510-11040-J2
Carpet Assy, Floor, Front Rh
[03.2017 -] URZ100..LHD BLUE,TRIM8# |
58510-11040-J2 |
— | ||
|
58520C
|
58520C
90467-07049-23 Clip(For Front Floor Mat)[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
90467-07049-23 |
from US $0.76 |
||
|
58520C
|
58520C
90467-07049-J4 Clip(For Front Floor Carpet)[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
90467-07049-J4 |
US $1.16 |
||
|
58520C
|
58520C
90467-07049-L4 Clip(For Front Floor Carpet)[03.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
90467-07049-L4 |
from US $0.97 |
||
|
58520J
|
58520J
58520-11020-C1
Carpet Assy, Floor, Front Lh
[03.2017 -] URZ100..LHD BLACK,TRIM2#,3# |
58520-11020-C1 |
— | ||
|
58520J
|
58520J
58520-11020-E0
Carpet Assy, Floor, Front Lh
[03.2017 -] URZ100..LHD OCHRE,TRIM4# |
58520-11020-E0 |
— | ||
|
58520J
|
58520J
58520-11020-J0
Carpet Assy, Floor, Front Lh
[03.2017 -] URZ100..LHD BLUE,TRIM8# |
58520-11020-J0 |
— | ||
|
58530B
|
58530B
63399-26050-B0 Clip[03.2017 -] GWZ100,URZ100 LT.GRAY |
63399-26050-B0 |
from US $1.12 |
||
|
58569D
|
58569D
58569-11010-C1 Cover, Front Floor Caution Plate[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
58569-11010-C1 |
US $64.65 |
||
|
58569D
|
58569D
58569-11010-E0 Cover, Front Floor Caution Plate[03.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
58569-11010-E0 |
US $64.65 |
||
|
58569D
|
58569D
58569-11010-J0 Cover, Front Floor Caution Plate[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
58569-11010-J0 |
US $64.65 |
||
|
58694B
|
58694B
58694-78010 Plate, Mat Set, Upper[03.2017 -] GWZ100,URZ100 |
58694-78010 |
from US $1.63 |
||
|
58698C
|
58698C
58698-78010 Plate, Mat Set, Lower[03.2017 -] GWZ100,URZ100 |
58698-78010 |
from US $3.84 |
||
|
59999
|
59999
59999-24010-C4 Clamp(For Floor Mat)[03.2017 -] GWZ100,URZ100 BLACK,TRIM2#,3# |
59999-24010-C4 |
US $2.04 |
||
|
59999
|
59999
59999-24010-E3 Clamp(For Floor Mat)[03.2017 -] GWZ100,URZ100 OCHRE,TRIM4# |
59999-24010-E3 |
US $2.04 |
||
|
59999
|
59999
59999-24010-J1 Clamp(For Floor Mat)[03.2017 -] GWZ100,URZ100 BLUE,TRIM8# |
59999-24010-J1 |
US $2.04 |
||
|
62135C
|
62135C
62135-30020 Retainer, Floor Carpet[03.2017 -] GWZ100,URZ100 |
62135-30020 |
US $3.23 |
||
|
62533H
|
62533H
62533-11010 Bracket, Side Trim, No.1[03.2017 -] GWZ100,URZ100; GWZ100,URZ100 SPORT PACKAGE; GWZ100,URZ100 SPORT PLUS; GWZ100,URZ100 DOOR SCUFF PLATE-WITH(CFRP) |
62533-11010 |
US $31.45 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.74 |
||
|
9046709229
|
9046709229
90467-09229 Clip(For Scuff Plate) |
90467-09229 |
US $1.43 |
||
|
9046713079
|
9046713079
90467-13079 Clip |
90467-13079 |
US $2.15 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $1.08 |
