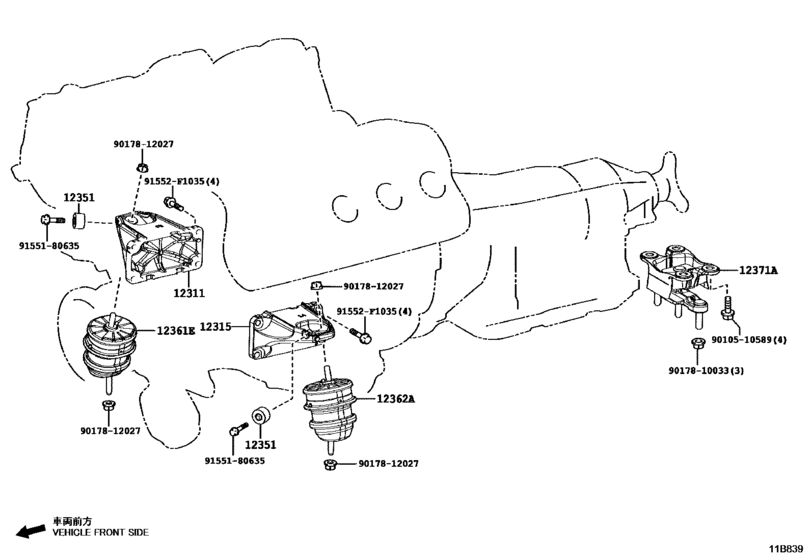

Mounting ([03.2017 - ] (1703- )2URGSE) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-38050 Bracket, Engine Mounting, Front No.1 Rh[03.2017 -] 2URGSE..URZ100 |
12311-38050 |
from US $77.17 |
||
|
12315
|
12315
12315-38040 Bracket, Engine Mounting, Front No.1 Lh[03.2017 -] 2URGSE..URZ100 |
12315-38040 |
US $77.17 |
||
|
12351
|
12351
12351-38020 Damper, Engine Mounting[03.2017 -] 2URGSE..URZ100 |
12351-38020 |
US $16.07 |
||
|
12361E
|
12361E
12361-38290 Insulator, Engine Mounting, Front[03.2017 -] 2URGSE..URZ100 |
12361-38290 |
US $141.15 |
||
| replacement | |||||
|
12361E
|
12361E
12361-38291 INSULATOR ENGINE[03.2017 -] 2URGSE..URZ100 |
12361-38291 |
US $127.92 |
||
|
12362A
|
12362A
12361-38290 Insulator, Engine Mounting, Front[03.2017 -] 2URGSE..URZ100 |
12361-38290 |
US $141.15 |
||
| replacement | |||||
|
12362A
|
12362A
12361-38291 INSULATOR ENGINE[03.2017 -] 2URGSE..URZ100 |
12361-38291 |
US $127.92 |
||
|
12371A
|
12371A
12371-38140 Insulator, Engine Mounting, Rear[03.2017 -] 2URGSE..URZ100 |
12371-38140 |
US $41.06 |
||
| replacement | |||||
|
12371A
|
12371A
12371-38170 Trans Mount.[03.2017 -] 2URGSE..URZ100 |
12371-38170 |
from US $42.76 |
||
|
91552F1035
|
91552F1035
91552-F1035 BOLT FLANGE |
91552-F1035 |
US $0.96 |
||
|
9010510589
|
9010510589
90105-10589 New Genuine Part |
90105-10589 |
US $1.60 |
||
|
9017810033
|
9017810033
90178-10033 Nut(For Front Suspension Support) |
90178-10033 |
US $1.79 |
||
|
9017812027
|
9017812027
90178-12027 NUT, FLANGE |
90178-12027 |
US $1.79 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.76 |
||
