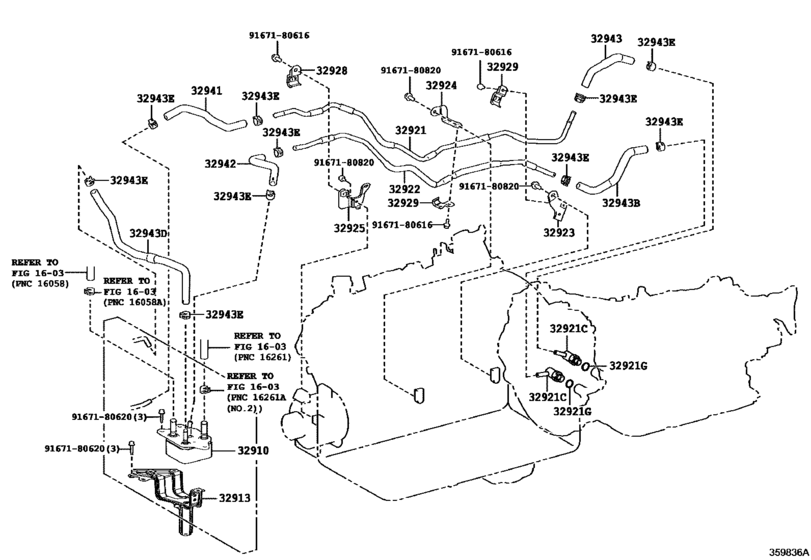

Oil Cooler & Tube (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32910
|
32910
32910-11010
Cooler Assy, Oil
[03.2017 -] URZ100 |
32910-11010 |
— | ||
|
32913
|
32913
32913-11020 Bracket, Oil Cooler[03.2017 -] URZ100 |
32913-11020 |
US $19.36 |
||
|
32921
|
32921
32921-11010 Tube, Oil Cooler Inlet, No.1[03.2017 -] URZ100 |
32921-11010 |
US $13.25 |
||
|
32921C
|
32921C
90407-14034 Union(For Oil Cooler Tube)[03.2017 -] URZ100 |
90407-14034 |
US $7.71 |
||
|
32921G
|
32921G
90301-11030 Ring, O(For Oil Cooler Tube Union)[03.2017 -] URZ100 |
90301-11030 |
from US $2.09 |
||
|
32922
|
32922
32922-11010 Tube, Oil Cooler Outlet, No.1[03.2017 -] URZ100 |
32922-11010 |
US $13.25 |
||
|
32923
|
32923
32923-11010 Clamp, Automatic Transmission Oil Cooler Tube[03.2017 -] URZ100 |
32923-11010 |
US $4.37 |
||
|
32924
|
32924
32924-11010 Clamp, Oil Cooler Tube, No.2[03.2017 -] URZ100 |
32924-11010 |
US $4.51 |
||
|
32925
|
32925
32925-11010 Clamp, Oil Cooler Tube, No.3[03.2017 -] URZ100 |
32925-11010 |
US $6.55 |
||
|
32928
|
32928
32928-11020 Clamp, Flexible Hose, No.1[03.2017 -] URZ100 |
32928-11020 |
US $3.79 |
||
|
32929
|
32929
32929-30180
Clamp, Flexible Hose, No.2
[03.2017 -] URZ100 |
32929-30180 |
— | ||
|
32941
|
32941
32941-11040 Hose, Oil Cooler Inlet, No.1[03.2017 -] URZ100 |
32941-11040 |
US $15.29 |
||
|
32942
|
32942
32942-11040 Hose, Oil Cooler Outlet, No.1[03.2017 -] URZ100 |
32942-11040 |
US $13.54 |
||
|
32943
|
32943
32943-11020 Hose, Transmission Oil Cooler, No.1[03.2017 -] URZ100 |
32943-11020 |
US $9.61 |
||
|
32943B
|
32943B
32943-11030 Hose, Transmission Oil Cooler[03.2017 -] URZ100 |
32943-11030 |
US $12.67 |
||
|
32943D
|
32943D
32943-11040 Hose, Transmission Oil Cooler, No.4[03.2017 -] URZ100 |
32943-11040 |
US $20.97 |
||
|
32943E
|
32943E
90466-16004 Clip(For Ventilation Hose No.2)[03.2017 -] URZ100 |
90466-16004 |
from US $1.81 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
