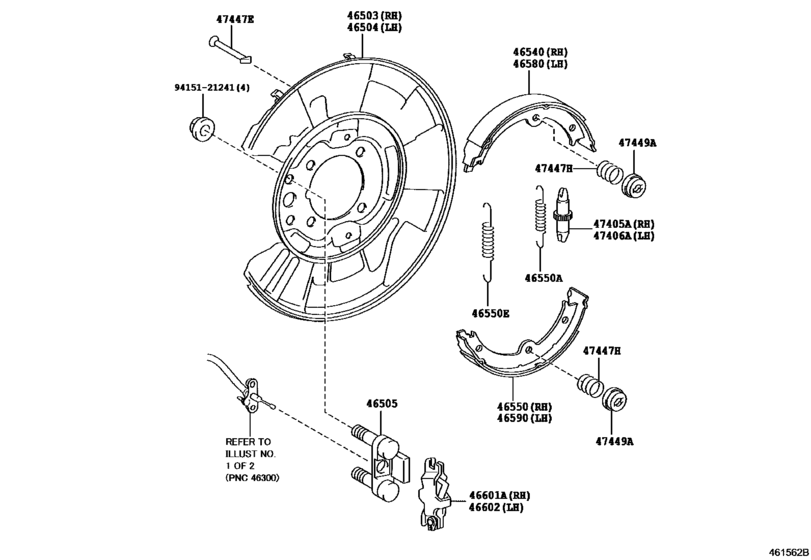

Parking Brake & Cable ([03.2017 - ] (1703- )) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- LHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46503
|
46503
46503-11020 Plate Sub-Assy, Parking Brake, Rh[03.2017 -] GWZ100,URZ100 |
46503-11020 |
US $132.50 |
||
|
46504
|
46504
46504-11020 Plate Sub-Assy, Parking Brake, Lh[03.2017 -] GWZ100,URZ100 |
46504-11020 |
US $125.22 |
||
|
46505
|
46505
46505-50050 Block Sub-Assy, Parking Brake Anchor[03.2017 -] GWZ100,URZ100 |
46505-50050 |
US $19.22 |
||
|
46540
|
46540
46530-50041 Shoe Assy, Parking Brake, Rh Or Center No.1[03.2017 -] GWZ100,URZ100 |
46530-50041 |
from US $19.10 |
||
|
46550
|
46550
46530-50041 Shoe Assy, Parking Brake, Rh Or Center No.1[03.2017 -] GWZ100,URZ100 |
46530-50041 |
from US $19.10 |
||
|
46550A
|
46550A
90506-14080 Spring, Tension, No.1(For Parking Brake Shoe Return)[03.2017 -] GWZ100,URZ100 |
90506-14080 |
from US $1.79 |
||
|
46550E
|
46550E
90506-23052 Spring, Tension, No.1(For Parking Brake Shoe Return)[03.2017 -] GWZ100,URZ100 |
90506-23052 |
from US $2.26 |
||
|
46580
|
46580
46530-50041 Shoe Assy, Parking Brake, Rh Or Center No.1[03.2017 -] GWZ100,URZ100 |
46530-50041 |
from US $19.10 |
||
|
46590
|
46590
46530-50041 Shoe Assy, Parking Brake, Rh Or Center No.1[03.2017 -] GWZ100,URZ100 |
46530-50041 |
from US $19.10 |
||
|
46601A
|
46601A
46601-50050 Lever Sub-Assy, Parking Brake Shoe, Rh[03.2017 -] GWZ100,URZ100 |
46601-50050 |
US $16.31 |
||
|
46602
|
46602
46602-50050 Lever Sub-Assy, Parking Brake Shoe, Lh[03.2017 -] GWZ100,URZ100 |
46602-50050 |
US $16.31 |
||
|
47405A
|
47405A
47405-32010 Screw Set, Shoe Adjusting, Rh(For Parking Brake)[03.2017 -] GWZ100,URZ100 |
47405-32010 |
from US $12.14 |
||
|
47406A
|
47406A
47406-32010 Screw Set, Shoe Adjusting, Lh(For Parking Brake)[03.2017 -] GWZ100,URZ100 |
47406-32010 |
from US $12.64 |
||
|
47447E
|
47447E
47447-10020 Pin, Shoe Hold Down Spring(For Front Brake)[03.2017 -] GWZ100,URZ100 |
47447-10020 |
from US $1.75 |
||
|
47447H
|
47447H
90501-16118 Spring, Compression(For Parking Brake Shoe Hold Down)[03.2017 -] GWZ100,URZ100 |
90501-16118 |
from US $0.95 |
||
|
47449A
|
47449A
47449-30030 Cup, Brake Shoe Hold Down[03.2017 -] GWZ100,URZ100 |
47449-30030 |
from US $1.41 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.93 |
