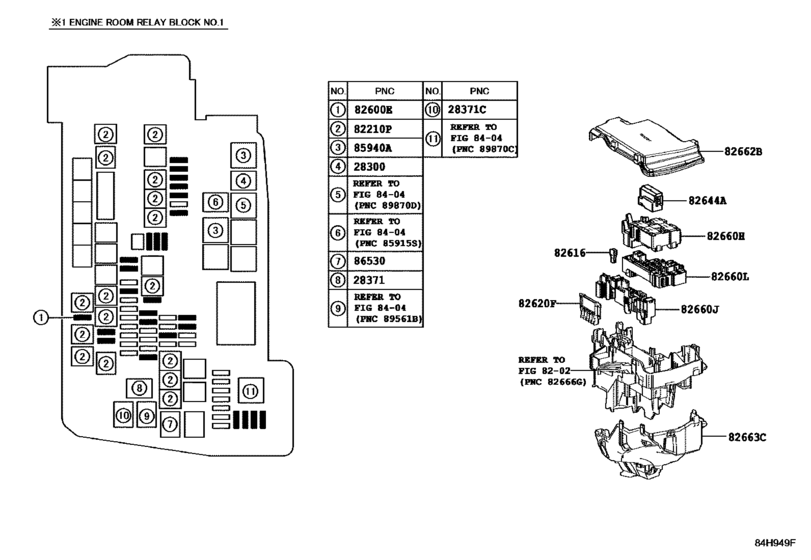

Switch & Relay & Computer ([03.2017 - ] ENGINE ROOM RELAY BLOCK (1703- )URZ100..ARL) Diagram Toyota LEXUS LC
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- URZ100
- ENGINE
- 2URGSE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LC500
- From
- 03.2017
- Gear Shift Type
- 10FC
- Vehicle Model
- LC500
- Driver's Position
- RHD
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[03.2017 -] 2URGSE..URZ100 |
28300-21020 |
from US $44.86 |
||
|
28371
|
28371
90987-02027 Relay[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
28371C
|
28371C
90987-02027 Relay[03.2017 -] 8GRFXS,2URGSE..GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[03.2017 -] URZ100 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[03.2017 -] URZ100 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[03.2017 -] GWZ100,URZ100 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.99 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[03.2017 -] GWZ100,URZ100 80A,TERMINAL:FEMALE |
90982-08305 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08308 Fusible Link[03.2017 -] GWZ100,URZ100 40A-30A-30A,FEMALE |
90982-08308 |
from US $7.35 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[03.2017 -] GWZ100,URZ100 7.5A,MINI FUSE |
90982-09020 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[03.2017 -] GWZ100,URZ100 10A,MINI FUSE |
90982-09021 |
from US $0.78 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[03.2017 -] GWZ100,URZ100 15A,MINI FUSE |
90982-09022 |
from US $0.80 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[03.2017 -] GWZ100,URZ100 20A,MINI FUSE |
90982-09023 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[03.2017 -] GWZ100,URZ100 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[03.2017 -] GWZ100,URZ100 |
82616-58010 |
from US $2.22 |
||
|
82620F
|
82620F
82620-50170 Block Assy, Fusible Link[03.2017 -] URZ100 |
82620-50170 |
US $39.75 |
||
|
82644A
|
82644A
82644-11030 Computer, Semiconductor Power Integration, No.1[03.2017 -] GWZ100,URZ100 |
82644-11030 |
US $56.64 |
||
|
82660H
|
82660H
82660-50100 Block Assy, Relay[03.2017 -] URZ100..ARL |
82660-50100 |
US $18.64 |
||
|
82660J
|
82660J
82660-50110 Block Assy, Relay[03.2017 -] URZ100..ARL |
82660-50110 |
US $51.69 |
||
|
82660L
|
82660L
82660-50140 Block Assy, Relay[03.2017 -] URZ100..ARL |
82660-50140 |
US $35.38 |
||
|
82662B
|
82662B
82662-11040 Cover, Relay Block, Upper, No.2[03.2017 -] URZ100..ARL |
82662-11040 |
US $29.41 |
||
|
82663C
|
82663C
82663-50210 Cover, Relay Block Lower, No.4[03.2017 -] URZ100..ARL |
82663-50210 |
US $46.01 |
||
|
85940A
|
85940A
90987-02025 Relay[03.2017 -] GWZ100,URZ100 |
90987-02025 |
from US $48.62 |
||
|
86530
|
86530
90987-02027 Relay[03.2017 -] GWZ100,URZ100 |
90987-02027 |
from US $47.82 |
