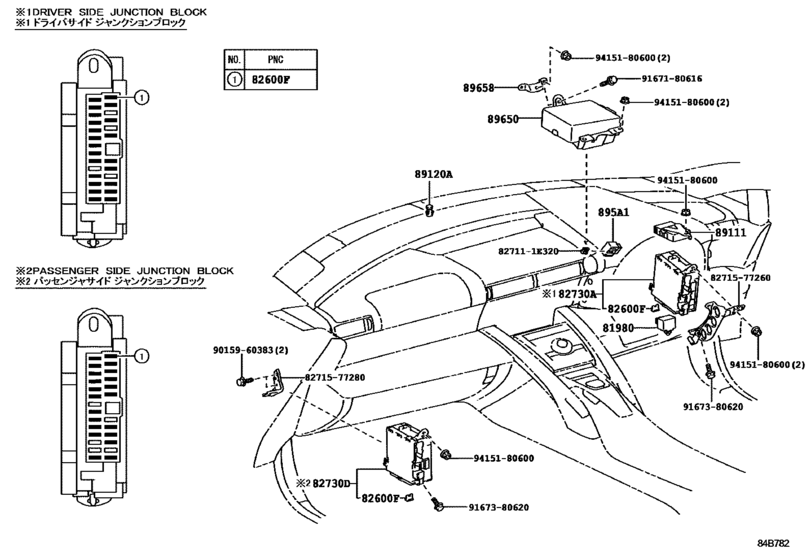

Switch & Relay & Computer ([12.2010 - ] ｶｳﾙ (1012- )) Diagram Toyota LEXUS LFA
- Year
- 2010 - 2012
- Sales region
- Japan
- Frame
- LFA10
- ENGINE
- 1LRGUE
- TRANSMISSION
- ASG
- From
- 12.2010
- To
- 12.2012
- Gear Shift Type
- 6F
- Vehicle Model
- LFA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A1
|
895A1
895A1-12010 Relay, Stop Lamp ControlSTOP LAMP CONTROL [12.2010 -] LFA10 |
895A1-12010 |
US $50.67 |
||
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[12.2010 -] LFA10 |
81980-30170 |
from US $52.59 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2010 -] LFA10 ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2010 -] LFA10 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2010 -] LFA10 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2010 -] LFA10 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2010 -] LFA10 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2010 -] LFA10 ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2010 -] LFA10 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.96 |
||
|
82730A
|
82730A
82730-77030
Block Assy, Driver Side Junction
[12.2010 - 11.2012] LFA10 |
82730-77030 |
— | ||
|
82730D
|
82730D
82730-77020 Block Assy, Passenger Side Junction[12.2010 -] LFA10 |
82730-77020 |
US $624.62 |
||
|
89111
|
89111
89111-77010 Computer, Network Gateway[12.2010 -] LFA10 |
89111-77010 |
US $451.36 |
||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[12.2010 -] LFA10 |
89121-50020 |
from US $108.04 |
||
|
89650
|
89650
89650-77010 Computer Assy, Power Steering[12.2010 -] LFA10 |
89650-77010 |
US $765.86 |
||
|
89658
|
89658
89658-77010 Bracket, Power Steering Computer[12.2010 -] LFA10 |
89658-77010 |
US $15.29 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271577260
|
8271577260
82715-77260 Bracket,wiring Harness Clamp |
82715-77260 |
US $69.31 |
||
|
8271577280
|
8271577280
82715-77280 Bracket,wiring Harness Clamp |
82715-77280 |
US $30.43 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
