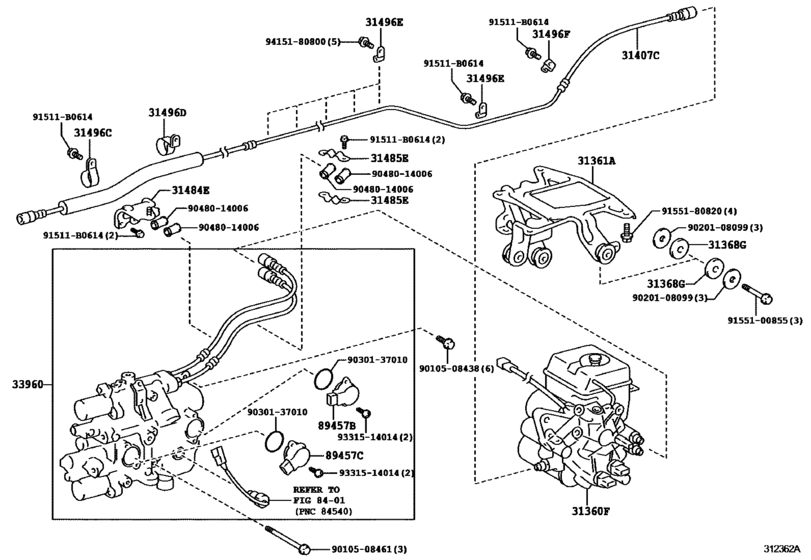

Pump & Actuator, Sequential Or Multi-Mode Manual Transaxle ([12.2010 - ] (1012- )) Diagram Toyota LEXUS LFA
- Year
- 2010 - 2012
- Sales region
- U.S.A.
- Frame
- LFA10
- ENGINE
- 1LRGUE
- TRANSMISSION
- ASG
- DESTINATION
- USA
- From
- 12.2010
- To
- 12.2012
- Gear Shift Type
- 6F
- Vehicle Model
- LFA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31360F
|
31360F
31360-77010 Pump Assy, Sequential Transmission[12.2010 -] LFA10 |
31360-77010 |
US $11,851.84 |
||
|
31361A
|
31361A
31320-77010 Bracket, Sequential Transmission Pump[12.2010 -] LFA10 |
31320-77010 |
US $410.59 |
||
|
31368G
|
31368G
31368-77010 Seat, Sequential Transmission Pump Cushion[12.2010 -] LFA10 |
31368-77010 |
US $3.79 |
||
|
31407C
|
31407C
31407-77010 Tube Sub-Assy, Sequential Transmission Clutch[12.2010 -] LFA10 |
31407-77010 |
US $486.30 |
||
|
31484E
|
31484E
31484-77010 Bracket, Flexible Hose No.1[12.2010 -] LFA10 |
31484-77010 |
US $51.40 |
||
|
31485E
|
31485E
31485-77010 Bracket, Flexible Hose, No.2[12.2010 -] LFA10 |
31485-77010 |
US $11.65 |
||
|
31496C
|
31496C
31496-77010 Clamp, Clutch Tube[12.2010 -] LFA10 |
31496-77010 |
US $16.02 |
||
|
31496D
|
31496D
31496-77020 Clamp, Clutch Tube, No.2[12.2010 -] LFA10 |
31496-77020 |
US $14.85 |
||
|
31496E
|
31496E
31496-77030 Clamp, Clutch Tube, No.3[12.2010 -] LFA10 |
31496-77030 |
US $9.32 |
||
|
31496F
|
31496F
31496-77040
Clamp, Clutch Tube, No.4
[12.2010 -] LFA10 |
31496-77040 |
— | ||
|
33960
|
33960
33960-77010 Actuator Assy, Sequential Transmission[12.2010 -] LFA10 |
33960-77010 |
US $13,264.16 |
||
|
89457B
|
89457B
89457-77020
Stroke Sensor, Shift
[12.2010 - 12.2012] LFA10 |
89457-77020 |
— | ||
|
89457C
|
89457C
89457-77020
Stroke Sensor, Shift
[12.2010 - 12.2012] LFA10 |
89457-77020 |
— | ||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9010508438
|
9010508438
90105-08438 New Genuine Part |
90105-08438 |
US $0.96 |
||
|
9010508461
|
9010508461
90105-08461 New Genuine Part |
90105-08461 |
US $8.30 |
||
|
9020108099
|
9020108099
90201-08099 New Genuine Part |
90201-08099 |
US $12.52 |
||
|
9030137010
|
9030137010
90301-37010 Ring, O(For Clutch Actuator Accumulator)O(FOR CLUTCH ACTUATOR ACCUMULATOR) |
90301-37010 |
US $2.18 |
||
|
9048014006
|
9048014006
90480-14006 New Genuine Part |
90480-14006 |
US $0.96 |
||
|
9155100855
|
9155100855
91551-00855 New Genuine Part |
91551-00855 |
US $1.46 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
