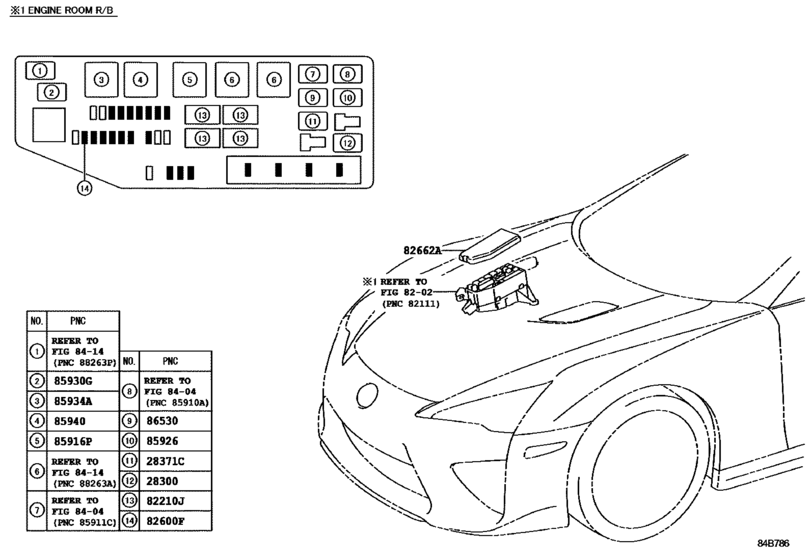

Switch & Relay & Computer ([12.2010 - ] ENGINE ROOM (1012- )) Diagram Toyota LEXUS LFA
- Year
- 2010 - 2012
- Sales region
- U.S.A.
- Frame
- LFA10
- ENGINE
- 1LRGUE
- TRANSMISSION
- ASG
- DESTINATION
- USA
- From
- 12.2010
- To
- 12.2012
- Gear Shift Type
- 6F
- Vehicle Model
- LFA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[12.2010 -] 1LRGUE..LFA10 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[12.2010 -] 1LRGUE..LFA10 |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90987-02027 Relay[12.2010 -] 1LRGUE..LFA10 |
90987-02027 |
from US $44.54 |
||
|
82210J
|
82210J
90982-08299 Fusible Link[12.2010 -] LFA10 40A-40A-40A,FEMALE |
90982-08299 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[12.2010 -] LFA10 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[12.2010 -] LFA10 50A-30A-50A,FEMALE |
90982-08302 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2010 -] LFA10 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2010 -] LFA10 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2010 -] LFA10 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2010 -] LFA10 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2010 -] LFA10 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2010 -] LFA10 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2010 -] LFA10 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82662A
|
82662A
82662-77010 Cover, Relay Block, Upper, No.1[12.2010 -] LFA10 |
82662-77010 |
US $37.86 |
||
|
85916P
|
85916P
90987-02025 Relay[12.2010 -] LFA10 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02027 Relay[12.2010 -] LFA10 |
90987-02027 |
from US $44.54 |
||
|
85930G
|
85930G
90987-04004 Relay, Starter Cut[12.2010 -] LFA10 |
90987-04004 |
from US $42.71 |
||
|
85934A
|
85934A
90987-02025 Relay[12.2010 -] LFA10 |
90987-02025 |
from US $44.54 |
||
|
85940
|
85940
90987-02025 Relay[12.2010 -] LFA10 |
90987-02025 |
from US $44.54 |
||
|
86530
|
86530
90987-02027 Relay[12.2010 -] LFA10 |
90987-02027 |
from US $44.54 |
||
