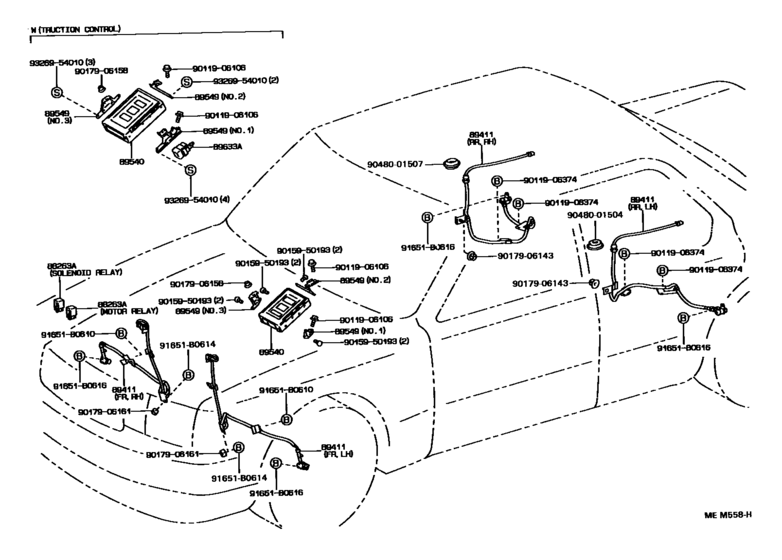

Abs & Vsc ([05.1989 - 08.1992] (8905-9208)) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88263A
|
88263A
88263-14110 Relay Assy, Circuit Opening (For Esc)[05.1989 - 08.1992] UCF10 MOTOR RELAY |
88263-14110 |
US $56.54 |
||
|
88263A
|
88263A
88263-14120 Relay Assy, Circuit Opening (For Esc)[05.1989 - 08.1992] UCF10 SOLENOID RELAY |
88263-14120 |
US $50.09 |
||
|
88263A
|
88263A
88263-35070 Relay, Ignition, No.1[08.1992 - 10.1994] UCF10 SOLENOID RELAY |
88263-35070 |
US $55.04 |
||
|
88263A
|
88263A
89633-50030 Relay, Skid Control[08.1992 - 10.1994] UCF10 MOTOR RELAY |
89633-50030 |
US $87.36 |
||
| replacement | |||||
|
88263A
|
88263A
28610-64110 Relay Assy, Glow Plug[08.1992 - 10.1994] UCF10 MOTOR RELAY |
28610-64110 |
from US $66.03 |
||
|
89411
|
89411
89542-50010 Sensor, SpeedSPEED [05.1989 - 08.1992] UCF10 FRONT,RH |
89542-50010 |
US $292.66 |
||
|
89411
|
89411
89542-50030
Sensor, Speed
[08.1992 - 10.1994] UCF10 FRONT,RH |
89542-50030 |
— | ||
|
89411
|
89411
89543-50010 Sensor, SpeedSPEED [05.1989 - 08.1992] UCF10 FRONT,LH |
89543-50010 |
US $292.66 |
||
|
89411
|
89411
89543-50030
Sensor, Speed
[08.1992 - 10.1994] UCF10 FRONT,LH |
89543-50030 |
— | ||
|
89411
|
89411
89545-50010 Sensor, Speed[05.1989 - 08.1992] UCF10 REAR,RH |
89545-50010 |
US $292.66 |
||
|
89411
|
89411
89545-50020 Sensor, Speed[08.1992 - 10.1994] UCF10 REAR,RH |
89545-50020 |
US $292.66 |
||
|
89411
|
89411
89546-50010
Sensor, Speed
[05.1989 - 08.1992] UCF10 REAR,LH |
89546-50010 |
— | ||
|
89411
|
89411
89546-50020 Sensor, Speed[08.1992 - 10.1994] UCF10 REAR,LH |
89546-50020 |
US $292.66 |
||
|
89540
|
89540
89541-50010 Computer Assy, Skid Control[05.1989 - 11.1989] UCF10 |
89541-50010 |
US $1,282.74 |
||
| replacement | |||||
|
89540
|
89540
89541-50020 Computer Assy, Skid Control[05.1989 - 11.1989] UCF10 |
89541-50020 |
US $1,274 |
||
|
89540
|
89540
89541-50020 Computer Assy, Skid Control[11.1989 - 08.1992] UCF10 |
89541-50020 |
US $1,274 |
||
|
89540
|
89540
89541-50030 Computer Assy, Skid Control[05.1989 - 11.1989] UCF10 W(TRACTION CONTROL) |
89541-50030 |
US $2,620.80 |
||
| replacement | |||||
|
89540
|
89540
89541-50031 Computer Assy, Skid ControlSKID CONTROL [05.1989 - 11.1989] UCF10 W(TRACTION CONTROL) |
89541-50031 |
US $2,577.12 |
||
|
89540
|
89540
89541-50031 Computer Assy, Skid ControlSKID CONTROL [11.1989 - 08.1992] UCF10 W(TRACTION CONTROL) |
89541-50031 |
US $2,577.12 |
||
|
89540
|
89540
89541-50050 Computer Assy, Skid Control[08.1992 - 10.1994] UCF10..USA |
89541-50050 |
US $1,214.30 |
||
|
89540
|
89540
89541-50060 Computer Assy, Skid Control[08.1992 - 10.1994] UCF10..CND; UCF10..USA W(TRACTION CONTROL) |
89541-50060 |
US $2,460.64 |
||
|
89549
|
89549
88267-50010 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [05.1989 - 08.1992] UCF10 NO.1 |
88267-50010 |
US $6.99 |
||
|
89549
|
89549
88267-50030 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [05.1989 - 08.1992] UCF10 W(TRACTION CONTROL),NO.1 |
88267-50030 |
US $9.17 |
||
|
89549
|
89549
88267-50050 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [08.1992 - 10.1994] UCF10..USA NO.1 |
88267-50050 |
US $8.59 |
||
|
89549
|
89549
88267-50070 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [08.1992 - 10.1994] UCF10..CND NO.1; UCF10..USA W(TRACTION CONTROL),NO.1 |
88267-50070 |
US $14.12 |
||
|
89549
|
89549
88268-50010 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [05.1989 - 08.1992] UCF10 NO.2 |
88268-50010 |
US $8.30 |
||
|
89549
|
89549
88268-50030 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [05.1989 - 08.1992] UCF10 W(TRACTION CONTROL),NO.2 |
88268-50030 |
US $6.99 |
||
|
89549
|
89549
88268-50050 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [08.1992 - 10.1994] UCF10..USA NO.2 |
88268-50050 |
US $12.23 |
||
|
89549
|
89549
88268-50070 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [08.1992 - 10.1994] UCF10..CND NO.2; UCF10..USA W(TRACTION CONTROL),NO.2 |
88268-50070 |
US $19.66 |
||
|
89549
|
89549
88269-50010 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [05.1989 - 08.1992] UCF10 NO.3 |
88269-50010 |
US $6.99 |
||
|
89549
|
89549
88269-50030 Bracket, Skid Control ComputerSKID CONTROL COMPUTER [05.1989 - 08.1992] UCF10 W(TRACTION CONTROL),NO.3 |
88269-50030 |
US $12.23 |
||
|
89633A
|
89633A
89633-50010 Relay, Traction Control Or Vsc[05.1989 - 08.1992] UCF10 |
89633-50010 |
US $51.98 |
||
|
91651B0610
|
91651B0610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
9011906106
|
9011906106
90119-06106 New Genuine Part |
90119-06106 |
from US $0.64 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9015950193
|
9015950193
90159-50193 New Genuine Part |
90159-50193 |
US $0.87 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9048001504
|
9048001504
90480-01504 New Genuine Part |
90480-01504 |
US $5.82 |
||
|
9048001507
|
9048001507
90480-01507 New Genuine Part |
90480-01507 |
US $5.82 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
