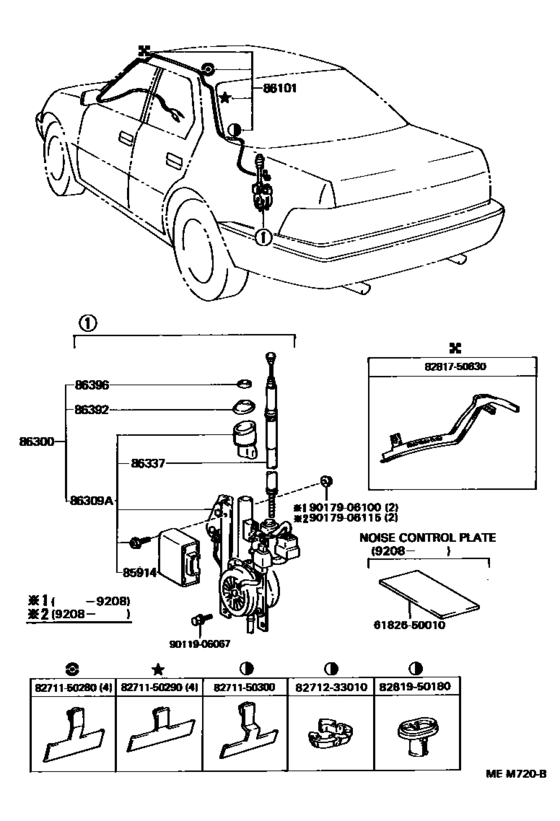

Antenna ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85914
|
85914
85914-50010 Relay, Motor Antenna ControlMOTOR ANTENNA CONTROL [05.1989 - 10.1994] UCF10 |
85914-50010 |
US $230.05 |
||
|
86101
|
86101
86101-50010 Cord Sub-Assy, AntennaANTENNA [05.1989 - 08.1992] UCF10 |
86101-50010 |
US $115.02 |
||
|
86101
|
86101
86101-50020 Cord Sub-Assy, AntennaANTENNA [05.1989 - 08.1992] UCF10 W(WIRELESS DOOR LOCK) |
86101-50020 |
US $115.02 |
||
|
86101
|
86101
86101-50110 Cord Sub-Assy, AntennaANTENNA [08.1992 - 10.1994] UCF10 |
86101-50110 |
US $115.02 |
||
|
86101
|
86101
86101-50170 Cord Sub-Assy, AntennaANTENNA [01.1994 - 10.1994] UCF10..USA TAIWAN SPEC |
86101-50170 |
US $115.02 |
||
|
86300
|
86300
86300-50010 Antenna Assy, W/holder[05.1989 - 03.1992] UCF10 |
86300-50010 |
US $353.81 |
||
| replacement | |||||
|
86300
|
86300
86300-50011 Antenna Assy, W/holder[05.1989 - 03.1992] UCF10 |
86300-50011 |
US $353.81 |
||
|
86300
|
86300
86300-50011 Antenna Assy, W/holder[03.1992 - 08.1992] UCF10 |
86300-50011 |
US $353.81 |
||
|
86300
|
86300
86300-50081
Antenna Assy, W/holder
[08.1992 - 10.1994] UCF10 |
86300-50081 |
— | ||
|
86309A
|
86309A
86309-50010
Pole Sub-Assy, Motor Antenna
[05.1989 - 03.1992] UCF10 |
86309-50010 |
— | ||
| replacement | |||||
|
86309A
|
86309A
86309-50011
Pole Sub-Assy, Motor Antenna
[05.1989 - 03.1992] UCF10 |
86309-50011 |
— | ||
|
86309A
|
86309A
86309-50011
Pole Sub-Assy, Motor Antenna
[03.1992 - 08.1992] UCF10 |
86309-50011 |
— | ||
|
86309A
|
86309A
86309-50030
Pole Sub-Assy, Motor Antenna
[08.1992 - 10.1994] UCF10 |
86309-50030 |
— | ||
|
86337
|
86337
86337-24180
Rod & Pipe, Sealed W/cable
[03.1992 - 10.1992] UCF10 |
86337-24180 |
— | ||
| replacement | |||||
|
86337
|
86337
86337-24181 Rod & Pipe, Sealed W/cable[03.1992 - 10.1992] UCF10 |
86337-24181 |
from US $35.24 |
||
|
86337
|
86337
86337-50010
Rod & Pipe, Sealed W/cable
[05.1989 - 03.1992] UCF10 |
86337-50010 |
— | ||
|
86337
|
86337
86337-50080
Rod & Pipe, Sealed W/cable
[10.1992 - 10.1994] UCF10 |
86337-50080 |
— | ||
| replacement | |||||
|
86337
|
86337
86337-24181 Rod & Pipe, Sealed W/cable[10.1992 - 10.1994] UCF10 |
86337-24181 |
from US $35.24 |
||
|
86392
|
86392
86392-50010
Ornament, Antenna
[05.1989 - 10.1994] UCF10 |
86392-50010 |
— | ||
|
86396
|
86396
86396-50010
Nut, Antenna
[05.1989 - 10.1994] UCF10 |
86396-50010 |
— | ||
|
6182650010
|
6182650010
61826-50010 Pad, Noise Shutter, No.1 |
61826-50010 |
US $4.08 |
||
|
8271150280
|
8271150280
82711-50280 Wire, Fuse To Fuse(for Combustion Heater) |
82711-50280 |
US $4.08 |
||
|
8271150290
|
8271150290
82711-50290 Wire, Fuse To Fuse(for Combustion Heater) |
82711-50290 |
US $4.22 |
||
|
8271150300
|
8271150300
82711-50300 Wire, Fuse To Fuse(for Combustion Heater) |
82711-50300 |
US $5.39 |
||
|
8271233010
|
8271233010
82712-33010 Hose, Suction |
82712-33010 |
US $2.62 |
||
|
8281750630
|
8281750630
82817-50630 Protector, Wiring Harness, No.1 |
82817-50630 |
US $6.99 |
||
|
8281950180
|
8281950180
82819-50180 Grommet, Wiring Harness |
82819-50180 |
US $8.15 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9017906100
|
9017906100
90179-06100
New Genuine Part
|
90179-06100 |
— | ||
| replacement | |||||
|
9017906100
|
9017906100
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
