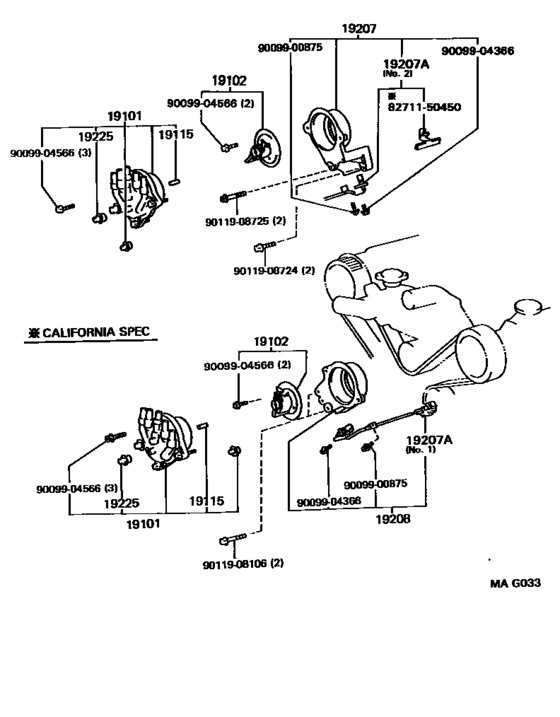

Distributor ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19101
|
19101
19101-50020
Cap Sub-Assy, Distributor
[05.1989 - 10.1994] 1UZFE..UCF10 |
19101-50020 |
— | ||
|
19102
|
19102
19102-50020
Rotor Sub-Assy, Distributor
[05.1989 - 10.1994] 1UZFE..UCF10 |
19102-50020 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[05.1989 - 10.1994] 1UZFE..UCF10 |
19115-50010 |
— | ||
|
19207
|
19207
19207-50010
Housing Sub-Assy, Distributor, Rh
[05.1989 - 10.1994] 1UZFE..UCF10 |
19207-50010 |
— | ||
|
19207
|
19207
19207-50020 Housing Sub-Assy, Distributor, RhDISTRIBUTOR, RH [08.1992 - 01.1994] 1UZFE..UCF10..USA CALIFORNIA SPEC |
19207-50020 |
US $186.37 |
||
|
19207A
|
19207A
90919-05003
Sensor, Cam Position
[05.1989 - 10.1994] 1UZFE..UCF10 NO.1 |
90919-05003 |
— | ||
|
19207A
|
19207A
90919-05004
Sensor, Cam Position
[05.1989 - 10.1994] 1UZFE..UCF10 NO.2 |
90919-05004 |
— | ||
|
19207A
|
19207A
90919-05010 Sensor, Cam PositionCAM POSITION [08.1992 - 01.1994] 1UZFE..UCF10..USA CALIFORNIA SPEC,NO.2 |
90919-05010 |
US $88.82 |
||
|
19208
|
19208
19208-50010
Housing Sub-Assy, Distributor, Lh
[05.1989 - 10.1994] 1UZFE..UCF10 |
19208-50010 |
— | ||
|
19225
|
19225
19225-50010
Cap, Rubber
[08.1989 - 10.1994] 1UZFE..UCF10 |
19225-50010 |
— | ||
|
19225
|
19225
19225-50020
Cap, Rubber
[05.1989 - 08.1989] 1UZFE..UCF10 |
19225-50020 |
— | ||
|
8271150450
|
8271150450
82711-50450
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-50450 |
— | ||
|
9009900875
|
9009900875
90099-00875
New Genuine Part
|
90099-00875 |
— | ||
|
9009904366
|
9009904366
90099-04366
New Genuine Part
|
90099-04366 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9011908106
|
9011908106
90119-08106 New Genuine Part |
90119-08106 |
US $2.62 |
||
|
9011908724
|
9011908724
90119-08724
New Genuine Part
|
90119-08724 |
— | ||
|
9011908725
|
9011908725
90119-08725
New Genuine Part
|
90119-08725 |
— |
