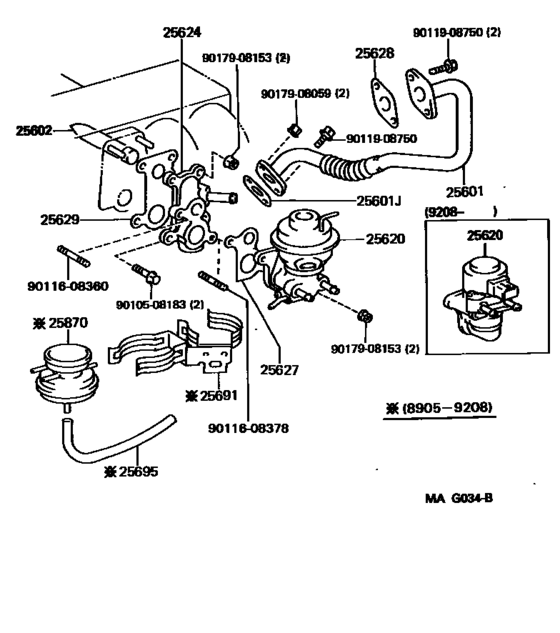

Exhaust Gas Recirculation System ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-50010 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [05.1989 - 10.1994] 1UZFE..UCF10 |
25601-50010 |
US $464.34 |
||
|
25601
|
25601
25601-50040
Pipe Sub-Assy, Egr, No.1
[08.1992 - 01.1994] 1UZFE..UCF10..USA CALIFORNIA SPEC |
25601-50040 |
— | ||
|
25601J
|
25601J
25634-50010 Gasket(For Exhaust Manifold Plate)[05.1989 - 10.1994] 1UZFE..UCF10 |
25634-50010 |
from US $7.16 |
||
|
25602
|
25602
25612-50010 Pipe Sub-Assy, Egr, No.2EGR, NO.2 [05.1989 - 10.1994] 1UZFE..UCF10 |
25612-50010 |
US $11.79 |
||
|
25620
|
25620
25620-50010
Valve Assy, Egr
[05.1989 - 08.1992] 1UZFE..UCF10 |
25620-50010 |
— | ||
|
25620
|
25620
25620-50020 Valve Assy, EgrEGR [08.1992 - 10.1994] 1UZFE..UCF10 |
25620-50020 |
US $557.65 |
||
|
25624
|
25624
25624-50010 Adapter, Egr ValveEGR VALVE [05.1989 - 08.1990] 1UZFE..UCF10 |
25624-50010 |
US $44.41 |
||
|
25624
|
25624
25624-50020 Adapter, Egr ValveEGR VALVE [05.1989 - 08.1990] 1UZFE..UCF10 CALIFORNIA SPEC |
25624-50020 |
US $44.12 |
||
|
25624
|
25624
25624-50021 Adapter, Egr ValveEGR VALVE [09.1994 - 10.1994] 1UZFE..UCF10 |
25624-50021 |
US $39.17 |
||
|
25627
|
25627
25627-50010 Gasket, Egr ValveEGR VALVE [05.1989 - 10.1994] 1UZFE..UCF10 |
25627-50010 |
US $2.18 |
||
|
25628
|
25628
25628-50010 Gasket, Egr InletEGR INLET [05.1989 - 10.1994] 1UZFE..UCF10 |
25628-50010 |
from US $2.48 |
||
|
25629
|
25629
25629-50010
Gasket(For Intake Air Surge Tank)
[05.1989 - 10.1994] 1UZFE..UCF10 |
25629-50010 |
— | ||
|
25691
|
25691
25691-50010 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [05.1989 - 08.1990] 1UZFE..UCF10 |
25691-50010 |
US $8.15 |
||
|
25691
|
25691
25691-50011 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [08.1990 - 08.1992] 1UZFE..UCF10 |
25691-50011 |
US $9.90 |
||
|
25695
|
25695
25695-50010
Hose, Egr Vacuum Modulator
[05.1989 - 08.1992] 1UZFE..UCF10 |
25695-50010 |
— | ||
|
25870
|
25870
25870-50010
Valve Assy, Egr Vacuum Modulator
[05.1989 - 08.1992] 1UZFE..UCF10 |
25870-50010 |
— | ||
|
9010508183
|
9010508183
90105-08183
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08183 |
— | ||
| replacement | |||||
|
9010508183
|
9010508183
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9011608360
|
9011608360
90116-08360
New Genuine Part
|
90116-08360 |
— | ||
|
9011608378
|
9011608378
90116-08378
New Genuine Part
|
90116-08378 |
— | ||
|
9011908750
|
9011908750
90119-08750 BOLT WWASHER |
90119-08750 |
US $2.56 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
