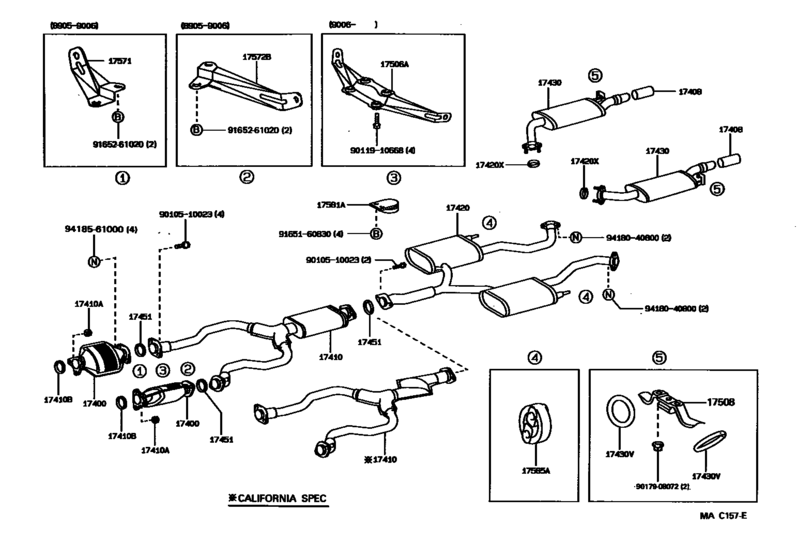

Exhaust Pipe ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-50010
Converter Assy, W/catalyst
[05.1989 - 10.1994] 1UZFE..UCF10 |
18450-50010 |
— | ||
|
17408
|
17408
17408-50010 Baffle Sub Assy, Exhaust Tail Pipe[05.1989 - 06.1993] 1UZFE..UCF10 |
17408-50010 |
US $64.06 |
||
| replacement | |||||
|
17408
|
17408
17408-74040 Baffle Sub Assy, Exhaust Tail Pipe[05.1989 - 06.1993] 1UZFE..UCF10 |
17408-74040 |
US $69.54 |
||
|
17408
|
17408
17408-74040 Baffle Sub Assy, Exhaust Tail Pipe[06.1993 - 10.1994] 1UZFE..UCF10 |
17408-74040 |
US $69.54 |
||
|
17410
|
17410
17410-50020
Pipe Assy, Exhaust, Front
[05.1989 - 05.1990] 1UZFE..UCF10 |
17410-50020 |
— | ||
| replacements | |||||
|
17410
|
17410
90917-06043
Gasket, Exhaust Pipe
[05.1989 - 05.1990] 1UZFE..UCF10 |
90917-06043 |
— | ||
|
17410
|
17410
17410-50021
Pipe Assy, Exhaust, Front
[05.1989 - 05.1990] 1UZFE..UCF10 |
17410-50021 |
— | ||
|
17410
|
17410
17410-50021
Pipe Assy, Exhaust, Front
[05.1990 - 08.1990] 1UZFE..UCF10 |
17410-50021 |
— | ||
|
17410
|
17410
17410-50030 Pipe Assy, Exhaust, Front[05.1989 - 05.1990] 1UZFE..UCF10 CALIFORNIA SPEC |
17410-50030 |
US $1,499.68 |
||
| replacements | |||||
|
17410
|
17410
90917-06043
Gasket, Exhaust Pipe
[05.1989 - 05.1990] 1UZFE..UCF10 CALIFORNIA SPEC |
90917-06043 |
— | ||
|
17410
|
17410
17410-50031 Pipe Assy, Exhaust, Front[05.1989 - 05.1990] 1UZFE..UCF10 CALIFORNIA SPEC |
17410-50031 |
US $1,429.79 |
||
|
17410
|
17410
17410-50031 Pipe Assy, Exhaust, Front[05.1990 - 08.1990] 1UZFE..UCF10 CALIFORNIA SPEC |
17410-50031 |
US $1,429.79 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1989 - 10.1994] 1UZFE..UCF10 |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1989 - 10.1994] 1UZFE..UCF10 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06043
Gasket, Exhaust Pipe
[05.1989 - 10.1994] 1UZFE..UCF10 |
90917-06043 |
— | ||
|
17420
|
17420
17420-50010
Pipe Assy, Exhaust, Center
[05.1989 - 10.1994] 1UZFE..UCF10 |
17420-50010 |
— | ||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[05.1989 - 12.1990] 1UZFE..UCF10 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[05.1989 - 12.1990] 1UZFE..UCF10 |
90080-43028 |
US $19.44 |
||
|
17420X
|
17420X
90917-06062 Gasket, Exhaust Pipe[12.1990 - 10.1994] 1UZFE..UCF10 |
90917-06062 |
from US $6.10 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43034 Gasket, Exhaust Pipe[12.1990 - 10.1994] 1UZFE..UCF10 |
90080-43034 |
US $32.67 |
||
|
17430
|
17430
17430-50010
Pipe Assy, Exhaust, Tail
[05.1989 - 10.1994] 1UZFE..UCF10 RH |
17430-50010 |
— | ||
|
17430
|
17430
17440-50010
Pipe Assy, Exhaust, Tail
[05.1989 - 10.1994] 1UZFE..UCF10 LH |
17440-50010 |
— | ||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[05.1989 - 10.1994] 1UZFE..UCF10 |
90301-36001 |
from US $5.13 |
||
|
17451
|
17451
90917-06031
Gasket, Exhaust Pipe
[05.1990 - 11.1990] 1UZFE..UCF10 RR |
90917-06031 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[05.1990 - 11.1990] 1UZFE..UCF10 RR |
90917-06043 |
— | ||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[12.1990 - 10.1994] 1UZFE..UCF10 RR |
90917-06043 |
— | ||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[05.1990 - 11.1990] 1UZFE..UCF10 FR |
90917-06054 |
from US $4.23 |
||
|
17451
|
17451
90917-06072 Gasket, Exhaust Pipe[12.1990 - 10.1994] 1UZFE..UCF10 FR |
90917-06072 |
from US $5.60 |
||
|
17506A
|
17506A
17506-50030 Bracket Sub-Assy, Exhaust Pipe No.1 Support[06.1990 - 10.1994] 1UZFE..UCF10 |
17506-50030 |
US $37.56 |
||
|
17508
|
17508
17508-50010
Support Sub-Assy, Exhaust Pipe, No.3
[05.1989 - 10.1994] 1UZFE..UCF10 |
17508-50010 |
— | ||
| replacement | |||||
|
17508
|
17508
17508-46060 Support Sub-Assy, Exhaust Pipe, No.3[05.1989 - 10.1994] 1UZFE..UCF10 |
17508-46060 |
from US $23.65 |
||
|
17565A
|
17565A
17505-50010 Support, Exhaust Pipe, No.4[05.1989 - 06.1993] 1UZFE..UCF10 |
17505-50010 |
US $22.42 |
||
| replacement | |||||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[05.1989 - 06.1993] 1UZFE..UCF10 |
17565-46040 |
from US $13.38 |
||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[06.1993 - 10.1994] 1UZFE..UCF10 |
17565-46040 |
from US $13.38 |
||
|
17571
|
17571
17571-50020 Bracket, Exhaust Pipe Support, No.1[05.1989 - 06.1990] 1UZFE..UCF10 |
17571-50020 |
US $34.51 |
||
| replacements | |||||
|
17571
|
17571
17506-50030 Bracket Sub-Assy, Exhaust Pipe No.1 Support[05.1989 - 06.1990] 1UZFE..UCF10 |
17506-50030 |
US $37.56 |
||
|
17571
|
17571
90119-10668 BOLT WWASHER[05.1989 - 06.1990] 1UZFE..UCF10 |
90119-10668 |
US $2.08 |
||
|
17572B
|
17572B
17572-50010 Bracket, Exhaust Pipe Support, No.2[05.1989 - 06.1990] 1UZFE..UCF10 |
17572-50010 |
US $34.51 |
||
| replacements | |||||
|
17572B
|
17572B
17506-50030 Bracket Sub-Assy, Exhaust Pipe No.1 Support[05.1989 - 06.1990] 1UZFE..UCF10 |
17506-50030 |
US $37.56 |
||
|
17572B
|
17572B
90119-10668 BOLT WWASHER[05.1989 - 06.1990] 1UZFE..UCF10 |
90119-10668 |
US $2.08 |
||
|
17581A
|
17581A
17581-50030 Damper, Exhaust Pipe[05.1989 - 10.1994] 1UZFE..UCF10 |
17581-50030 |
US $58.53 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.08 |
||
|
9017908072
|
9017908072
90179-08072 Nut(For Front Lower Arm Bracket Rh) |
90179-08072 |
from US $1.28 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
|
9165261020
|
9165261020
91652-61020 Bolt, No.1 (For Center Support Bearing) |
91652-61020 |
US $2.33 |
||
| replacement | |||||
|
9165261020
|
9165261020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $1.01 |
||
