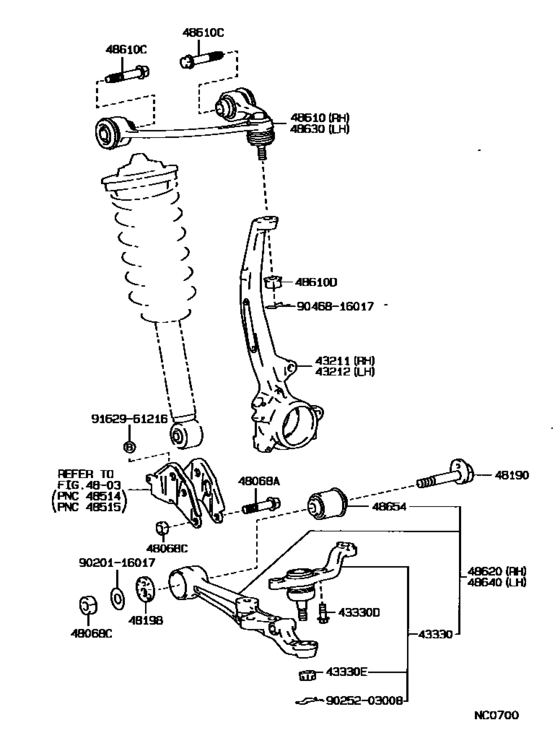

Front Axle Arm & Steering Knuckle ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-50010 Knuckle, Steering, Rh[05.1989 - 08.1992] UCF10 |
43211-50010 |
US $347.98 |
||
| replacements | |||||
|
43211
|
43211
43211-50050 Knuckle, Steering, Rh[05.1989 - 08.1992] UCF10 |
43211-50050 |
US $262.08 |
||
|
43211
|
43211
48331-50030
Bumper, Front Spring, No.1
[05.1989 - 08.1992] UCF10 |
48331-50030 |
— | ||
|
43211
|
43211
48331-50040 Bumper, Front Spring, No.1[05.1989 - 08.1992] UCF10 |
48331-50040 |
US $19.22 |
||
|
43211
|
43211
43211-50030 Knuckle, Steering, Rh[08.1992 - 10.1994] UCF10 |
43211-50030 |
US $347.98 |
||
| replacement | |||||
|
43211
|
43211
43211-50050 Knuckle, Steering, Rh[08.1992 - 10.1994] UCF10 |
43211-50050 |
US $262.08 |
||
|
43212
|
43212
43212-50010 Knuckle, Steering, Lh[05.1989 - 08.1992] UCF10 |
43212-50010 |
US $347.98 |
||
| replacements | |||||
|
43212
|
43212
43212-50050 Knuckle, Steering, Lh[05.1989 - 08.1992] UCF10 |
43212-50050 |
US $262.08 |
||
|
43212
|
43212
48331-50030
Bumper, Front Spring, No.1
[05.1989 - 08.1992] UCF10 |
48331-50030 |
— | ||
|
43212
|
43212
48331-50040 Bumper, Front Spring, No.1[05.1989 - 08.1992] UCF10 |
48331-50040 |
US $19.22 |
||
|
43212
|
43212
43212-50030 Knuckle, Steering, Lh[08.1992 - 10.1994] UCF10 |
43212-50030 |
US $347.98 |
||
| replacement | |||||
|
43212
|
43212
43212-50050 Knuckle, Steering, Lh[08.1992 - 10.1994] UCF10 |
43212-50050 |
US $262.08 |
||
|
43330
|
43330
43330-59015
Joint Assy, Lower Ball, Front
[05.1989 - 08.1992] UCF10 RH |
43330-59015 |
— | ||
| replacement | |||||
|
43330
|
43330
43330-59016 Joint Assy, Lower Ball, Front[05.1989 - 08.1992] UCF10 RH |
43330-59016 |
US $146.93 |
||
|
43330
|
43330
43330-59025
Joint Assy, Lower Ball, Front
[08.1992 - 10.1994] UCF10 RH |
43330-59025 |
— | ||
| replacement | |||||
|
43330
|
43330
43330-59026 Joint Assy, Lower Ball, Front[08.1992 - 10.1994] UCF10 RH |
43330-59026 |
from US $85.90 |
||
|
43330
|
43330
43340-59015 Joint Assy, Lower Ball, Front[05.1989 - 08.1992] UCF10 LH |
43340-59015 |
US $87.36 |
||
| replacement | |||||
|
43330
|
43330
43340-59016 Joint Assy, Lower Ball, Front[05.1989 - 08.1992] UCF10 LH |
43340-59016 |
from US $85.90 |
||
|
43330
|
43330
43340-59025
Joint Assy, Lower Ball, Front
[08.1992 - 10.1994] UCF10 LH |
43340-59025 |
— | ||
| replacement | |||||
|
43330
|
43330
43340-59026 Joint Assy, Lower Ball, Front[08.1992 - 10.1994] UCF10 LH |
43340-59026 |
from US $85.90 |
||
|
43330D
|
43330D
90105-12141 Bolt (For Front Lower Ball Joint)[05.1989 - 10.1994] UCF10 |
90105-12141 |
from US $2.22 |
||
|
43330E
|
43330E
90171-16050 Nut, Castle (For Front Lower Ball Joint Setting)[05.1989 - 10.1994] UCF10 |
90171-16050 |
from US $3.20 |
||
|
48068A
|
48068A
90105-12101
Bolt(For Front Suspension Lower Arm)
[05.1989 - 10.1994] UCF10 |
90105-12101 |
— | ||
|
48068C
|
48068C
90179-12091 Nut(For Front Suspension Lower Arm)[05.1989 - 10.1994] UCF10 SHOCK ABSORBER SIDE |
90179-12091 |
from US $1.17 |
||
|
48068C
|
48068C
94115-71600
Nut(For Front Suspension Lower Arm)
[05.1989 - 10.1994] UCF10 BODY SIDE |
94115-71600 |
— | ||
| replacement | |||||
|
48068C
|
48068C
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)[05.1989 - 10.1994] UCF10 BODY SIDE |
94130-01602 |
from US $1.05 |
||
|
48190
|
48190
48190-50020
Cam Assy, Camber Adjust
[05.1989 - 10.1994] UCF10 |
48190-50020 |
— | ||
|
48198
|
48198
48198-50020 Cam, Camber Adjust, No.2[05.1989 - 10.1994] UCF10 |
48198-50020 |
US $5.68 |
||
|
48610
|
48610
48610-50010
Arm Assy, Front Suspension Upper, Rh
[05.1989 - 08.1992] UCF10 |
48610-50010 |
— | ||
| replacement | |||||
|
48610
|
48610
48610-50020
Arm Assy, Front Suspension Upper, Rh
[05.1989 - 08.1992] UCF10 |
48610-50020 |
— | ||
|
48610
|
48610
48610-50020
Arm Assy, Front Suspension Upper, Rh
[08.1992 - 10.1994] UCF10 |
48610-50020 |
— | ||
|
48610C
|
48610C
90105-12173 Bolt(For Suspension Upper Arm)[05.1989 - 01.1993] UCF10 |
90105-12173 |
US $5.24 |
||
|
48610C
|
48610C
90105-12258 Bolt(For Suspension Upper Arm)[01.1993 - 10.1994] UCF10 |
90105-12258 |
US $6.40 |
||
|
48610D
|
48610D
90171-12002 Nut, Castle(For Tie Rod End)[05.1989 - 10.1994] UCF10 |
90171-12002 |
from US $1.19 |
||
|
48620
|
48620
48620-50010 Arm Assy, Front Suspension, Lower Rh[05.1989 - 08.1992] UCF10 |
48620-50010 |
US $273.73 |
||
| replacements | |||||
|
48620
|
48620
43330-59016 Joint Assy, Lower Ball, Front[05.1989 - 08.1992] UCF10 |
43330-59016 |
US $146.93 |
||
|
48620
|
48620
48068-50010 Arm Sub-assy, Front Suspension, Lower No.1 Rh[05.1989 - 08.1992] UCF10 |
48068-50010 |
US $273.73 |
||
|
48620
|
48620
48620-50020 Arm Assy, Front Suspension, Lower Rh[08.1992 - 10.1994] UCF10 |
48620-50020 |
US $349.44 |
||
| replacements | |||||
|
48620
|
48620
43330-59026 Joint Assy, Lower Ball, Front[08.1992 - 10.1994] UCF10 |
43330-59026 |
from US $85.90 |
||
|
48620
|
48620
48068-50010 Arm Sub-assy, Front Suspension, Lower No.1 Rh[08.1992 - 10.1994] UCF10 |
48068-50010 |
US $273.73 |
||
|
48630
|
48630
48630-50010 Arm Assy, Front Suspension, Upper Lh[05.1989 - 08.1992] UCF10 |
48630-50010 |
US $368.37 |
||
| replacement | |||||
|
48630
|
48630
48630-50020
Arm Assy, Front Suspension, Upper Lh
[05.1989 - 08.1992] UCF10 |
48630-50020 |
— | ||
|
48630
|
48630
48630-50020
Arm Assy, Front Suspension, Upper Lh
[08.1992 - 10.1994] UCF10 |
48630-50020 |
— | ||
|
48640
|
48640
48640-50010 Arm Assy, Front Suspension Lower, Lh[05.1989 - 08.1992] UCF10 |
48640-50010 |
US $273.73 |
||
| replacements | |||||
|
48640
|
48640
43340-59016 Joint Assy, Lower Ball, Front[05.1989 - 08.1992] UCF10 |
43340-59016 |
from US $85.90 |
||
|
48640
|
48640
48069-50010 Arm Sub-assy, Front Suspension, Lower No.1 Lh[05.1989 - 08.1992] UCF10 |
48069-50010 |
US $273.73 |
||
|
48640
|
48640
48640-50020 Arm Assy, Front Suspension Lower, Lh[08.1992 - 10.1994] UCF10 |
48640-50020 |
US $349.44 |
||
| replacements | |||||
|
48640
|
48640
43340-59026 Joint Assy, Lower Ball, Front[08.1992 - 10.1994] UCF10 |
43340-59026 |
from US $85.90 |
||
|
48640
|
48640
48069-50010 Arm Sub-assy, Front Suspension, Lower No.1 Lh[08.1992 - 10.1994] UCF10 |
48069-50010 |
US $273.73 |
||
|
48654
|
48654
48654-50010 Bush, Lower Arm[05.1989 - 10.1994] UCF10 |
48654-50010 |
from US $28.12 |
||
|
9020116017
|
9020116017
90201-16017 WASHER |
90201-16017 |
from US $1.07 |
||
|
9025203008
|
9025203008
90252-03008 PIN COTTER |
90252-03008 |
US $1.12 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
|
9162961216
|
9162961216
91629-61216 New Genuine Part |
91629-61216 |
US $1.05 |
||
