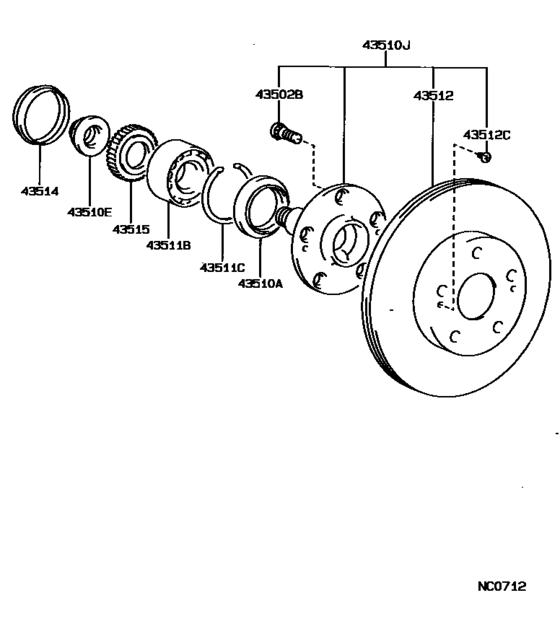

Front Axle Hub ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43502B
|
43502B
90942-02049 Bolt, Hub[05.1989 - 10.1992] UCF10 |
90942-02049 |
US $3.84 |
||
|
43502B
|
43502B
90942-02070 Bolt, Hub[10.1992 - 10.1994] UCF10 |
90942-02070 |
US $3.67 |
||
| replacements | |||||
|
43502B
|
43502B
90942-02049 Bolt, Hub[10.1992 - 10.1994] UCF10 |
90942-02049 |
US $3.84 |
||
|
43502B
|
43502B
90942-02082 Bolt, Hub[10.1992 - 10.1994] UCF10 |
90942-02082 |
from US $2.46 |
||
|
43510A
|
43510A
90311-50008 Seal, Oil (For Front Axle Hub)[05.1989 - 08.1992] UCF10 |
90311-50008 |
US $8.32 |
||
|
43510A
|
43510A
90311-50016 Seal, Oil (For Front Axle Hub)[08.1992 - 10.1994] UCF10 |
90311-50016 |
US $12.32 |
||
|
43510E
|
43510E
90179-24005 Nut (For Front Axle Shaft)[05.1989 - 08.1992] UCF10 |
90179-24005 |
from US $2.16 |
||
|
43510J
|
43510J
43510-50040 Hub & Disc Assy, Front Axle[05.1989 - 08.1990] UCF10 |
43510-50040 |
US $524.16 |
||
|
43510J
|
43510J
43510-50060 Hub & Disc Assy, Front Axle[08.1990 - 08.1992] UCF10 |
43510-50060 |
US $529.98 |
||
|
43510J
|
43510J
43510-50100 Hub & Disc Assy, Front Axle[10.1992 - 10.1994] UCF10 |
43510-50100 |
US $426.61 |
||
|
43510J
|
43510J
43510-50120 Hub & Disc Assy, Front Axle[08.1992 - 10.1992] UCF10 |
43510-50120 |
US $430.98 |
||
|
43511B
|
43511B
90369-35034
Bearing (For Front Axle Hub Rh)
[05.1989 - 08.1992] UCF10 |
90369-35034 |
— | ||
| replacement | |||||
|
43511B
|
43511B
90903-63006 Bearing (For Front Axle Hub)[05.1989 - 08.1992] UCF10 |
90903-63006 |
from US $75.93 |
||
|
43511B
|
43511B
90903-63006 Bearing (For Front Axle Hub)[11.1993 - 10.1994] UCF10 |
90903-63006 |
from US $75.93 |
||
|
43511C
|
43511C
90521-82001 Ring, Hole Snap (For Front Axle Hub)[05.1989 - 08.1992] UCF10 T=2.5 |
90521-82001 |
US $4.80 |
||
|
43512
|
43512
43512-30241 Disc, Front[08.1992 - 10.1992] UCF10 |
43512-30241 |
US $232.96 |
||
| replacement | |||||
|
43512
|
43512
43512-50100 Disc, Front[08.1992 - 10.1992] UCF10 |
43512-50100 |
US $239.04 |
||
|
43512
|
43512
43512-50040 Disc, Front[05.1989 - 08.1990] UCF10 |
43512-50040 |
US $215.49 |
||
|
43512
|
43512
43512-50060 Disc, Front[08.1990 - 08.1992] UCF10 |
43512-50060 |
US $222.77 |
||
|
43512
|
43512
43512-50100 Disc, Front[10.1992 - 10.1994] UCF10 |
43512-50100 |
US $239.04 |
||
|
43512C
|
43512C
90155-60002 Screw (For Rear Disc)[05.1989 - 10.1994] UCF10 |
90155-60002 |
US $1.92 |
||
|
43514
|
43514
43514-50010 Cap, Front Hub Grease[05.1989 - 08.1992] UCF10 |
43514-50010 |
from US $10.45 |
||
|
43515
|
43515
43515-50010 Rotor, Skid Control, Front[05.1989 - 10.1994] UCF10 |
43515-50010 |
US $15.03 |
||
