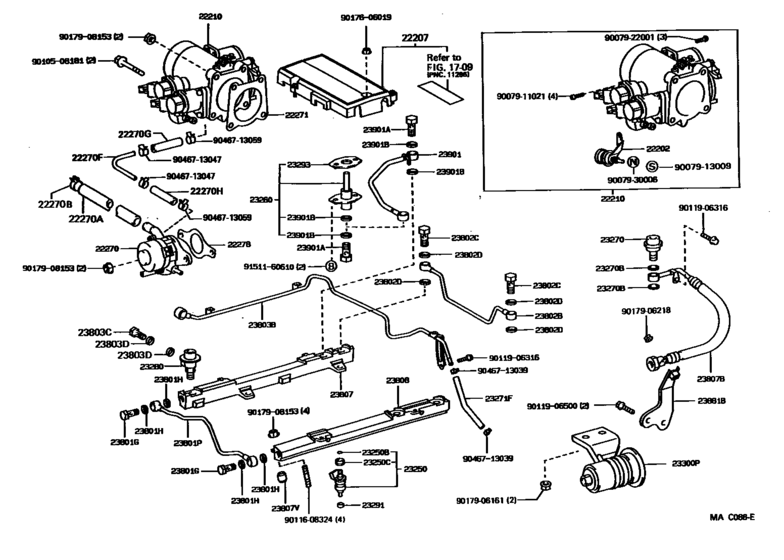

Fuel Injection System ([05.1989 - 08.1992] (8905-9208)) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-50011
Dash Pot Sub-Assy
[05.1989 - 08.1992] 1UZFE..UCF10 |
22202-50011 |
— | ||
|
22202
|
22202
22202-50070
Dash Pot Sub-Assy
[08.1992 - 10.1994] 1UZFE..UCF10 |
22202-50070 |
— | ||
|
22207
|
22207
22207-50010
Cover Sub-Assy, Throttle Body
[05.1989 - 08.1992] 1UZFE..UCF10 |
22207-50010 |
— | ||
|
22207
|
22207
22207-50020 Cover Sub-Assy, Throttle BodyTHROTTLE BODY [05.1989 - 08.1992] 1UZFE..UCF10 W(TRACTION CONTROL) |
22207-50020 |
US $34.94 |
||
|
22210
|
22210
22030-50010 Body Assy, ThrottleTHROTTLE [05.1989 - 08.1990] 1UZFE..UCF10 W(TRACTION CONTROL) |
22030-50010 |
US $1,907.36 |
||
|
22210
|
22210
22030-50011 Body Assy, ThrottleTHROTTLE [08.1990 - 08.1992] 1UZFE..UCF10 W(TRACTION CONTROL) |
22030-50011 |
US $1,878.24 |
||
| replacement | |||||
|
22210
|
22210
22030-50070 Body Assy, ThrottleTHROTTLE [08.1990 - 08.1992] 1UZFE..UCF10 W(TRACTION CONTROL) |
22030-50070 |
US $1,907.36 |
||
|
22210
|
22210
22030-50070 Body Assy, ThrottleTHROTTLE [08.1992 - 10.1994] 1UZFE..UCF10..CND; 1UZFE..UCF10..USA W(TRACTION CONTROL) |
22030-50070 |
US $1,907.36 |
||
|
22210
|
22210
22030-50072 Body Assy, ThrottleTHROTTLE [09.1994 - 10.1994] 1UZFE..UCF10..CND; 1UZFE..UCF10..USA W(TRACTION CONTROL) |
22030-50072 |
US $1,907.36 |
||
|
22210
|
22210
22210-50010 Body Assy, ThrottleTHROTTLE [05.1989 - 08.1990] 1UZFE..UCF10 |
22210-50010 |
US $685.78 |
||
|
22210
|
22210
22210-50011 Body Assy, ThrottleTHROTTLE [08.1990 - 08.1992] 1UZFE..UCF10 |
22210-50011 |
US $679.95 |
||
| replacement | |||||
|
22210
|
22210
22210-50080 Body Assy, ThrottleTHROTTLE [08.1990 - 08.1992] 1UZFE..UCF10 |
22210-50080 |
US $679.95 |
||
|
22210
|
22210
22210-50080 Body Assy, ThrottleTHROTTLE [08.1992 - 10.1994] 1UZFE..UCF10..USA |
22210-50080 |
US $679.95 |
||
|
22210
|
22210
22210-50082 Body Assy, ThrottleTHROTTLE [09.1994 - 10.1994] 1UZFE..UCF10..USA |
22210-50082 |
US $679.95 |
||
|
22270
|
22270
22270-50010
Valve Assy, Idle Speed Control(For Thlottle Body)
[05.1989 - 08.1992] 1UZFE..UCF10 |
22270-50010 |
— | ||
|
22270
|
22270
22270-50020
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1992 - 10.1994] 1UZFE..UCF10 |
22270-50020 |
— | ||
|
22270A
|
22270A
17341-50010
Hose, Air, No.1(For Idle Speed Control Valve)
[05.1989 - 08.1992] 1UZFE..UCF10 |
17341-50010 |
— | ||
|
22270A
|
22270A
17341-50040
Hose, Air, No.1(For Idle Speed Control Valve)
[08.1992 - 10.1994] 1UZFE..UCF10 |
17341-50040 |
— | ||
|
22270B
|
22270B
90467-22007
Clip(For Ventilation Hose)
[05.1989 - 08.1992] 1UZFE..UCF10 |
90467-22007 |
— | ||
| replacement | |||||
|
22270B
|
22270B
96134-52100 Clip(For Ventilation Hose)[05.1989 - 08.1992] 1UZFE..UCF10 |
96134-52100 |
US $3.52 |
||
|
22270B
|
22270B
90467-26006
Clamp Or Clip(For Air Hose, No.1)
[08.1992 - 10.1994] 1UZFE..UCF10 |
90467-26006 |
— | ||
| replacement | |||||
|
22270B
|
22270B
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1992 - 10.1994] 1UZFE..UCF10 |
96134-52600 |
from US $3.84 |
||
|
22270F
|
22270F
16289-50010 Pipe, Water By-Pass, No.5[05.1989 - 05.1993] 1UZFE..UCF10 |
16289-50010 |
US $9.03 |
||
|
22270G
|
22270G
90910-05204
Hose(For Water By-Pass Pipe No.5)
[05.1989 - 05.1993] 1UZFE..UCF10 |
90910-05204 |
— | ||
|
22270H
|
22270H
90910-05205
Hose(For Water By-Pass Pipe No.5)
[05.1989 - 05.1993] 1UZFE..UCF10 |
90910-05205 |
— | ||
|
22271
|
22271
22271-50010 Gasket, Throttle Body[05.1989 - 10.1994] 1UZFE..UCF10 |
22271-50010 |
from US $5.13 |
||
|
22278
|
22278
22278-50010 Gasket, Idle Speed Control Valve[05.1989 - 08.1994] 1UZFE..UCF10 |
22278-50010 |
US $4.80 |
||
|
22278
|
22278
22278-50011
Gasket, Idle Speed Control Valve
[08.1994 - 10.1994] 1UZFE..UCF10 |
22278-50011 |
— | ||
|
23250
|
23250
23209-50010 Injector Assy, Fuel[05.1989 - 08.1992] 1UZFE..UCF10 |
23209-50010 |
US $276.64 |
||
|
23250
|
23250
23209-50020 Injector Assy, Fuel[08.1992 - 10.1994] 1UZFE..UCF10 |
23209-50020 |
US $256.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[05.1989 - 10.1994] 1UZFE..UCF10 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[05.1989 - 10.1994] 1UZFE..UCF10 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-59035 Injector Assy, Cold Start Fuel[05.1989 - 08.1992] 1UZFE..UCF10 |
23260-59035 |
US $136.86 |
||
| replacement | |||||
|
23260
|
23260
23260-59045 Injector Assy, Cold Start Fuel[05.1989 - 08.1992] 1UZFE..UCF10 |
23260-59045 |
US $136.86 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[05.1989 - 10.1994] 1UZFE..UCF10 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[05.1989 - 10.1994] 1UZFE..UCF10 |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[05.1989 - 05.1991] 1UZFE..UCF10 DAMPER SIDE |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[05.1989 - 05.1991] 1UZFE..UCF10 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[05.1991 - 10.1994] 1UZFE..UCF10 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[05.1989 - 05.1991] 1UZFE..UCF10 DELIVERRY PIPE SIDE |
90430-12005 |
from US $0.76 |
||
|
23270B
|
23270B
90430-12026 Gasket[05.1991 - 08.1992] 1UZFE..UCF10 DELIVERRY PIPE SIDE |
90430-12026 |
from US $0.88 |
||
|
23271F
|
23271F
23271-50011 Hose, FuelFUEL [05.1989 - 08.1992] 1UZFE..UCF10 |
23271-50011 |
US $10.92 |
||
|
23271F
|
23271F
23271-50012 Hose, FuelFUEL [08.1992 - 10.1994] 1UZFE..UCF10 |
23271-50012 |
US $10.92 |
||
|
23280
|
23280
23280-50010 Regulator Assy, Fuel Pressure[05.1989 - 10.1994] 1UZFE..UCF10 |
23280-50010 |
US $164.81 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.1989 - 10.1994] 1UZFE..UCF10 |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-50010
Gasket, Cold Start Injector
[05.1989 - 08.1992] 1UZFE..UCF10 |
23293-50010 |
— | ||
|
23300P
|
23300P
23300-50020 Filter, Fuel(For Efi)[05.1989 - 10.1994] 1UZFE..UCF10 |
23300-50020 |
US $103.38 |
||
|
23801G
|
23801G
90401-12023 Bolt, Union(For Fuel Pipe)[05.1989 - 10.1994] 1UZFE..UCF10 |
90401-12023 |
US $5.44 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[05.1989 - 05.1991] 1UZFE..UCF10 |
90430-12005 |
from US $0.76 |
||
|
23801H
|
23801H
90430-12026 Gasket[05.1991 - 10.1994] 1UZFE..UCF10 |
90430-12026 |
from US $0.88 |
||
|
23801P
|
23801P
23801-50010
Pipe Sub-Assy, Fuel, No.1
[05.1989 - 10.1994] 1UZFE..UCF10 |
23801-50010 |
— | ||
|
23802B
|
23802B
23802-50010
Pipe Sub-Assy, Fuel, No.2
[05.1989 - 08.1992] 1UZFE..UCF10 |
23802-50010 |
— | ||
| replacement | |||||
|
23802B
|
23802B
23802-50011 Pipe Sub-Assy, Fuel, No.2[05.1989 - 08.1992] 1UZFE..UCF10 |
23802-50011 |
US $41.64 |
||
|
23802B
|
23802B
23802-50011 Pipe Sub-Assy, Fuel, No.2[08.1992 - 10.1994] 1UZFE..UCF10 |
23802-50011 |
US $41.64 |
||
|
23802C
|
23802C
90401-12023 Bolt, Union(For Fuel Pipe)[05.1989 - 10.1994] 1UZFE..UCF10 |
90401-12023 |
US $5.44 |
||
|
23802D
|
23802D
90430-12005 Gasket(For Water Hole)[05.1989 - 05.1991] 1UZFE..UCF10 |
90430-12005 |
from US $0.76 |
||
|
23802D
|
23802D
90430-12026 Gasket[05.1991 - 10.1994] 1UZFE..UCF10 |
90430-12026 |
from US $0.88 |
||
|
23803B
|
23803B
23803-50010
Pipe Sub-Assy, Fuel, No.3
[05.1989 - 08.1992] 1UZFE..UCF10 |
23803-50010 |
— | ||
| replacement | |||||
|
23803B
|
23803B
23803-50060 Pipe Sub-Assy, Fuel, No.3FUEL, NO.3 [05.1989 - 08.1992] 1UZFE..UCF10 |
23803-50060 |
US $90.27 |
||
|
23803B
|
23803B
23803-50060 Pipe Sub-Assy, Fuel, No.3FUEL, NO.3 [08.1992 - 10.1994] 1UZFE..UCF10 |
23803-50060 |
US $90.27 |
||
|
23803C
|
23803C
90401-10038 Bolt, Union(For Fuel Pipe Or Hose Set)[05.1989 - 10.1994] 1UZFE..UCF10 |
90401-10038 |
US $3.06 |
||
|
23803D
|
23803D
90430-10012 Gasket(For Turbo Oil Inlet Pipe)[05.1991 - 10.1994] 1UZFE..UCF10 |
90430-10012 |
US $2.40 |
||
|
23803D
|
23803D
90430-10204 Gasket(For Water Hole)[05.1989 - 05.1991] 1UZFE..UCF10 |
90430-10204 |
from US $3.68 |
||
|
23807
|
23807
23807-50010 Pipe Sub-Assy, Fuel Delivery[05.1989 - 08.1992] 1UZFE..UCF10 |
23807-50010 |
US $173.26 |
||
| replacement | |||||
|
23807
|
23807
23807-50011 Pipe Sub-Assy, Fuel Delivery[05.1989 - 08.1992] 1UZFE..UCF10 |
23807-50011 |
US $171.81 |
||
|
23807
|
23807
23807-50020 Pipe Sub-Assy, Fuel Delivery[08.1992 - 10.1994] 1UZFE..UCF10 |
23807-50020 |
US $170.35 |
||
| replacement | |||||
|
23807
|
23807
23807-50021 Pipe Sub-Assy, Fuel Delivery[08.1992 - 10.1994] 1UZFE..UCF10 |
23807-50021 |
US $170.35 |
||
|
23807B
|
23807B
90923-01362
Hose, Fuel Delivery Pipe
[05.1989 - 10.1994] 1UZFE..UCF10 |
90923-01362 |
— | ||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[05.1989 - 10.1994] 1UZFE..UCF10 |
90561-08029 |
from US $1.60 |
||
|
23808
|
23808
23808-50010 Pipe Sub-Assy, Fuel Delivery, No.2[05.1989 - 10.1994] 1UZFE..UCF10 |
23808-50010 |
US $154.34 |
||
| replacement | |||||
|
23808
|
23808
23808-50011 Pipe Sub-Assy, Fuel Delivery, No.2[05.1989 - 10.1994] 1UZFE..UCF10 |
23808-50011 |
US $154.34 |
||
|
23881B
|
23881B
23881-50010 Bracket, Fuel HoseFUEL HOSE [05.1989 - 10.1994] 1UZFE..UCF10 |
23881-50010 |
US $9.90 |
||
|
23901
|
23901
23901-50010
Tube Sub-Assy, Fuel
[05.1989 - 08.1992] 1UZFE..UCF10 |
23901-50010 |
— | ||
|
23901A
|
23901A
90401-08007
Bolt, Union(For Fuel Tube)
[05.1989 - 08.1992] 1UZFE..UCF10 |
90401-08007 |
— | ||
|
23901B
|
23901B
90430-08005 Gasket[05.1989 - 05.1991] 1UZFE..UCF10 |
90430-08005 |
US $2.24 |
||
|
23901B
|
23901B
90430-08012 Gasket[05.1991 - 08.1992] 1UZFE..UCF10 |
90430-08012 |
US $1.92 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9007913009
|
9007913009
90079-13009 Screw, Dash Pot Adjusting |
90079-13009 |
US $1.46 |
||
|
9007922001
|
9007922001
90079-22001 New Genuine Part |
90079-22001 |
US $1.60 |
||
| replacement | |||||
|
9007922001
|
9007922001
90079-22006 New Genuine Part |
90079-22006 |
US $1.46 |
||
|
9007930006
|
9007930006
90079-30006 New Genuine Part |
90079-30006 |
US $1.05 |
||
|
9010508181
|
9010508181
90105-08181
Bolt(For Alternator)
|
90105-08181 |
— | ||
| replacement | |||||
|
9010508181
|
9010508181
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9011608324
|
9011608324
90116-08324 New Genuine Part |
90116-08324 |
US $1.49 |
||
|
9011906316
|
9011906316
90119-06316 New Genuine Part |
90119-06316 |
US $1.75 |
||
|
9011906500
|
9011906500
90119-06500 New Genuine Part |
90119-06500 |
US $1.60 |
||
|
9017606019
|
9017606019
90176-06019 Nut (For Rear Wiper Arm Setting) |
90176-06019 |
US $1.76 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017906218
|
9017906218
90179-06218
New Genuine Part
|
90179-06218 |
— | ||
| replacement | |||||
|
9017906218
|
9017906218
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.90 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9046713039
|
9046713039
90467-13039
Clamp, Hose
|
90467-13039 |
— | ||
| replacement | |||||
|
9046713039
|
9046713039
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713047
|
9046713047
90467-13047
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
90467-13047 |
— | ||
| replacement | |||||
|
9046713047
|
9046713047
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713059
|
9046713059
90467-13059
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13059 |
— | ||
| replacement | |||||
|
9046713059
|
9046713059
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13054 |
from US $0.96 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
