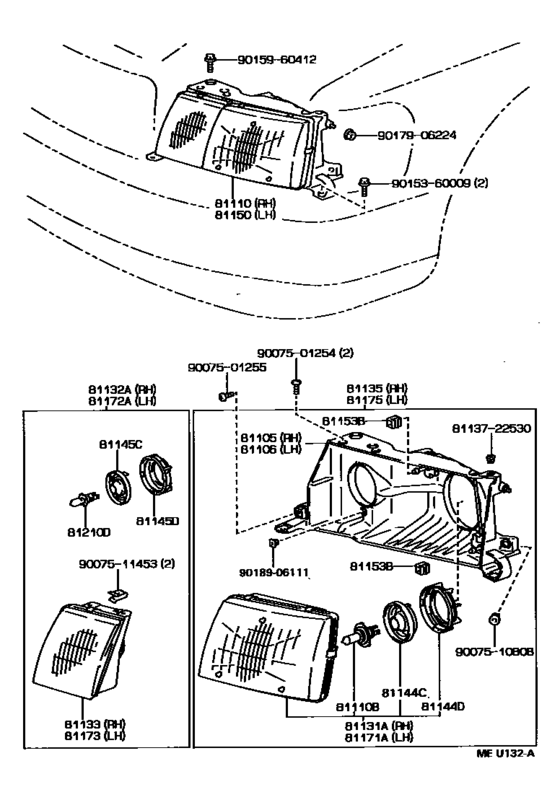

Headlamp ([08.1992 - ] (9208- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-50010 Housing Sub-Assy, Headlamp, RhHEADLAMP, RH [05.1989 - 10.1994] UCF10 |
81105-50010 |
US $78.62 |
||
|
81106
|
81106
81106-50010 Housing Sub-Assy, Headlamp, LhHEADLAMP, LH [05.1989 - 10.1994] UCF10 |
81106-50010 |
US $78.62 |
||
|
81110
|
81110
81110-50010 Headlamp Assy, Rh[05.1989 - 01.1990] UCF10 |
81110-50010 |
US $685.78 |
||
| replacement | |||||
|
81110
|
81110
81110-50011 Headlamp Assy, Rh[05.1989 - 01.1990] UCF10 |
81110-50011 |
US $681.41 |
||
|
81110
|
81110
81110-50011 Headlamp Assy, Rh[01.1990 - 08.1992] UCF10 |
81110-50011 |
US $681.41 |
||
|
81110
|
81110
81110-50060 Headlamp Assy, Rh[08.1992 - 06.1993] UCF10 |
81110-50060 |
US $681.41 |
||
| replacement | |||||
|
81110
|
81110
81110-50061 Headlamp Assy, Rh[08.1992 - 06.1993] UCF10 |
81110-50061 |
US $681.41 |
||
|
81110
|
81110
81110-50061 Headlamp Assy, Rh[06.1993 - 10.1994] UCF10 |
81110-50061 |
US $681.41 |
||
|
81110B
|
81110B
90981-13032 Bulb(For Headlamp, No.1)NO.1) [05.1989 - 08.1992] UCF10 12V 65/45W,*HAL,*WH |
90981-13032 |
from US $36.84 |
||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.1992 - 10.1994] UCF10 12V 60/55W,HALOGEN |
90981-13058 |
from US $30.40 |
||
| replacement | |||||
|
81110B
|
81110B
90084-98033 Bulb(For Headlamp, No.1)NO.1) [08.1992 - 10.1994] UCF10 12V 60/55W,HALOGEN |
90084-98033 |
US $52.88 |
||
|
81131A
|
81131A
81131-50010 Unit, Headlamp, Rh[05.1989 - 01.1990] UCF10 |
81131-50010 |
US $374.19 |
||
| replacement | |||||
|
81131A
|
81131A
81131-50011
Unit, Headlamp, Rh
[05.1989 - 01.1990] UCF10 |
81131-50011 |
— | ||
|
81131A
|
81131A
81131-50011
Unit, Headlamp, Rh
[01.1990 - 08.1992] UCF10 |
81131-50011 |
— | ||
|
81131A
|
81131A
81131-50060 Unit, Headlamp, Rh[08.1992 - 06.1993] UCF10 |
81131-50060 |
US $368.37 |
||
| replacement | |||||
|
81131A
|
81131A
81131-50061 Unit, Headlamp, Rh[08.1992 - 06.1993] UCF10 |
81131-50061 |
US $368.37 |
||
|
81131A
|
81131A
81131-50061 Unit, Headlamp, Rh[06.1993 - 10.1994] UCF10 |
81131-50061 |
US $368.37 |
||
|
81132A
|
81132A
81132-50010
Lamp, Fog, Rh
[05.1989 - 08.1992] UCF10 |
81132-50010 |
— | ||
|
81132A
|
81132A
81132-50060 Lamp, Fog, Rh[08.1992 - 06.1993] UCF10 |
81132-50060 |
US $247.52 |
||
| replacement | |||||
|
81132A
|
81132A
81132-50061 Lamp, Fog, Rh[08.1992 - 06.1993] UCF10 |
81132-50061 |
US $247.52 |
||
|
81132A
|
81132A
81132-50061 Lamp, Fog, Rh[06.1993 - 10.1994] UCF10 |
81132-50061 |
US $247.52 |
||
|
81133
|
81133
81133-50010
Unit Assy, Fog, Rh
[05.1989 - 08.1992] UCF10 |
81133-50010 |
— | ||
|
81133
|
81133
81133-50060 Unit Assy, Fog, Rh[08.1992 - 06.1993] UCF10 |
81133-50060 |
US $200.93 |
||
| replacement | |||||
|
81133
|
81133
81133-50061 Unit Assy, Fog, Rh[08.1992 - 06.1993] UCF10 |
81133-50061 |
US $200.93 |
||
|
81133
|
81133
81133-50061 Unit Assy, Fog, Rh[06.1993 - 10.1994] UCF10 |
81133-50061 |
US $200.93 |
||
|
81135
|
81135
81130-50010
Unit Assy, Headlamp, Rh
[05.1989 - 01.1990] UCF10 |
81130-50010 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-50011 Unit Assy, Headlamp, Rh[05.1989 - 01.1990] UCF10 |
81130-50011 |
US $448.45 |
||
|
81135
|
81135
81130-50011 Unit Assy, Headlamp, Rh[01.1990 - 08.1992] UCF10 |
81130-50011 |
US $448.45 |
||
|
81135
|
81135
81130-50060 Unit Assy, Headlamp, Rh[08.1992 - 06.1993] UCF10 |
81130-50060 |
US $448.45 |
||
| replacement | |||||
|
81135
|
81135
81130-50061 Unit Assy, Headlamp, Rh[08.1992 - 06.1993] UCF10 |
81130-50061 |
US $448.45 |
||
|
81135
|
81135
81130-50061 Unit Assy, Headlamp, Rh[06.1993 - 10.1994] UCF10 |
81130-50061 |
US $448.45 |
||
|
81144C
|
81144C
90075-99015 Cover, Headlamp Socket[05.1989 - 08.1992] UCF10 |
90075-99015 |
US $8.91 |
||
|
81144C
|
81144C
90075-99094 Cover, Headlamp SocketHEADLAMP SOCKET [08.1992 - 10.1994] UCF10 |
90075-99094 |
US $9.17 |
||
|
81144D
|
81144D
90075-99010 Cap, Headlamp LockingHEADLAMP LOCKING [05.1989 - 08.1992] UCF10 |
90075-99010 |
US $0.87 |
||
|
81144D
|
81144D
90075-99095 Cap, Headlamp LockingHEADLAMP LOCKING [08.1992 - 10.1994] UCF10 |
90075-99095 |
US $5.68 |
||
|
81145C
|
81145C
90075-99072 Cover, Headlamp Socket[08.1992 - 10.1994] UCF10 |
90075-99072 |
US $9.32 |
||
|
81145D
|
81145D
90075-99073 Cap, Headlamp Locking[08.1992 - 10.1994] UCF10 |
90075-99073 |
US $5.68 |
||
|
81150
|
81150
81150-50010 Headlamp Assy, Lh[05.1989 - 01.1990] UCF10 |
81150-50010 |
US $685.78 |
||
| replacement | |||||
|
81150
|
81150
81150-50011 Headlamp Assy, Lh[05.1989 - 01.1990] UCF10 |
81150-50011 |
US $681.41 |
||
|
81150
|
81150
81150-50011 Headlamp Assy, Lh[01.1990 - 08.1992] UCF10 |
81150-50011 |
US $681.41 |
||
|
81150
|
81150
81150-50060 Headlamp Assy, Lh[08.1992 - 06.1993] UCF10 |
81150-50060 |
US $681.41 |
||
| replacement | |||||
|
81150
|
81150
81150-50061 Headlamp Assy, Lh[08.1992 - 06.1993] UCF10 |
81150-50061 |
US $681.41 |
||
|
81150
|
81150
81150-50061 Headlamp Assy, Lh[06.1993 - 10.1994] UCF10 |
81150-50061 |
US $681.41 |
||
|
81153B
|
81153B
90075-10806 Bearing, Headlamp[05.1989 - 10.1994] UCF10 |
90075-10806 |
US $2.33 |
||
|
81171A
|
81171A
81171-50010 Unit, Headlamp, Lh[05.1989 - 01.1990] UCF10 |
81171-50010 |
US $374.19 |
||
| replacement | |||||
|
81171A
|
81171A
81171-50011
Unit, Headlamp, Lh
[05.1989 - 01.1990] UCF10 |
81171-50011 |
— | ||
|
81171A
|
81171A
81171-50011
Unit, Headlamp, Lh
[01.1990 - 08.1992] UCF10 |
81171-50011 |
— | ||
|
81171A
|
81171A
81171-50060 Unit, Headlamp, Lh[08.1992 - 06.1993] UCF10 |
81171-50060 |
US $368.37 |
||
| replacement | |||||
|
81171A
|
81171A
81171-50061 Unit, Headlamp, Lh[08.1992 - 06.1993] UCF10 |
81171-50061 |
US $368.37 |
||
|
81171A
|
81171A
81171-50061 Unit, Headlamp, Lh[06.1993 - 10.1994] UCF10 |
81171-50061 |
US $368.37 |
||
|
81172A
|
81172A
81172-50010
Lamp, Fog, Lh
[05.1989 - 08.1992] UCF10 |
81172-50010 |
— | ||
|
81172A
|
81172A
81172-50060 Lamp, Fog, Lh[08.1992 - 06.1993] UCF10 |
81172-50060 |
US $247.52 |
||
| replacement | |||||
|
81172A
|
81172A
81172-50061 Lamp, Fog, Lh[08.1992 - 06.1993] UCF10 |
81172-50061 |
US $247.52 |
||
|
81172A
|
81172A
81172-50061 Lamp, Fog, Lh[06.1993 - 10.1994] UCF10 |
81172-50061 |
US $247.52 |
||
|
81173
|
81173
81173-50010
Unit Assy, Foglamp, Lh
[05.1989 - 08.1992] UCF10 |
81173-50010 |
— | ||
|
81173
|
81173
81173-50060 Unit Assy, Foglamp, Lh[08.1992 - 06.1993] UCF10 |
81173-50060 |
US $200.93 |
||
| replacement | |||||
|
81173
|
81173
81173-50061 Unit Assy, Foglamp, Lh[08.1992 - 06.1993] UCF10 |
81173-50061 |
US $200.93 |
||
|
81173
|
81173
81173-50061 Unit Assy, Foglamp, Lh[06.1993 - 10.1994] UCF10 |
81173-50061 |
US $200.93 |
||
|
81175
|
81175
81170-50010
Unit Assy, Headlamp, Lh
[05.1989 - 01.1990] UCF10 |
81170-50010 |
— | ||
| replacement | |||||
|
81175
|
81175
81170-50011 Unit Assy, Headlamp, Lh[05.1989 - 01.1990] UCF10 |
81170-50011 |
US $448.45 |
||
|
81175
|
81175
81170-50011 Unit Assy, Headlamp, Lh[01.1990 - 08.1992] UCF10 |
81170-50011 |
US $448.45 |
||
|
81175
|
81175
81170-50060 Unit Assy, Headlamp, Lh[08.1992 - 06.1993] UCF10 |
81170-50060 |
US $448.45 |
||
| replacement | |||||
|
81175
|
81175
81170-50061 Unit Assy, Headlamp, Lh[08.1992 - 06.1993] UCF10 |
81170-50061 |
US $448.45 |
||
|
81175
|
81175
81170-50061 Unit Assy, Headlamp, Lh[06.1993 - 10.1994] UCF10 |
81170-50061 |
US $448.45 |
||
|
81210D
|
81210D
90981-13027 Bulb(For Headlamp, No.2)[05.1989 - 10.1994] UCF10 12V 55W,HALOGEN |
90981-13027 |
from US $8.56 |
||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
US $2.08 |
||
|
9007501254
|
9007501254
90075-01254 New Genuine Part |
90075-01254 |
US $1.60 |
||
|
9007501255
|
9007501255
90075-01255 New Genuine Part |
90075-01255 |
US $1.60 |
||
|
9007510808
|
9007510808
90075-10808 New Genuine Part |
90075-10808 |
US $2.77 |
||
|
9007511453
|
9007511453
90075-11453 New Genuine Part |
90075-11453 |
US $2.18 |
||
|
9015360009
|
9015360009
90153-60009 New Genuine Part |
90153-60009 |
US $1.60 |
||
|
9015960412
|
9015960412
90159-60412 New Genuine Part |
90159-60412 |
US $0.92 |
||
|
9017906224
|
9017906224
90179-06224
Direct
|
90179-06224 |
— | ||
| replacement | |||||
|
9017906224
|
9017906224
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906111
|
9018906111
90189-06111 CLIP |
90189-06111 |
from US $1.37 |
||
