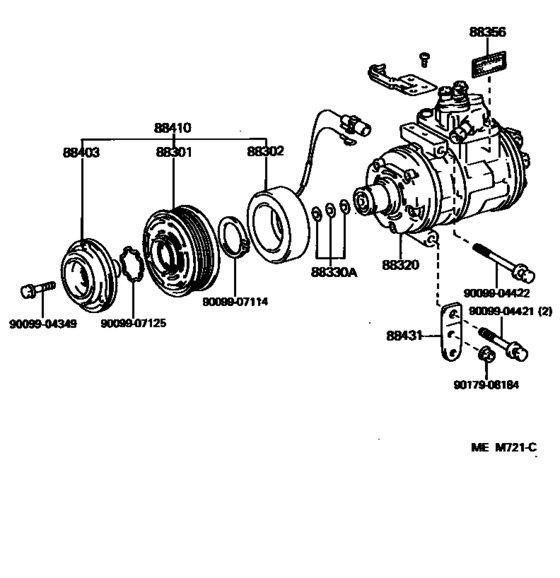

Heating & Air Conditioning - Compressor ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-50020
Rotor Sub-Assy, Magnet Clutch
[05.1989 - 10.1994] UCF10 |
88412-50020 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-60070
Rotor Sub-Assy, Magnet Clutch
[05.1989 - 10.1994] UCF10 |
88412-60070 |
— | ||
|
88302
|
88302
88411-50010
Stator Sub-Assy, Magnet Clutch
[05.1989 - 08.1992] UCF10 |
88411-50010 |
— | ||
|
88302
|
88302
88411-50030
Stator Sub-Assy, Magnet Clutch
[08.1992 - 10.1994] UCF10 |
88411-50030 |
— | ||
|
88320
|
88320
88320-50010
Compressor Assy, Cooler
[05.1989 - 10.1991] UCF10 |
88320-50010 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50031
Compressor Assy, Cooler
[05.1989 - 10.1991] UCF10 |
88320-50031 |
— | ||
|
88320
|
88320
88320-50030
Compressor Assy, Cooler
[10.1991 - 08.1992] UCF10 |
88320-50030 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50031
Compressor Assy, Cooler
[10.1991 - 08.1992] UCF10 |
88320-50031 |
— | ||
|
88320
|
88320
88320-50040
Compressor Assy, Cooler
[08.1992 - 10.1994] UCF10 |
88320-50040 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50041
Compressor Assy, Cooler
[08.1992 - 10.1994] UCF10 |
88320-50041 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.1989 - 10.1994] UCF10 |
88335-14020 |
from US $1.25 |
||
|
88356
|
88356
88356-12010
Plate, Caution
[05.1989 - 10.1991] UCF10 |
88356-12010 |
— | ||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[05.1989 - 08.1992] UCF10 |
88403-16011 |
US $82.47 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1992 - 10.1994] UCF10 |
88403-30290 |
US $86.66 |
||
|
88410
|
88410
88410-50010 Clutch Assy, MagnetMAGNET [05.1989 - 08.1992] UCF10 |
88410-50010 |
US $586.77 |
||
|
88410
|
88410
88410-50040 Clutch Assy, MagnetMAGNET [08.1992 - 10.1994] UCF10 |
88410-50040 |
US $586.77 |
||
|
88431
|
88431
88431-50010
Bracket, Compressor Mounting, No.1
[05.1989 - 11.1991] UCF10 |
88431-50010 |
— | ||
| replacement | |||||
|
88431
|
88431
88433-50010
Bracket, Compressor Mounting, No.1
[05.1989 - 11.1991] UCF10 |
88433-50010 |
— | ||
|
88431
|
88431
88433-50010
Bracket, Compressor Mounting, No.1
[11.1991 - 10.1994] UCF10 |
88433-50010 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904421
|
9009904421
90099-04421
BOLT WWASHER
|
90099-04421 |
— | ||
|
9009904422
|
9009904422
90099-04422
BOLT WWASHER
|
90099-04422 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
|
9017908184
|
9017908184
90179-08184 NUT |
90179-08184 |
US $1.44 |
||
