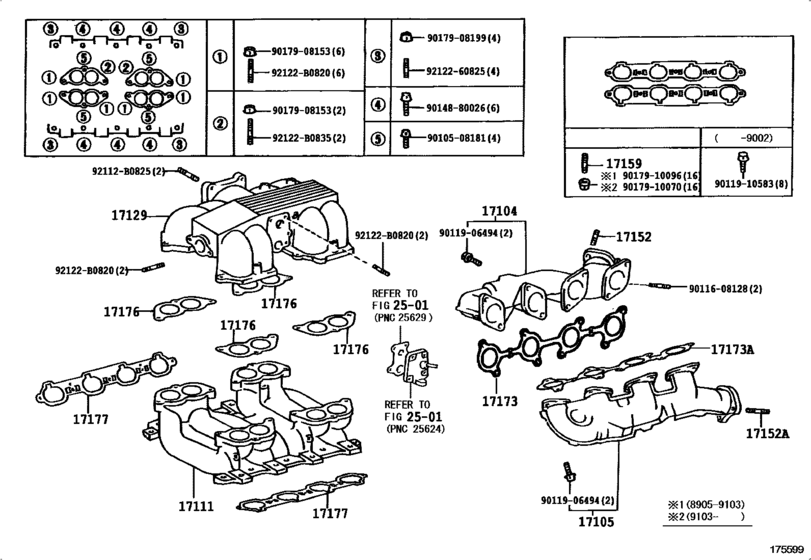

Manifold ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17140-50010 Manifold Sub-Assy, Exhaust, Rh[05.1989 - 07.1992] 1UZFE..UCF10 |
17140-50010 |
US $563.47 |
||
| replacement | |||||
|
17104
|
17104
17140-50011 Manifold Sub-Assy, Exhaust, Rh[05.1989 - 07.1992] 1UZFE..UCF10 |
17140-50011 |
US $560.56 |
||
|
17104
|
17104
17140-50011 Manifold Sub-Assy, Exhaust, Rh[07.1992 - 10.1994] 1UZFE..UCF10 |
17140-50011 |
US $560.56 |
||
|
17105
|
17105
17150-50010 Manifold Sub-Assy, Exhaust, Lh[05.1989 - 07.1992] 1UZFE..UCF10 |
17150-50010 |
US $563.47 |
||
| replacement | |||||
|
17105
|
17105
17150-50011 Manifold Sub-Assy, Exhaust, Lh[05.1989 - 07.1992] 1UZFE..UCF10 |
17150-50011 |
US $560.56 |
||
|
17105
|
17105
17150-50011 Manifold Sub-Assy, Exhaust, Lh[07.1992 - 10.1994] 1UZFE..UCF10 |
17150-50011 |
US $560.56 |
||
|
17111
|
17111
17111-50020 Manifold, Intake[05.1989 - 10.1994] 1UZFE..UCF10 |
17111-50020 |
US $685.78 |
||
|
17129
|
17129
17109-50010 Tank, Intake Air Surge[05.1989 - 08.1992] 1UZFE..UCF10 |
17109-50010 |
US $1,150.24 |
||
|
17129
|
17129
17109-50030 Tank, Intake Air Surge[08.1992 - 10.1994] 1UZFE..UCF10 |
17109-50030 |
US $1,153.15 |
||
|
17152
|
17152
90116-10159 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 03.1991] 1UZFE..UCF10 |
90116-10159 |
US $3.20 |
||
| replacement | |||||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 03.1991] 1UZFE..UCF10 |
90116-10017 |
from US $2.92 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[03.1991 - 10.1994] 1UZFE..UCF10 |
90126-10006 |
from US $4.78 |
||
|
17152A
|
17152A
90116-10159 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 03.1991] 1UZFE..UCF10 |
90116-10159 |
US $3.20 |
||
| replacement | |||||
|
17152A
|
17152A
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 03.1991] 1UZFE..UCF10 |
90116-10017 |
from US $2.92 |
||
|
17152A
|
17152A
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[03.1991 - 10.1994] 1UZFE..UCF10 |
90126-10006 |
from US $4.78 |
||
|
17159
|
17159
90116-10159 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 11.1989] 1UZFE..UCF10 |
90116-10159 |
US $3.20 |
||
| replacement | |||||
|
17159
|
17159
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1989 - 11.1989] 1UZFE..UCF10 |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[03.1991 - 07.1994] 1UZFE..UCF10 |
90126-10006 |
from US $4.78 |
||
|
17159
|
17159
90126-10015 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[07.1994 - 10.1994] 1UZFE..UCF10 |
90126-10015 |
from US $2.87 |
||
|
17173
|
17173
17173-50010 Gasket, Exhaust Manifold To Head[05.1989 - 10.1994] 1UZFE..UCF10 |
17173-50010 |
US $36.40 |
||
| replacement | |||||
|
17173
|
17173
17173-50011 Gasket, Exhaust Manifold To Head[05.1989 - 10.1994] 1UZFE..UCF10 |
17173-50011 |
from US $33.42 |
||
|
17173A
|
17173A
17173-50010 Gasket, Exhaust Manifold To Head[05.1989 - 10.1994] 1UZFE..UCF10 |
17173-50010 |
US $36.40 |
||
| replacement | |||||
|
17173A
|
17173A
17173-50011 Gasket, Exhaust Manifold To Head[05.1989 - 10.1994] 1UZFE..UCF10 |
17173-50011 |
from US $33.42 |
||
|
17176
|
17176
17176-50020
Gasket, Air Surge Tank To Intake Manifold
[05.1989 - 10.1994] 1UZFE..UCF10 |
17176-50020 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-50021 Gasket, Air Surge Tank To Intake Manifold[05.1989 - 10.1994] 1UZFE..UCF10 |
17176-50021 |
from US $7.66 |
||
|
17177
|
17177
17171-50010
Gasket, Intake Manifold To Head, No.1
[05.1989 - 10.1994] 1UZFE..UCF10 |
17171-50010 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-50011 Gasket, Intake Manifold To Head, No.1[05.1989 - 10.1994] 1UZFE..UCF10 |
17171-50011 |
from US $24.67 |
||
|
92112B0825
|
92112B0825
92112-B0825 New Genuine Part |
92112-B0825 |
US $2.18 |
||
| replacement | |||||
|
92112B0825
|
92112B0825
92112-B0828 New Genuine Part |
92112-B0828 |
US $1.89 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
92122B0835
|
92122B0835
92122-B0835
Bolt, Stud
|
92122-B0835 |
— | ||
|
9010508181
|
9010508181
90105-08181
Bolt(For Alternator)
|
90105-08181 |
— | ||
| replacement | |||||
|
9010508181
|
9010508181
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9011608128
|
9011608128
90116-08128 Bolt, Stud(For Manifold Stay) |
90116-08128 |
US $4.16 |
||
|
9011906494
|
9011906494
90119-06494 New Genuine Part |
90119-06494 |
US $0.96 |
||
|
9011910583
|
9011910583
90119-10583 New Genuine Part |
90119-10583 |
US $2.62 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.64 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $1.15 |
||
|
9017908199
|
9017908199
90179-08199 Nut |
90179-08199 |
US $1.05 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.92 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9212260825
|
9212260825
92122-60825 Bolt, Stud(For Manifold To Carburetor) |
92122-60825 |
US $1.31 |
||
