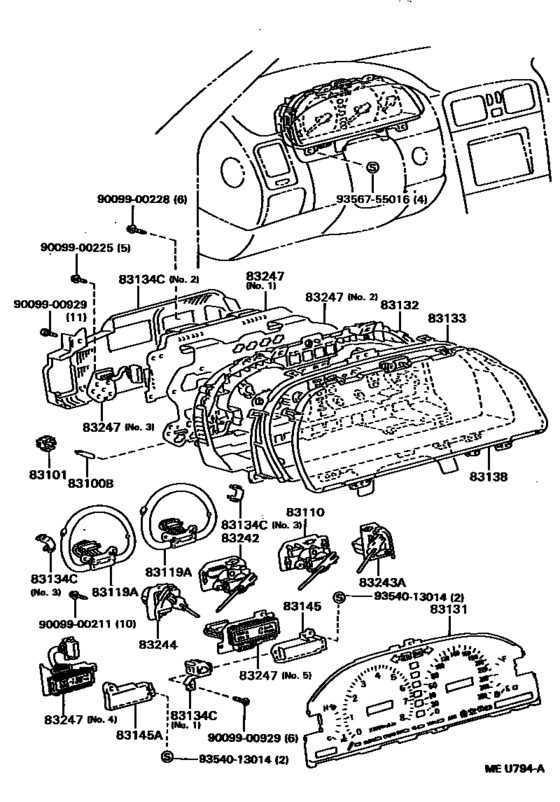

Meter ([08.1992 - ] (9208- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[08.1993 - 10.1994] UCF10 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[08.1992 - 10.1994] UCF10 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83119-50050
Bulb, Combination Meter, No.1
[05.1989 - 08.1992] UCF10 14V 3.0W,LONG LIFE |
83119-50050 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1992 - 08.1993] UCF10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1992 - 08.1993] UCF10 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83101
|
83101
83101-30050
Bulb, Combination Meter, No.1
[08.1993 - 10.1994] UCF10 14V 2.0W |
83101-30050 |
— | ||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[08.1992 - 10.1994] UCF10 14V 3.0W |
83101-32020 |
US $6.12 |
||
|
83110
|
83110
83110-50010 Speedometer Assy[05.1989 - 02.1990] UCF10 |
83110-50010 |
US $429.52 |
||
| replacement | |||||
|
83110
|
83110
83110-50011 Speedometer Assy[05.1989 - 02.1990] UCF10 |
83110-50011 |
US $429.52 |
||
|
83110
|
83110
83110-50011 Speedometer Assy[02.1990 - 08.1992] UCF10..USA |
83110-50011 |
US $429.52 |
||
|
83110
|
83110
83110-50130 Speedometer Assy[08.1992 - 10.1994] UCF10..USA |
83110-50130 |
US $366.91 |
||
|
83119A
|
83119A
83119-50010 Tube,cathode[05.1989 - 08.1992] UCF10 |
83119-50010 |
US $171.81 |
||
|
83119A
|
83119A
83119-50090 Tube,cathode[08.1992 - 10.1994] UCF10 |
83119-50090 |
US $41.50 |
||
|
83131
|
83131
83131-50010
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA W(AIR SUSPENSION & *TRC) |
83131-50010 |
— | ||
|
83131
|
83131
83131-50030
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA W(AIR SUSPENSION) |
83131-50030 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50010
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA W(AIR SUSPENSION) |
83131-50010 |
— | ||
|
83131
|
83131
83131-50050
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA W(TRACTION CONTROL) |
83131-50050 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50010
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA W(TRACTION CONTROL) |
83131-50010 |
— | ||
|
83131
|
83131
83131-50070
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA |
83131-50070 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50010
Dial, Meter, No.1
[05.1989 - 08.1992] UCF10..USA |
83131-50010 |
— | ||
|
83131
|
83131
83131-50850
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA W(AIR SUSPENSION) |
83131-50850 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50870
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA W(AIR SUSPENSION) |
83131-50870 |
— | ||
|
83131
|
83131
83131-50870
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA W(AIR SUSPENSION & *TRC) |
83131-50870 |
— | ||
|
83131
|
83131
83131-50890
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA |
83131-50890 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50870
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA |
83131-50870 |
— | ||
|
83131
|
83131
83131-5A010
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA W(TRACTION CONTROL) |
83131-5A010 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50870
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..USA W(TRACTION CONTROL) |
83131-50870 |
— | ||
|
83132
|
83132
83132-50010
Case, Combination Meter
[05.1989 - 12.1989] UCF10 W(AIR SUSPENSION) |
83132-50010 |
— | ||
|
83132
|
83132
83132-50030
Case, Combination Meter
[05.1989 - 12.1989] UCF10 |
83132-50030 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-50010
Case, Combination Meter
[05.1989 - 12.1989] UCF10 |
83132-50010 |
— | ||
|
83132
|
83132
83132-50110
Case, Combination Meter
[12.1989 - 08.1992] UCF10 |
83132-50110 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-50050
Case, Combination Meter
[12.1989 - 08.1992] UCF10 |
83132-50050 |
— | ||
|
83132
|
83132
83132-50150
Case, Combination Meter
[12.1989 - 08.1992] UCF10 W(AIR SUSPENSION) |
83132-50150 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-50050
Case, Combination Meter
[12.1989 - 08.1992] UCF10 W(AIR SUSPENSION) |
83132-50050 |
— | ||
|
83132
|
83132
83132-50190
Case, Combination Meter
[08.1992 - 10.1994] UCF10 |
83132-50190 |
— | ||
|
83133
|
83133
83133-50010
Plate, Combination Meter, No.1
[05.1989 - 08.1992] UCF10 |
83133-50010 |
— | ||
|
83133
|
83133
83133-50110
Plate, Combination Meter, No.1
[08.1992 - 10.1994] UCF10 |
83133-50110 |
— | ||
|
83134C
|
83134C
83134-50010
Cover, Speedometer
[05.1989 - 08.1992] UCF10 NO.1 |
83134-50010 |
— | ||
|
83134C
|
83134C
83134-50030
Cover, Speedometer
[05.1989 - 08.1992] UCF10 NO.2 |
83134-50030 |
— | ||
|
83134C
|
83134C
83134-50050
Cover, Speedometer
[05.1989 - 08.1992] UCF10 NO.3 |
83134-50050 |
— | ||
|
83134C
|
83134C
83134-50070
Cover, Speedometer
[05.1989 - 08.1992] UCF10 NO.4 |
83134-50070 |
— | ||
|
83134C
|
83134C
83134-50110
Cover, Speedometer
[05.1989 - 08.1992] UCF10 NO.5 |
83134-50110 |
— | ||
|
83134C
|
83134C
83134-50270
Cover, Speedometer
[08.1992 - 10.1994] UCF10 NO.1 |
83134-50270 |
— | ||
|
83134C
|
83134C
83134-50310
Cover, Speedometer
[08.1992 - 10.1994] UCF10 NO.2 |
83134-50310 |
— | ||
|
83134C
|
83134C
83134-50330
Cover, Speedometer
[08.1992 - 10.1994] UCF10 NO.3 |
83134-50330 |
— | ||
|
83138
|
83138
83138-50010
Glass, Speedometer
[05.1989 - 08.1992] UCF10 |
83138-50010 |
— | ||
|
83138
|
83138
83138-50070
Glass, Speedometer
[08.1992 - 10.1994] UCF10 |
83138-50070 |
— | ||
|
83145
|
83145
83145-50010
Lens, Meter, No.1
[05.1989 - 08.1992] UCF10 |
83145-50010 |
— | ||
|
83145
|
83145
83145-50110
Lens, Meter, No.1
[08.1992 - 10.1994] UCF10 |
83145-50110 |
— | ||
|
83145A
|
83145A
83145-50130
Lens, Meter, No.2
[08.1992 - 10.1994] UCF10 |
83145-50130 |
— | ||
|
83242
|
83242
83242-50010
Tachometer Assy, Engine
[05.1989 - 08.1992] UCF10 |
83242-50010 |
— | ||
|
83242
|
83242
83242-50050
Tachometer Assy, Engine
[08.1992 - 10.1994] UCF10 |
83242-50050 |
— | ||
|
83243A
|
83243A
83243-50010 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [05.1989 - 08.1992] UCF10 |
83243-50010 |
US $221.31 |
||
|
83243A
|
83243A
83243-50070
Gauge Sub-Assy, Fuel Receiver
[08.1992 - 10.1994] UCF10 |
83243-50070 |
— | ||
|
83244
|
83244
83244-50010 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [05.1989 - 08.1992] UCF10 |
83244-50010 |
US $182 |
||
|
83244
|
83244
83244-50090 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1992 - 10.1994] UCF10 |
83244-50090 |
US $180.54 |
||
|
83247
|
83247
83134-50190
Plate, Meter Circuit
[05.1989 - 08.1992] UCF10 NO.1 |
83134-50190 |
— | ||
|
83247
|
83247
83247-50010
Plate, Meter Circuit
[05.1989 - 08.1992] UCF10..USA W(AIR SUSPENSION) OR W(AIR SUSPENSION & *TRC),NO.1 |
83247-50010 |
— | ||
|
83247
|
83247
83247-50050
Plate, Meter Circuit
[05.1989 - 12.1989] UCF10 NO.4 |
83247-50050 |
— | ||
|
83247
|
83247
83247-50070
Plate, Meter Circuit
[05.1989 - 08.1992] UCF10..USA NO.2 |
83247-50070 |
— | ||
|
83247
|
83247
83247-50090
Plate, Meter Circuit
[05.1989 - 12.1989] UCF10 NO.3 |
83247-50090 |
— | ||
|
83247
|
83247
83247-50110
Plate, Meter Circuit
[05.1989 - 12.1989] UCF10 W(TRACTION CONTROL),NO.3 |
83247-50110 |
— | ||
|
83247
|
83247
83247-50130
Plate, Meter Circuit
[05.1989 - 12.1989] UCF10 W(AIR SUSPENSION),NO.3 |
83247-50130 |
— | ||
|
83247
|
83247
83247-50150
Plate, Meter Circuit
[05.1989 - 12.1989] UCF10 W(AIR SUSPENSION & *TRC),NO.3 |
83247-50150 |
— | ||
|
83247
|
83247
83247-50590 Plate, Meter CircuitMETER CIRCUIT [12.1989 - 08.1992] UCF10 NO.3 |
83247-50590 |
US $605.70 |
||
|
83247
|
83247
83247-50610 Plate, Meter CircuitMETER CIRCUIT [12.1989 - 08.1992] UCF10 W(TRACTION CONTROL),NO.3 |
83247-50610 |
US $605.70 |
||
|
83247
|
83247
83247-50630 Plate, Meter CircuitMETER CIRCUIT [12.1989 - 08.1992] UCF10 W(AIR SUSPENSION),NO.3 |
83247-50630 |
US $605.70 |
||
|
83247
|
83247
83247-50650 Plate, Meter CircuitMETER CIRCUIT [12.1989 - 08.1992] UCF10 W(AIR SUSPENSION & *TRC),NO.3 |
83247-50650 |
US $605.70 |
||
|
83247
|
83247
83247-50770
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10 NO.3 |
83247-50770 |
— | ||
|
83247
|
83247
83247-5A010 Plate, Meter CircuitMETER CIRCUIT [08.1992 - 10.1994] UCF10 NO.5 |
83247-5A010 |
US $138.32 |
||
|
83247
|
83247
83247-5A030 Plate, Meter CircuitMETER CIRCUIT [08.1992 - 10.1994] UCF10 NO.4 |
83247-5A030 |
US $116.48 |
||
|
83247
|
83247
83247-5A050 Plate, Meter CircuitMETER CIRCUIT [08.1992 - 10.1994] UCF10..USA NO.1 |
83247-5A050 |
US $1,285.65 |
||
|
83247
|
83247
83247-5A270
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..USA W(AIR SUSPENSION),NO.2 |
83247-5A270 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-5A290
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..USA W(AIR SUSPENSION),NO.2 |
83247-5A290 |
— | ||
|
83247
|
83247
83247-5A290
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..USA W(AIR SUSPENSION & *TRC),NO.2 |
83247-5A290 |
— | ||
|
83247
|
83247
83247-5A310
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..USA NO.2 |
83247-5A310 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-5A290
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..USA NO.2 |
83247-5A290 |
— | ||
|
83247
|
83247
83247-5A330
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..CND NO.2; UCF10..USA W(TRACTION CONTROL),NO.2 |
83247-5A330 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-5A290
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..CND NO.2; UCF10..USA W(TRACTION CONTROL),NO.2 |
83247-5A290 |
— | ||
|
9009900211
|
9009900211
90099-00211
New Genuine Part
|
90099-00211 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900228
|
9009900228
90099-00228
New Genuine Part
|
90099-00228 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9354013014
|
9354013014
93540-13014 New Genuine Part |
93540-13014 |
US $1.75 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
