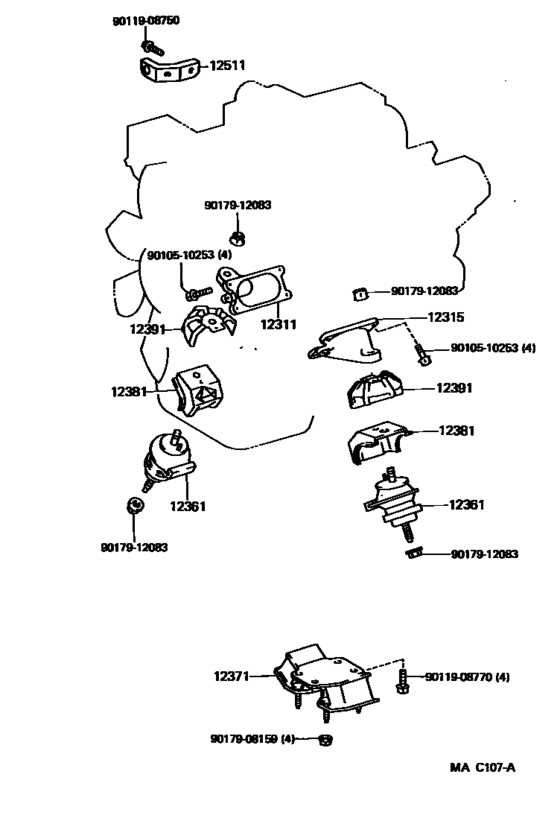

Mounting ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-50020 Bracket, Engine Mounting, Front No.1 Rh[05.1989 - 10.1994] 1UZFE..UCF10 |
12311-50020 |
US $74.26 |
||
| replacement | |||||
|
12311
|
12311
12311-50021
Bracket, Engine Mounting, Front No.1 Rh
[05.1989 - 10.1994] 1UZFE..UCF10 |
12311-50021 |
— | ||
|
12315
|
12315
12315-50010 Bracket, Engine Mounting, Front No.1 Lh[05.1989 - 10.1994] 1UZFE..UCF10 |
12315-50010 |
US $74.26 |
||
| replacement | |||||
|
12315
|
12315
12315-50011
Bracket, Engine Mounting, Front No.1 Lh
[05.1989 - 10.1994] 1UZFE..UCF10 |
12315-50011 |
— | ||
|
12361
|
12361
12361-50020
Insulator, Engine Mounting, Front
[05.1989 - 02.1994] 1UZFE..UCF10 |
12361-50020 |
— | ||
| replacements | |||||
|
12361
|
12361
12381-50080 Stabilizer, Engine Mounting[05.1989 - 02.1994] 1UZFE..UCF10 |
12381-50080 |
US $57.66 |
||
|
12361
|
12361
12361-50101 Insulator, Engine Mounting, Front[05.1989 - 02.1994] 1UZFE..UCF10 |
12361-50101 |
from US $145.29 |
||
|
12361
|
12361
12361-50021
Insulator, Engine Mounting, Front
[02.1994 - 10.1994] 1UZFE..UCF10 |
12361-50021 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-50101 Insulator, Engine Mounting, Front[02.1994 - 10.1994] 1UZFE..UCF10 |
12361-50101 |
from US $145.29 |
||
|
12371
|
12371
12371-50010
Insulator, Engine Mounting, Rear No.1
[05.1989 - 10.1994] 1UZFE..UCF10 |
12371-50010 |
— | ||
|
12381
|
12381
12381-50010
Stabilizer, Engine Mounting
[05.1989 - 02.1994] 1UZFE..UCF10 |
12381-50010 |
— | ||
|
12381
|
12381
12381-50040 Stabilizer, Engine Mounting[02.1994 - 10.1994] 1UZFE..UCF10 |
12381-50040 |
US $39.31 |
||
| replacement | |||||
|
12381
|
12381
12381-50080 Stabilizer, Engine Mounting[02.1994 - 10.1994] 1UZFE..UCF10 |
12381-50080 |
US $57.66 |
||
|
12391
|
12391
12391-50010
Insulator, Engine Mounting Front, Heat, Rh
[05.1989 - 08.1992] 1UZFE..UCF10 |
12391-50010 |
— | ||
|
12391
|
12391
12391-50020 Insulator, Engine Mounting Front, Heat, Rh[08.1992 - 10.1994] 1UZFE..UCF10 |
12391-50020 |
US $13.28 |
||
|
12511
|
12511
12511-50020 Bracket, Alternator, No.1[05.1989 - 10.1994] 1UZFE..UCF10 |
12511-50020 |
US $12.23 |
||
|
9010510253
|
9010510253
90105-10253 BOLT |
90105-10253 |
US $1.76 |
||
|
9011908750
|
9011908750
90119-08750 BOLT WWASHER |
90119-08750 |
US $2.56 |
||
|
9011908770
|
9011908770
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.40 |
||
|
9017908159
|
9017908159
90179-08159 Nut, Cap(For Cylinder Head Cover) |
90179-08159 |
US $2.40 |
||
|
9017912083
|
9017912083
90179-12083 NUT |
90179-12083 |
US $3.68 |
||
