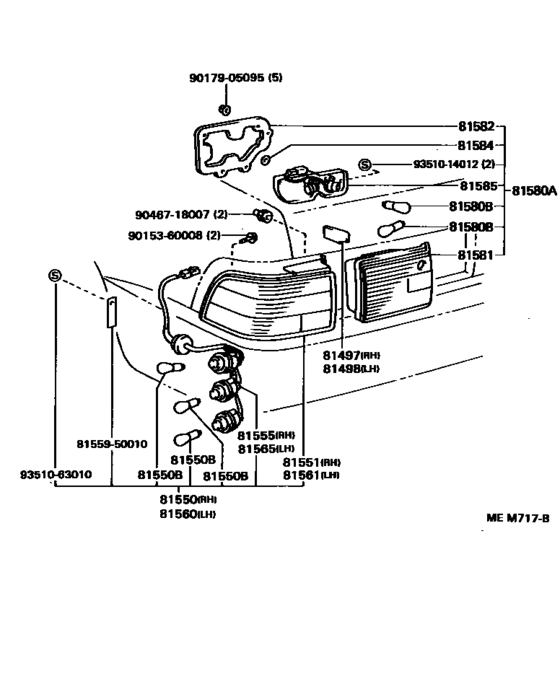

Rear Combination Lamp ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81497
|
81497
81497-50010
Cover, Rear Combination Lamp, Rh
[05.1989 - 10.1994] UCF10 |
81497-50010 |
— | ||
|
81498
|
81498
81498-50010
Cover, Rear Combination Lamp, Lh
[05.1989 - 10.1994] UCF10 |
81498-50010 |
— | ||
|
81550
|
81550
81550-50010
Lamp Assy, Rear Combination, Rh
[05.1989 - 10.1994] UCF10 |
81550-50010 |
— | ||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[05.1989 - 10.1994] UCF10 12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[05.1989 - 10.1994] UCF10 12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-50010
Lens, Rear Combination Lamp, Rh
[05.1989 - 10.1994] UCF10 |
81551-50010 |
— | ||
|
81555
|
81555
81555-50010
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.1989 - 10.1994] UCF10 |
81555-50010 |
— | ||
|
81560
|
81560
81560-50010
Lamp Assy, Rear Combination, Lh
[05.1989 - 10.1994] UCF10 |
81560-50010 |
— | ||
|
81561
|
81561
81561-50010
Lens, Rear Combination Lamp, Lh
[05.1989 - 10.1994] UCF10 |
81561-50010 |
— | ||
|
81565
|
81565
81555-50010
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.1989 - 10.1994] UCF10 |
81555-50010 |
— | ||
|
81580A
|
81580A
81580-50010 Lamp Assy, Rear[05.1989 - 10.1994] UCF10 RH |
81580-50010 |
US $215.49 |
||
| replacement | |||||
|
81580A
|
81580A
81581-50010
Lens, Rear Lamp
[05.1989 - 10.1994] UCF10 RH |
81581-50010 |
— | ||
|
81580A
|
81580A
81590-50010
Lamp Assy, Rear
[05.1989 - 10.1994] UCF10 LH |
81590-50010 |
— | ||
|
81580B
|
81580B
99132-11270 Bulb, Fog Lamp[05.1989 - 10.1994] UCF10 12V 27W |
99132-11270 |
US $3.36 |
||
|
81580B
|
81580B
99132-21270 Bulb (For Front Turn Signal Lamp)[05.1989 - 10.1994] UCF10 12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81581
|
81581
81581-50010
Lens, Rear Lamp
[05.1989 - 10.1994] UCF10 RH |
81581-50010 |
— | ||
|
81581
|
81581
81591-50010
Lens, Rear Lamp
[05.1989 - 10.1994] UCF10 LH |
81591-50010 |
— | ||
|
81582
|
81582
81582-50010
Gasket, Rear Lamp
[05.1989 - 10.1994] UCF10 RH |
81582-50010 |
— | ||
|
81582
|
81582
81592-50010
Gasket, Rear Lamp
[05.1989 - 10.1994] UCF10 LH |
81592-50010 |
— | ||
|
81584
|
81584
81554-32150 Gasket, Rear Combination Lamp Body, Rh[05.1989 - 10.1994] UCF10 |
81554-32150 |
US $4.80 |
||
|
81585
|
81585
81585-50010
Socket & Wire, Rear Lamp
[05.1989 - 10.1994] UCF10 RH |
81585-50010 |
— | ||
|
81585
|
81585
81595-50010 Socket & Wire, Rear Lamp[05.1989 - 10.1994] UCF10 LH |
81595-50010 |
US $44.12 |
||
|
8155950010
|
8155950010
81559-50010 Moulding, Rear Combination Lamp, Rh |
81559-50010 |
US $1.60 |
||
|
9015360008
|
9015360008
90153-60008 SCREW |
90153-60008 |
US $1.60 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046718007
|
9046718007
90467-18007 CLIP |
90467-18007 |
US $4.44 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
|
9351063010
|
9351063010
93510-63010
New Genuine Part
|
93510-63010 |
— | ||
