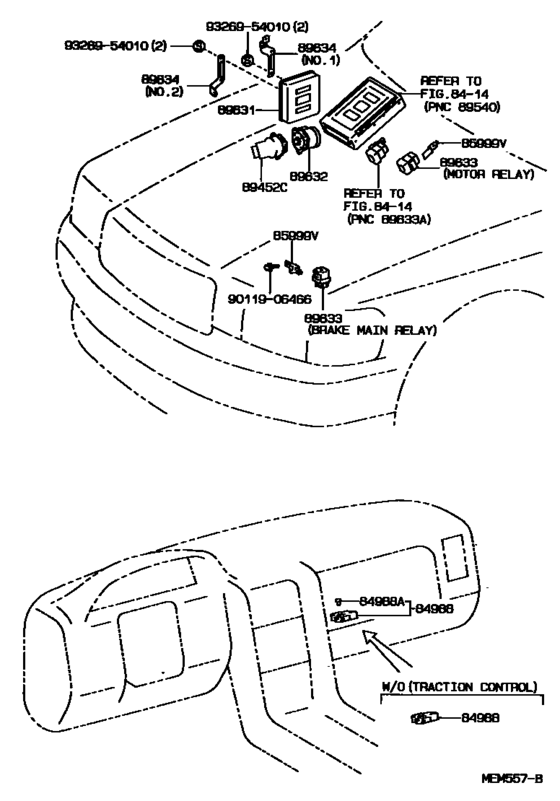

Traction Control ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84988
|
84988
84988-50010 Switch, Traction ControlTRACTION CONTROL [05.1989 - 08.1992] UCF10 W(TRACTION CONTROL) |
84988-50010 |
US $57.08 |
||
|
84988
|
84988
84988-50020 Switch, Traction Control[05.1989 - 08.1992] UCF10 |
84988-50020 |
US $57.08 |
||
|
84988A
|
84988A
84999-10620 Bulb, Seat Heater Switch[05.1989 - 08.1992] UCF10 14V 0.63W |
84999-10620 |
US $5.77 |
||
|
85999V
|
85999V
85999-50010 Bracket, RelayRELAY [05.1989 - 10.1994] UCF10 MOTOR RELAY |
85999-50010 |
US $4.66 |
||
|
85999V
|
85999V
85999-50050
Bracket, Relay
[05.1989 - 10.1994] UCF10 BRAKE MAIN RELAY |
85999-50050 |
— | ||
|
89452C
|
89452C
89452-50010 Sensor, Throttle Position[05.1989 - 08.1992] UCF10 |
89452-50010 |
US $180.54 |
||
| replacement | |||||
|
89452C
|
89452C
89452-50020
Sensor, Throttle Position
[05.1989 - 08.1992] UCF10 |
89452-50020 |
— | ||
|
89452C
|
89452C
89452-50020
Sensor, Throttle Position
[08.1992 - 10.1994] UCF10 |
89452-50020 |
— | ||
|
89631
|
89631
89631-30080 Computer, Traction Control[08.1993 - 10.1994] UCF10 |
89631-30080 |
US $1,688.96 |
||
|
89631
|
89631
89631-50010 Computer, Traction Control[08.1992 - 08.1993] UCF10 |
89631-50010 |
US $1,674.40 |
||
| replacement | |||||
|
89631
|
89631
89631-30080 Computer, Traction Control[08.1992 - 08.1993] UCF10 |
89631-30080 |
US $1,688.96 |
||
|
89632
|
89632
89632-50010 Motor, Traction Throttle Valve[05.1989 - 08.1992] UCF10 |
89632-50010 |
US $952.22 |
||
| replacement | |||||
|
89632
|
89632
89632-50020
Motor, Traction Throttle Valve
[05.1989 - 08.1992] UCF10 |
89632-50020 |
— | ||
|
89632
|
89632
89632-50020
Motor, Traction Throttle Valve
[08.1992 - 10.1994] UCF10 |
89632-50020 |
— | ||
|
89633
|
89633
89633-50020 Relay, Traction ControlTRACTION CONTROL [05.1989 - 10.1994] UCF10 MOTOR RELAY |
89633-50020 |
US $51.98 |
||
|
89633
|
89633
89633-50060 Relay Assy, Circuit Opening (For Efi)[05.1989 - 10.1994] UCF10 BRAKE MAIN RELAY |
89633-50060 |
US $36.11 |
||
|
89634
|
89634
89634-50010 Bracket, Traction Control ComputerTRACTION CONTROL COMPUTER [08.1992 - 10.1994] UCF10 NO.1 |
89634-50010 |
US $6.84 |
||
|
89634
|
89634
89634-50030 Bracket, Traction Control ComputerTRACTION CONTROL COMPUTER [08.1992 - 10.1994] UCF10 NO.2 |
89634-50030 |
US $6.84 |
||
|
9011906466
|
9011906466
90119-06466 New Genuine Part |
90119-06466 |
US $0.87 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
