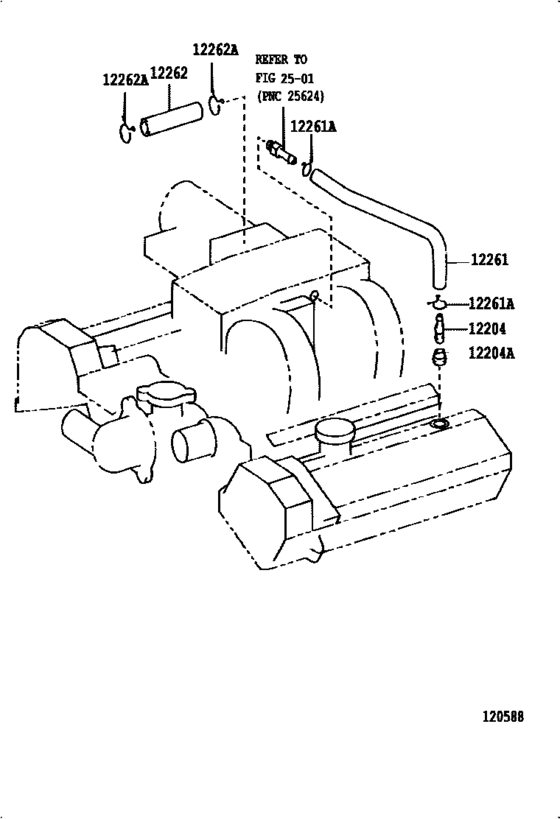

Ventilation Hose ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-50010
Valve Sub-Assy, Ventilation
[05.1989 - 08.1990] 1UZFE..UCF10 |
12204-50010 |
— | ||
|
12204
|
12204
12204-50011 Valve Sub-Assy, Ventilation[08.1990 - 10.1994] 1UZFE..UCF10 |
12204-50011 |
from US $24.62 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[05.1989 - 10.1994] 1UZFE..UCF10 |
90480-18001 |
from US $3.88 |
||
|
12261
|
12261
12261-50020
Hose, Ventilation
[05.1989 - 10.1994] 1UZFE..UCF10 |
12261-50020 |
— | ||
| replacement | |||||
|
12261
|
12261
12261-50021 Hose, Ventilation[05.1989 - 10.1994] 1UZFE..UCF10 |
12261-50021 |
from US $15.20 |
||
|
12261A
|
12261A
90467-15021 Clip Or Clamp(For Ventilation Hose)[05.1989 - 10.1994] 1UZFE..UCF10 |
90467-15021 |
from US $0.76 |
||
|
12262
|
12262
12262-50010 Hose, Ventilation, No.2[05.1989 - 10.1994] 1UZFE..UCF10 |
12262-50010 |
from US $11.36 |
||
|
12262A
|
12262A
90467-22009 Clip(For Ventilation Hose No.2)[05.1989 - 10.1994] 1UZFE..UCF10 |
90467-22009 |
US $0.52 |
||
