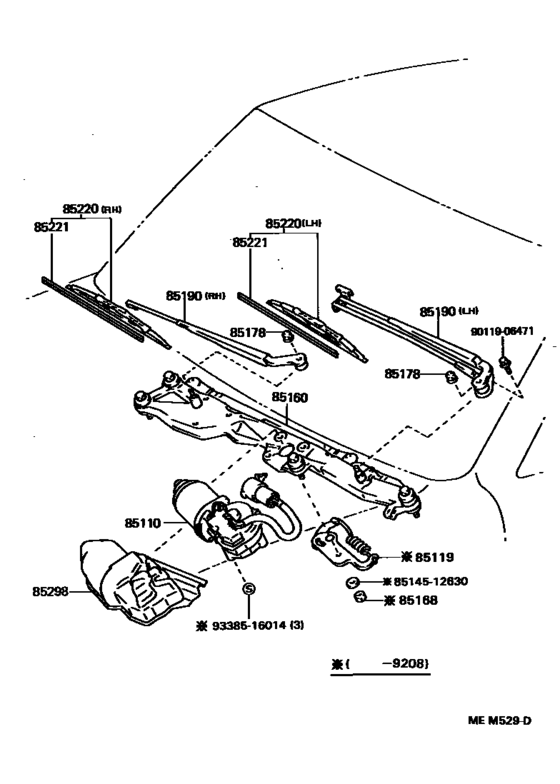

Windshield Wiper ([05.1989 - ] (8905- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- U.S.A.
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 05.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-50010 Motor Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 08.1992] UCF10 |
85110-50010 |
US $410.59 |
||
|
85110
|
85110
85110-50050 Motor Assy, Windshield WiperWINDSHIELD WIPER [08.1992 - 10.1994] UCF10 |
85110-50050 |
US $410.59 |
||
|
85119
|
85119
85119-50010
Crank, Windshield Wiper Motor
[05.1989 - 08.1992] UCF10 |
85119-50010 |
— | ||
|
85160
|
85160
85150-50040 Link Assy, Windshield WiperWINDSHIELD WIPER [03.1992 - 10.1994] UCF10 |
85150-50040 |
US $196.56 |
||
|
85160
|
85160
85160-50010 Link Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 03.1992] UCF10 |
85160-50010 |
US $196.56 |
||
| replacement | |||||
|
85160
|
85160
85150-50040 Link Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 03.1992] UCF10 |
85150-50040 |
US $196.56 |
||
|
85168
|
85168
85186-12630
Nut, Windshield Wiper Link Pivot
[05.1989 - 08.1992] UCF10 |
85186-12630 |
— | ||
|
85178
|
85178
90176-08042 Nut (For Front Wiper Arm Setting)[05.1989 - 10.1994] UCF10 |
90176-08042 |
US $2.18 |
||
| replacement | |||||
|
85178
|
85178
90176-08051 Nut (For Front Wiper Arm Setting)[05.1989 - 10.1994] UCF10 |
90176-08051 |
US $2.08 |
||
|
85190
|
85190
85190-50010 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 12.1990] UCF10 LH |
85190-50010 |
US $128.13 |
||
| replacement | |||||
|
85190
|
85190
85190-50011 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 12.1990] UCF10 LH |
85190-50011 |
US $126.67 |
||
|
85190
|
85190
85190-50011 Arm Assy, Windshield WiperWINDSHIELD WIPER [12.1990 - 10.1994] UCF10 LH |
85190-50011 |
US $126.67 |
||
|
85190
|
85190
85210-50010 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 12.1990] UCF10 RH |
85210-50010 |
US $75.71 |
||
| replacement | |||||
|
85190
|
85190
85210-50011 Arm Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 12.1990] UCF10 RH |
85210-50011 |
US $74.26 |
||
|
85190
|
85190
85210-50011 Arm Assy, Windshield WiperWINDSHIELD WIPER [12.1990 - 10.1994] UCF10 RH |
85210-50011 |
US $74.26 |
||
|
85220
|
85220
85212-50040 Blade Assy, Windshield WiperWINDSHIELD WIPER [04.1991 - 01.1993] UCF10 RH |
85212-50040 |
US $30.43 |
||
| replacement | |||||
|
85220
|
85220
85212-50041
Blade Assy, Windshield Wiper
[04.1991 - 01.1993] UCF10 RH |
85212-50041 |
— | ||
|
85220
|
85220
85212-50041
Blade Assy, Windshield Wiper
[01.1993 - 10.1994] UCF10 RH |
85212-50041 |
— | ||
|
85220
|
85220
85220-22700 Blade Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 04.1991] UCF10 RH |
85220-22700 |
US $30.43 |
||
| replacement | |||||
|
85220
|
85220
85212-50041
Blade Assy, Windshield Wiper
[05.1989 - 04.1991] UCF10 RH |
85212-50041 |
— | ||
|
85220
|
85220
85220-3A090 Blade Assy, Windshield WiperWINDSHIELD WIPER [05.1989 - 01.1993] UCF10 LH |
85220-3A090 |
US $53.44 |
||
| replacement | |||||
|
85220
|
85220
85222-50030 Blade, Fr Wiper, LhFR WIPER, LH [05.1989 - 01.1993] UCF10 LH |
85222-50030 |
from US $53.44 |
||
|
85220
|
85220
85220-3A091 Blade Assy, Windshield WiperWINDSHIELD WIPER [01.1993 - 10.1994] UCF10 LH |
85220-3A091 |
US $53.44 |
||
| replacement | |||||
|
85220
|
85220
85222-50030 Blade, Fr Wiper, LhFR WIPER, LH [01.1993 - 10.1994] UCF10 LH |
85222-50030 |
from US $53.44 |
||
|
85221
|
85221
85213-50030 Blade, Windshield WiperWINDSHIELD WIPER [12.1989 - 08.1992] UCF10 RH |
85213-50030 |
US $12.23 |
||
| replacement | |||||
|
85221
|
85221
85214-50090 Rubber, Wiper, Lh[12.1989 - 08.1992] UCF10 RH |
85214-50090 |
from US $9.17 |
||
|
85221
|
85221
85213-50031 Blade, Windshield WiperWINDSHIELD WIPER [08.1992 - 01.1993] UCF10 RH |
85213-50031 |
US $12.23 |
||
| replacement | |||||
|
85221
|
85221
85214-50090 Rubber, Wiper, Lh[08.1992 - 01.1993] UCF10 RH |
85214-50090 |
from US $9.17 |
||
|
85221
|
85221
85213-50032 Blade, Windshield WiperWINDSHIELD WIPER [01.1993 - 10.1994] UCF10 RH |
85213-50032 |
US $12.23 |
||
| replacement | |||||
|
85221
|
85221
85214-50090 Rubber, Wiper, Lh[01.1993 - 10.1994] UCF10 RH |
85214-50090 |
from US $9.17 |
||
|
85221
|
85221
85221-50010 Blade, Windshield Wiper[05.1989 - 12.1989] UCF10 LH |
85221-50010 |
US $21.11 |
||
| replacement | |||||
|
85221
|
85221
85214-50050
Rubber, Wiper, Lh
[05.1989 - 12.1989] UCF10 LH |
85214-50050 |
— | ||
|
85221
|
85221
85221-50020 Blade, Windshield Wiper[05.1989 - 12.1989] UCF10 RH |
85221-50020 |
US $12.23 |
||
| replacement | |||||
|
85221
|
85221
85214-50090 Rubber, Wiper, Lh[05.1989 - 12.1989] UCF10 RH |
85214-50090 |
from US $9.17 |
||
|
85221
|
85221
85223-50020 Blade, Windshield WiperWINDSHIELD WIPER [12.1989 - 08.1992] UCF10 LH |
85223-50020 |
US $21.11 |
||
| replacement | |||||
|
85221
|
85221
85214-50050
Rubber, Wiper, Lh
[12.1989 - 08.1992] UCF10 LH |
85214-50050 |
— | ||
|
85221
|
85221
85223-50021 Blade, Windshield WiperWINDSHIELD WIPER [08.1992 - 01.1993] UCF10 LH |
85223-50021 |
US $21.11 |
||
| replacement | |||||
|
85221
|
85221
85214-50050
Rubber, Wiper, Lh
[08.1992 - 01.1993] UCF10 LH |
85214-50050 |
— | ||
|
85221
|
85221
85223-50022 Blade, Windshield WiperWINDSHIELD WIPER [01.1993 - 10.1994] UCF10 LH |
85223-50022 |
US $21.11 |
||
| replacement | |||||
|
85221
|
85221
85214-50050
Rubber, Wiper, Lh
[01.1993 - 10.1994] UCF10 LH |
85214-50050 |
— | ||
|
85298
|
85298
85298-50010 Cover, Wiper MotorWIPER MOTOR [05.1989 - 10.1994] UCF10 |
85298-50010 |
US $14.27 |
||
| replacement | |||||
|
85298
|
85298
85111-50030 Cover, Wiper MotorWIPER MOTOR [05.1989 - 10.1994] UCF10 |
85111-50030 |
US $14.41 |
||
|
8514512630
|
8514512630
85145-12630
New Genuine Part
|
85145-12630 |
— | ||
|
9011906471
|
9011906471
90119-06471 New Genuine Part |
90119-06471 |
US $1.92 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
