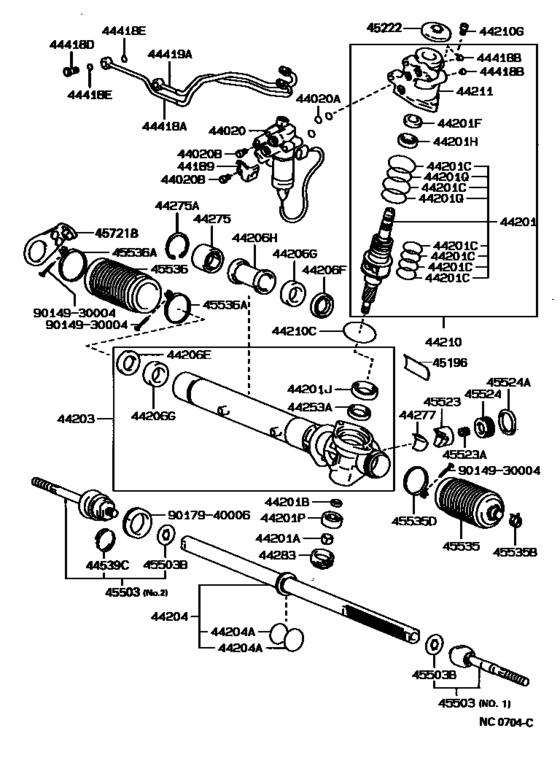

Front Steering Gear & Link ([12.1989 - ] (8912- )LHD) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44020
|
44020
44020-50010 Valve Assy, Pressure Control W/solenoid ValvePRESSURE CONTROL W/SOLENOID VALVE [12.1989 - 03.1990] UCF10..LHD |
44020-50010 |
US $637.73 |
||
|
44020
|
44020
44020-50030 Valve Assy, Pressure Control W/solenoid ValvePRESSURE CONTROL W/SOLENOID VALVE [03.1990 - 08.1992] UCF10..LHD |
44020-50030 |
US $637.73 |
||
|
44020
|
44020
44020-50050
Valve Assy, Pressure Control W/solenoid Valve
[08.1992 - 10.1994] UCF10..LHD |
44020-50050 |
— | ||
|
44020A
|
44020A
90301-11009 Ring, O (For Front Power Take-Off Shaft)[12.1989 - 10.1994] UCF10 |
90301-11009 |
from US $1.93 |
||
|
44020B
|
44020B
90110-08012 Bolt(For Power Steering Pressure Control Valve)[12.1989 - 10.1994] UCF10 *8-1.25PX29-26 |
90110-08012 |
US $0.96 |
||
|
44020B
|
44020B
90110-08014 Bolt(For Power Steering Pressure Control Valve)[12.1989 - 10.1994] UCF10 *8-1.25PX52-49.5 |
90110-08014 |
US $2.48 |
||
|
44189
|
44189
44189-24020 Clamp, Solenoid Valve TerminalSOLENOID VALVE TERMINAL [08.1992 - 10.1994] UCF10..LHD |
44189-24020 |
US $4.51 |
||
|
44189
|
44189
44189-50010 Clamp, Solenoid Valve TerminalSOLENOID VALVE TERMINAL [12.1989 - 08.1992] UCF10..LHD |
44189-50010 |
US $4.95 |
||
| replacement | |||||
|
44189
|
44189
44189-24020 Clamp, Solenoid Valve TerminalSOLENOID VALVE TERMINAL [12.1989 - 08.1992] UCF10..LHD |
44189-24020 |
US $4.51 |
||
|
44201
|
44201
44201-50020 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [12.1989 - 03.1990] UCF10..LHD |
44201-50020 |
US $297.02 |
||
| replacement | |||||
|
44201
|
44201
44201-50021 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [12.1989 - 03.1990] UCF10..LHD |
44201-50021 |
US $292.66 |
||
|
44201
|
44201
44201-50021 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [03.1990 - 08.1992] UCF10..LHD |
44201-50021 |
US $292.66 |
||
|
44201
|
44201
44201-50060 Valve Sub-Assy, Power Steering ControlPOWER STEERING CONTROL [08.1992 - 10.1994] UCF10..LHD |
44201-50060 |
US $292.66 |
||
| replacement | |||||
|
44201
|
44201
44201-50090 Valve Sub-Assy, Power Steering Control[08.1992 - 10.1994] UCF10..LHD |
44201-50090 |
US $294.11 |
||
|
44201A
|
44201A
94184-61200 Nut, Lock(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 |
94184-61200 |
from US $1.13 |
||
|
44201B
|
44201B
90560-12030 Spacer(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 |
90560-12030 |
US $4.37 |
||
|
44201C
|
44201C
90562-33005
Ring(For Power Steering Control Valve)
[12.1989 - 10.1994] UCF10 OD=36.4 |
90562-33005 |
— | ||
| replacement | |||||
|
44201C
|
44201C
90562-33008 Ring(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 OD=36.4 |
90562-33008 |
from US $1.92 |
||
|
44201C
|
44201C
90562-50001 Ring(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 OD=52.2 |
90562-50001 |
US $2.24 |
||
|
44201F
|
44201F
90311-19006 Seal, Oil(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 |
90311-19006 |
from US $3.04 |
||
|
44201H
|
44201H
90363-19002 Bearing(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 |
90363-19002 |
US $21.67 |
||
|
44201J
|
44201J
90363-30054 Bearing(For Power Steering Control Valve Center)[12.1989 - 10.1994] UCF10 |
90363-30054 |
US $21.14 |
||
|
44201P
|
44201P
90363-12008 Bearing(For Power Steering Control Valve Lower)[12.1989 - 10.1994] UCF10 |
90363-12008 |
US $12.58 |
||
|
44201Q
|
44201Q
90301-45002 Ring(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 |
90301-45002 |
US $4.32 |
||
|
44203
|
44203
44203-50010 Housing Sub-Assy, Power Steering RackPOWER STEERING RACK [12.1989 - 03.1992] UCF10..LHD |
44203-50010 |
US $594.05 |
||
| replacements | |||||
|
44203
|
44203
44203-50030 Housing Sub-Assy, Power Steering RackPOWER STEERING RACK [12.1989 - 03.1992] UCF10..LHD |
44203-50030 |
US $594.05 |
||
|
44203
|
44203
44277-50011
Seat, Rack Guide
[12.1989 - 03.1992] UCF10..LHD |
44277-50011 |
— | ||
|
44203
|
44203
45523-50011 Guide, Rack(For Steering Gear)[12.1989 - 03.1992] UCF10..LHD |
45523-50011 |
from US $15.20 |
||
|
44203
|
44203
45524-20030
Cap, Rack Housing
[12.1989 - 03.1992] UCF10..LHD |
45524-20030 |
— | ||
|
44203
|
44203
44203-50030 Housing Sub-Assy, Power Steering RackPOWER STEERING RACK [03.1992 - 10.1994] UCF10..LHD |
44203-50030 |
US $594.05 |
||
|
44204
|
44204
44204-50010 Rack Sub-Assy, Power SteeringPOWER STEERING [12.1989 - 08.1992] UCF10..LHD |
44204-50010 |
US $243.15 |
||
| replacement | |||||
|
44204
|
44204
44204-50040 Rack Sub-Assy, Power SteeringPOWER STEERING [12.1989 - 08.1992] UCF10..LHD |
44204-50040 |
US $167.44 |
||
|
44204
|
44204
44204-50030 Rack Sub-Assy, Power SteeringPOWER STEERING [08.1992 - 06.1993] UCF10..LHD |
44204-50030 |
US $228.59 |
||
|
44204A
|
44204A
90301-36004 Ring(For Rack Steering Piston)[12.1989 - 10.1994] UCF10 INNER |
90301-36004 |
from US $3.84 |
||
|
44204A
|
44204A
90562-40001 Ring(For Rack Steering Piston)[12.1989 - 08.1990] UCF10 OUTER |
90562-40001 |
US $1.89 |
||
|
44204A
|
44204A
90562-40002 Ring(For Rack Steering Piston)[08.1990 - 10.1994] UCF10 OUTER |
90562-40002 |
US $1.75 |
||
| replacement | |||||
|
44204A
|
44204A
90560-40008 Ring(For Rack Steering Piston)[08.1990 - 10.1994] UCF10 OUTER |
90560-40008 |
US $1.02 |
||
|
44206E
|
44206E
90310-26011
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[12.1989 - 10.1994] UCF10 |
90310-26011 |
— | ||
| replacement | |||||
|
44206E
|
44206E
90310-26016 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1989 - 10.1994] UCF10 |
90310-26016 |
from US $3.04 |
||
|
44206F
|
44206F
90310-26011
Seal, Oil, No.1(For Power Steering Cylinder Tube)
[12.1989 - 10.1994] UCF10 |
90310-26011 |
— | ||
| replacement | |||||
|
44206F
|
44206F
90310-26016 Seal, Oil, No.1(For Power Steering Cylinder Tube)[12.1989 - 10.1994] UCF10 |
90310-26016 |
from US $3.04 |
||
|
44206G
|
44206G
90560-27012 Spacer, No.1(For Power Steering Cylinder Tube)[12.1989 - 10.1994] UCF10 |
90560-27012 |
US $10.63 |
||
|
44206H
|
44206H
90561-28002 Spacer, No.2(For Power Steering Cylinder Tube)[12.1989 - 10.1994] UCF10 |
90561-28002 |
US $29.27 |
||
|
44210
|
44210
44210-50020 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [12.1989 - 03.1990] UCF10..LHD |
44210-50020 |
US $564.93 |
||
| replacements | |||||
|
44210
|
44210
44210-50022 Valve Assy, Power Steering Control[12.1989 - 03.1990] UCF10..LHD |
44210-50022 |
US $559.10 |
||
|
44210
|
44210
90301-11009 Ring, O (For Front Power Take-Off Shaft)[12.1989 - 03.1990] UCF10..LHD |
90301-11009 |
from US $1.93 |
||
|
44210
|
44210
44210-50021 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [03.1990 - 08.1992] UCF10..LHD |
44210-50021 |
US $560.56 |
||
| replacements | |||||
|
44210
|
44210
44210-50022 Valve Assy, Power Steering Control[03.1990 - 08.1992] UCF10..LHD |
44210-50022 |
US $559.10 |
||
|
44210
|
44210
90301-11009 Ring, O (For Front Power Take-Off Shaft)[03.1990 - 08.1992] UCF10..LHD |
90301-11009 |
from US $1.93 |
||
|
44210
|
44210
44210-50060 Valve Assy, Power Steering ControlPOWER STEERING CONTROL [08.1992 - 10.1994] UCF10..LHD |
44210-50060 |
US $560.56 |
||
| replacements | |||||
|
44210
|
44210
44210-50091 Valve Assy, Power Steering Control[08.1992 - 10.1994] UCF10..LHD |
44210-50091 |
US $560.56 |
||
|
44210
|
44210
90301-11009 Ring, O (For Front Power Take-Off Shaft)[08.1992 - 10.1994] UCF10..LHD |
90301-11009 |
from US $1.93 |
||
|
44210C
|
44210C
90301-57003 Ring, O(For Power Steering Control Valve)[12.1989 - 10.1994] UCF10 |
90301-57003 |
from US $2.83 |
||
|
44210G
|
44210G
90110-08012 Bolt(For Power Steering Pressure Control Valve)[12.1989 - 10.1994] UCF10 |
90110-08012 |
US $0.96 |
||
|
44211
|
44211
44211-50010 Housing, Control ValveCONTROL VALVE [12.1989 - 10.1994] UCF10..LHD |
44211-50010 |
US $84.45 |
||
| replacements | |||||
|
44211
|
44211
44211-50030 Housing, Control ValveCONTROL VALVE [12.1989 - 10.1994] UCF10..LHD |
44211-50030 |
US $132.50 |
||
|
44211
|
44211
90301-11009 Ring, O (For Front Power Take-Off Shaft)[12.1989 - 10.1994] UCF10..LHD |
90301-11009 |
from US $1.93 |
||
|
44253A
|
44253A
90310-30005
Seal, Oil(For Power Steering Rack Housing)
[12.1989 - 10.1994] UCF10 |
90310-30005 |
— | ||
| replacement | |||||
|
44253A
|
44253A
90310-30013 Seal, Oil, No.2(For Power Steering Cylinder Tube)[12.1989 - 10.1994] UCF10 |
90310-30013 |
from US $3.04 |
||
|
44275
|
44275
44275-50010
Stopper, Cylinder End
[12.1989 - 10.1994] UCF10 |
44275-50010 |
— | ||
|
44275A
|
44275A
90521-50003 Ring, Hole Snap(For Cylinder End Stopper)[12.1989 - 10.1994] UCF10 |
90521-50003 |
US $3.14 |
||
|
44277
|
44277
44277-20020
Seat, Rack Guide
[12.1989 - 03.1992] UCF10 |
44277-20020 |
— | ||
|
44277
|
44277
44277-50011
Seat, Rack Guide
[03.1992 - 10.1994] UCF10 |
44277-50011 |
— | ||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[12.1989 - 10.1994] UCF10 |
44283-12010 |
US $10.83 |
||
|
44418A
|
44418A
44418-50010 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [12.1989 - 10.1994] UCF10..LHD |
44418-50010 |
US $23 |
||
|
44418B
|
44418B
96390-71200 Seat, Union(For Steering Turn Pressure Tube)[12.1989 - 10.1994] UCF10 |
96390-71200 |
US $1.60 |
||
|
44418D
|
44418D
90401-10021 Bolt, Union(For Steering Turn Pressure Tube)[12.1989 - 10.1994] UCF10 |
90401-10021 |
US $4.02 |
||
|
44418E
|
44418E
90430-10008 Gasket(For Steering Turn Pressure Tube)[12.1989 - 10.1994] UCF10 |
90430-10008 |
US $2.72 |
||
|
44419A
|
44419A
44419-50010 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [12.1989 - 08.1992] UCF10..LHD |
44419-50010 |
US $19.22 |
||
| replacement | |||||
|
44419A
|
44419A
44419-50030 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [12.1989 - 08.1992] UCF10..LHD |
44419-50030 |
US $19.22 |
||
|
44419A
|
44419A
44419-50030 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [08.1992 - 10.1994] UCF10..LHD |
44419-50030 |
US $19.22 |
||
|
44539C
|
44539C
90522-30002 Ring, Set(For Power Steering Rack End Dust Seal)[08.1992 - 10.1994] UCF10 |
90522-30002 |
US $1.05 |
||
|
45196
|
45196
45196-50020 Label, Steering Shaft Installation Caution[12.1989 - 10.1994] UCF10 |
45196-50020 |
US $3.93 |
||
|
45222
|
45222
45222-50010 Cover, Steering Gear Dust[12.1989 - 10.1994] UCF10 |
45222-50010 |
US $6.84 |
||
|
45503
|
45503
45503-59015
End Sub-Assy, Steering Rack
[12.1989 - 10.1994] UCF10 NO.1 |
45503-59015 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-39095 End Sub-Assy, Steering Rack[12.1989 - 10.1994] UCF10 NO.1 |
45503-39095 |
from US $91.76 |
||
|
45503
|
45503
45504-59015 End Sub-Assy, Steering Rack[12.1989 - 10.1994] UCF10 NO.2 |
45504-59015 |
US $181.43 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[12.1989 - 10.1994] UCF10 OD=38 |
90214-14007 |
from US $1.56 |
||
|
45523
|
45523
45523-20020
Guide, Rack(For Power Steering)
[12.1989 - 03.1992] UCF10 |
45523-20020 |
— | ||
| replacements | |||||
|
45523
|
45523
44277-50011
Seat, Rack Guide
[12.1989 - 03.1992] UCF10 |
44277-50011 |
— | ||
|
45523
|
45523
45523-50011 Guide, Rack(For Steering Gear)[12.1989 - 03.1992] UCF10 |
45523-50011 |
from US $15.20 |
||
|
45523
|
45523
45524-20030
Cap, Rack Housing
[12.1989 - 03.1992] UCF10 |
45524-20030 |
— | ||
|
45523
|
45523
45523-50011 Guide, Rack(For Steering Gear)[03.1992 - 10.1994] UCF10 |
45523-50011 |
from US $15.20 |
||
|
45523A
|
45523A
90501-23007 Spring(For Power Steering Rack Guide)[12.1989 - 03.1992] UCF10 |
90501-23007 |
from US $1.49 |
||
|
45523A
|
45523A
90501-26038 Spring(For Power Steering Rack Guide)[03.1992 - 06.1992] UCF10 |
90501-26038 |
US $2.97 |
||
|
45523A
|
45523A
90501-26080 Spring(For Power Steering Rack Guide)[06.1992 - 08.1992] UCF10 |
90501-26080 |
US $1.49 |
||
|
45523A
|
45523A
90501-30017 Spring(For Steering Gear Rack Guide)[08.1992 - 10.1994] UCF10 |
90501-30017 |
US $3.79 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[12.1989 - 03.1992] UCF10 |
45524-16010 |
US $8.91 |
||
|
45524
|
45524
45524-20030
Cap, Rack Housing
[03.1992 - 06.1992] UCF10 |
45524-20030 |
— | ||
|
45524
|
45524
45524-50010 Cap, Rack Housing[06.1992 - 10.1994] UCF10 |
45524-50010 |
US $8.74 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[12.1989 - 10.1994] UCF10 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-22080 Boot, Steering Rack, No.1[12.1989 - 10.1994] UCF10 |
45535-22080 |
from US $14.51 |
||
|
45535B
|
45535B
90467-19012
Clip
[12.1989 - 10.1994] UCF10 |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[12.1989 - 10.1994] UCF10 |
90467-19019 |
from US $4.41 |
||
|
45535D
|
45535D
90460-49002 Clamp(For Power Steering Rack Boot)[12.1989 - 10.1994] UCF10 |
90460-49002 |
US $4.80 |
||
|
45536
|
45536
45536-50010 Boot, Steering Rack, No.2[12.1989 - 10.1994] UCF10 |
45536-50010 |
US $28.12 |
||
|
45536A
|
45536A
90460-52001 Clamp(For Power Steering Rack Boot)[12.1989 - 10.1994] UCF10 INNER |
90460-52001 |
from US $2.13 |
||
|
45536A
|
45536A
90460-55010 Clamp(For Steering Rack Boot No.2)[12.1989 - 10.1994] UCF10 OUTER |
90460-55010 |
US $5.07 |
||
|
45721B
|
45721B
45721-50010
Bracket, Steering Damper, No.3
[12.1989 - 10.1994] UCF10..LHD |
45721-50010 |
— | ||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9017940006
|
9017940006
90179-40006
New Genuine Part
|
90179-40006 |
— | ||
