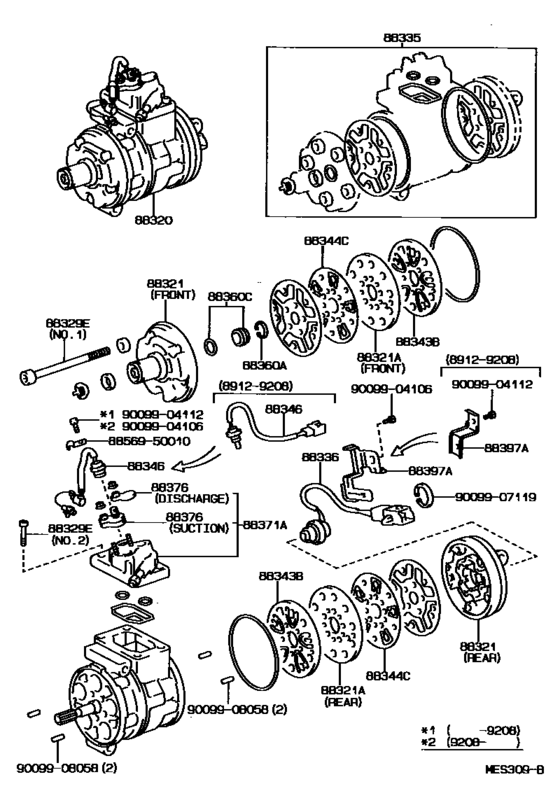

Heating & Air Conditioning - Compressor ([12.1989 - ] (8912- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-50020
Compressor Assy, Cooler
[12.1989 - 08.1992] UCF10..V |
88320-50020 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50021
Compressor Assy, Cooler
[12.1989 - 08.1992] UCF10..V |
88320-50021 |
— | ||
|
88320
|
88320
88320-50050
Compressor Assy, Cooler
[08.1992 - 10.1994] UCF10..V |
88320-50050 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50H91
Compressor Assy, Cooler
[08.1992 - 10.1994] UCF10..V |
88320-50H91 |
— | ||
|
88321
|
88321
88321-30310
Head, Cooler Compressor Cylinder
[12.1989 - 08.1992] UCF10 FRONT |
88321-30310 |
— | ||
|
88321
|
88321
88321-60020
Head, Cooler Compressor Cylinder
[08.1992 - 10.1994] UCF10 FRONT |
88321-60020 |
— | ||
|
88321
|
88321
88322-50010
Head, Cooler Compressor Cylinder
[12.1989 - 08.1992] UCF10 REAR |
88322-50010 |
— | ||
|
88321
|
88321
88322-50020
Head, Cooler Compressor Cylinder
[08.1992 - 10.1994] UCF10 REAR |
88322-50020 |
— | ||
| replacement | |||||
|
88321
|
88321
88322-50030
Head, Cooler Compressor Cylinder
[08.1992 - 10.1994] UCF10 REAR |
88322-50030 |
— | ||
|
88321A
|
88321A
88341-30010
Plate Sub-Assy, Valve
[12.1989 - 08.1992] UCF10 FRONT |
88341-30010 |
— | ||
|
88321A
|
88321A
88341-30040
Plate Sub-Assy, Valve
[08.1992 - 10.1994] UCF10 FRONT |
88341-30040 |
— | ||
|
88321A
|
88321A
88342-30010
Plate Sub-Assy, Valve
[12.1989 - 08.1992] UCF10 REAR |
88342-30010 |
— | ||
|
88321A
|
88321A
88342-30270
Plate Sub-Assy, Valve
[08.1992 - 10.1994] UCF10 REAR |
88342-30270 |
— | ||
|
88329E
|
88329E
88329-30010
Bolt, Through
[12.1989 - 10.1994] UCF10 NO.1 |
88329-30010 |
— | ||
|
88329E
|
88329E
88329-50010
Bolt, Through
[12.1989 - 08.1992] UCF10 NO.2 |
88329-50010 |
— | ||
| replacement | |||||
|
88329E
|
88329E
88329-30010
Bolt, Through
[12.1989 - 08.1992] UCF10 NO.2 |
88329-30010 |
— | ||
|
88329E
|
88329E
90099-04107
Bolt, Compressor, No.1
[08.1992 - 10.1994] UCF10 NO.2 |
90099-04107 |
— | ||
|
88335
|
88335
88335-50010
Gasket Kit, Overhaul
[12.1989 - 08.1992] UCF10 |
88335-50010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-30360 Gasket Kit, OverhaulOVERHAUL [12.1989 - 08.1992] UCF10 |
88335-30360 |
US $31.18 |
||
|
88335
|
88335
88335-50020
Gasket Kit, Overhaul
[08.1992 - 10.1994] UCF10 |
88335-50020 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-30360 Gasket Kit, OverhaulOVERHAUL [08.1992 - 10.1994] UCF10 |
88335-30360 |
US $31.18 |
||
|
88336
|
88336
88336-50010
Sensor, Compressor
[12.1989 - 08.1992] UCF10 |
88336-50010 |
— | ||
|
88336
|
88336
88336-50020
Sensor, Compressor
[08.1992 - 10.1994] UCF10 |
88336-50020 |
— | ||
|
88343B
|
88343B
88343-30280
Reed, Suction Valve
[12.1989 - 10.1994] UCF10 |
88343-30280 |
— | ||
|
88344C
|
88344C
88344-30010
Reed, Discharge Valve
[12.1989 - 10.1994] UCF10 |
88344-30010 |
— | ||
|
88346
|
88346
88336-50030
Sensor,compressor
[08.1992 - 12.1993] UCF10..V |
88336-50030 |
— | ||
| replacement | |||||
|
88346
|
88346
88346-50020
Sensor,compressor
[08.1992 - 12.1993] UCF10..V |
88346-50020 |
— | ||
|
88346
|
88346
88346-50020
Sensor,compressor
[12.1989 - 08.1992] UCF10..V |
88346-50020 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[12.1989 - 10.1994] UCF10 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[12.1989 - 08.1992] UCF10 |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[12.1989 - 08.1992] UCF10 |
88360-2B020 |
US $68.84 |
||
|
88360C
|
88360C
88360-2B010
Seal Assy, Shaft
[08.1992 - 10.1994] UCF10 |
88360-2B010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[08.1992 - 10.1994] UCF10 |
88360-2B020 |
US $68.84 |
||
|
88371A
|
88371A
88371-50020
Valve, Suction
[12.1989 - 08.1992] UCF10..V |
88371-50020 |
— | ||
|
88371A
|
88371A
88371-50030
Valve, Suction
[08.1992 - 10.1994] UCF10..V |
88371-50030 |
— | ||
|
88376
|
88376
88376-17020
Cap, Blind
[12.1989 - 08.1992] UCF10..V SUCTION |
88376-17020 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[12.1989 - 08.1992] UCF10..V DISCHARGE |
88376-22020 |
— | ||
|
88397A
|
88397A
88397-50010
Clip, Compressor
[12.1989 - 08.1992] UCF10 |
88397-50010 |
— | ||
|
88397A
|
88397A
88688-50110
Clip, Compressor
[08.1992 - 10.1994] UCF10 |
88688-50110 |
— | ||
|
8856950010
|
8856950010
88569-50010
Clamp (for Cooler Relay)
|
88569-50010 |
— | ||
| replacement | |||||
|
8856950010
|
8856950010
88569-32070
Clamp (for Cooler Relay)
|
88569-32070 |
— | ||
|
9009904106
|
9009904106
90099-04106
New Genuine Part
|
90099-04106 |
— | ||
|
9009904112
|
9009904112
90099-04112
New Genuine Part
|
90099-04112 |
— | ||
|
9009907119
|
9009907119
90099-07119
Ring, Compressor Seal Plate Snap
|
90099-07119 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
