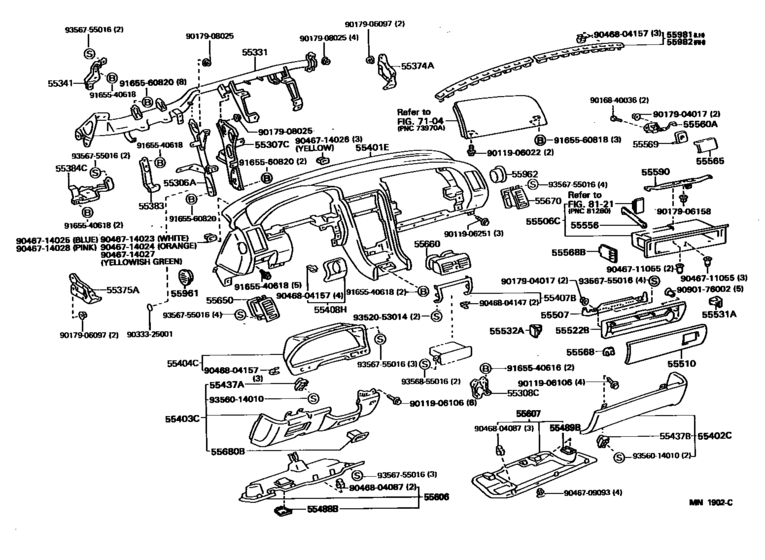

Instrument Panel & Glove Compartment ([08.1992 - ] (9208- )LHD) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-50011 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 08.1992] UCF10..LHD |
55306-50011 |
US $54.16 |
||
|
55306A
|
55306A
55306-50030 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1992 - 10.1994] UCF10..LHD |
55306-50030 |
US $54.16 |
||
|
55307C
|
55307C
55307-50011 Brace Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [12.1989 - 08.1992] UCF10..LHD |
55307-50011 |
US $42.95 |
||
|
55307C
|
55307C
55307-50030 Brace Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [08.1992 - 10.1994] UCF10..LHD |
55307-50030 |
US $42.95 |
||
|
55308C
|
55308C
55308-50010 Bracket Sub-Assy, Instrument Panel, Center[12.1989 - 10.1994] UCF10 |
55308-50010 |
US $14.27 |
||
|
55331
|
55331
55330-50010 Reinforcement, Instrument PanelINSTRUMENT PANEL [12.1989 - 08.1992] UCF10..LHD |
55330-50010 |
US $275.18 |
||
|
55331
|
55331
55330-50030 Reinforcement, Instrument PanelINSTRUMENT PANEL [08.1992 - 10.1994] UCF10..LHD |
55330-50030 |
US $285.38 |
||
|
55341
|
55341
55341-50010 Brace, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 08.1992] UCF10..V |
55341-50010 |
US $6.99 |
||
|
55341
|
55341
55341-50030 Brace, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1992 - 10.1994] UCF10..LHD |
55341-50030 |
US $6.99 |
||
|
55374A
|
55374A
55374-50010 Bracket, Instrument Panel Lower Mounting, RhINSTRUMENT PANEL LOWER MOUNTING, RH [12.1989 - 10.1994] UCF10..LHD |
55374-50010 |
US $14.27 |
||
|
55375A
|
55375A
55375-50010 Bracket, Instrument Panel Lower Mounting, LhINSTRUMENT PANEL LOWER MOUNTING, LH [12.1989 - 10.1994] UCF10..LHD |
55375-50010 |
US $15 |
||
|
55383
|
55383
55383-50010 Bracket, Finish Panel Mounting, No.3FINISH PANEL MOUNTING, NO.3 [12.1989 - 08.1992] UCF10..LHD |
55383-50010 |
US $19.36 |
||
| replacement | |||||
|
55383
|
55383
55383-50011 Bracket, Finish Panel Mounting, No.3FINISH PANEL MOUNTING, NO.3 [12.1989 - 08.1992] UCF10..LHD |
55383-50011 |
US $19.22 |
||
|
55383
|
55383
55383-50011 Bracket, Finish Panel Mounting, No.3FINISH PANEL MOUNTING, NO.3 [08.1992 - 10.1994] UCF10..LHD |
55383-50011 |
US $19.22 |
||
|
55384C
|
55384C
55384-50010 Bracket, Finish Panel Mounting, No.4FINISH PANEL MOUNTING, NO.4 [12.1989 - 10.1994] UCF10..LHD |
55384-50010 |
US $26.50 |
||
|
55401E
|
55401E
55401-50010-02 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55401-50010-02 |
US $952.22 |
||
|
55401E
|
55401E
55401-50010-03 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [12.1989 - 08.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55401-50010-03 |
US $952.22 |
||
|
55401E
|
55401E
55401-50010-04 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [12.1989 - 08.1992] UCF10..LHD DARK BLUE,TRIM8# |
55401-50010-04 |
US $952.22 |
||
|
55401E
|
55401E
55401-50010-05 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [12.1989 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55401-50010-05 |
US $952.22 |
||
|
55401E
|
55401E
55401-50010-06 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [12.1989 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55401-50010-06 |
US $952.22 |
||
|
55401E
|
55401E
55401-50030-B0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55401-50030-B0 |
US $988.62 |
||
|
55401E
|
55401E
55401-50030-E0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55401-50030-E0 |
US $988.62 |
||
|
55401E
|
55401E
55401-50030-J0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55401-50030-J0 |
US $988.62 |
||
|
55401E
|
55401E
55401-50030-K0 Pad Sub-Assy, Instrument Panel SafetyINSTRUMENT PANEL SAFETY [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55401-50030-K0 |
US $988.62 |
||
|
55402C
|
55402C
55402-50010-02 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55402-50010-02 |
US $243.15 |
||
|
55402C
|
55402C
55402-50010-03 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [12.1989 - 08.1992] UCF10..LHD GRAY,TRIM1# |
55402-50010-03 |
US $243.15 |
||
|
55402C
|
55402C
55402-50010-04 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [12.1989 - 08.1992] UCF10..LHD BLUE,TRIM8# |
55402-50010-04 |
US $243.15 |
||
|
55402C
|
55402C
55402-50010-06 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [12.1989 - 08.1992] UCF10..LHD ROSE,TRIM4# |
55402-50010-06 |
US $243.15 |
||
|
55402C
|
55402C
55402-50010-08 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [12.1989 - 08.1992] UCF10..LHD IVORY,TRIM0# |
55402-50010-08 |
US $243.15 |
||
|
55402C
|
55402C
55402-50030-A0 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [08.1992 - 10.1994] UCF10..LHD IVORY,TRIM0# |
55402-50030-A0 |
US $396.03 |
||
|
55402C
|
55402C
55402-50030-B0 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [08.1992 - 10.1994] UCF10..LHD SLATE GRAY,TRIM1# |
55402-50030-B0 |
US $396.03 |
||
|
55402C
|
55402C
55402-50030-J0 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [08.1992 - 10.1994] UCF10..LHD EISEN BLUE,TRIM8# |
55402-50030-J0 |
US $396.03 |
||
|
55402C
|
55402C
55402-50030-K0 Pad Sub-Assy, Instrument Panel, Lower RhINSTRUMENT PANEL, LOWER RH [08.1992 - 10.1994] UCF10..V ME. TAUPE,TRIM9# |
55402-50030-K0 |
US $396.03 |
||
|
55403C
|
55403C
55403-50010-02 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55403-50010-02 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-03 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD GRAY,TRIM1# |
55403-50010-03 |
US $412.05 |
||
| replacement | |||||
|
55403C
|
55403C
55403-50010-S7 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD GRAY,TRIM1# |
55403-50010-S7 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-04 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD BLUE,TRIM8# |
55403-50010-04 |
US $412.05 |
||
| replacement | |||||
|
55403C
|
55403C
55403-50010-W4 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD BLUE,TRIM8# |
55403-50010-W4 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-06 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD ROSE,TRIM4# |
55403-50010-06 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-08 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD IVORY,TRIM0# |
55403-50010-08 |
US $412.05 |
||
| replacement | |||||
|
55403C
|
55403C
55403-50010-A0 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [12.1989 - 08.1992] UCF10..LHD IVORY,TRIM0# |
55403-50010-A0 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-A0 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [08.1992 - 10.1994] UCF10..LHD IVORY,TRIM0# |
55403-50010-A0 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-K0 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [08.1992 - 10.1994] UCF10..V ME. TAUPE,TRIM9# |
55403-50010-K0 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-S7 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [08.1992 - 10.1994] UCF10..LHD SLATE GRAY,TRIM1# |
55403-50010-S7 |
US $412.05 |
||
|
55403C
|
55403C
55403-50010-W4 Pad Sub-Assy, Instrument Panel, Lower LhINSTRUMENT PANEL, LOWER LH [08.1992 - 10.1994] UCF10..LHD EISEN BLUE,TRIM8# |
55403-50010-W4 |
US $412.05 |
||
|
55404C
|
55404C
55404-50020
Panel Sub-Assy, Instrument Cluster Finish, No.2
[12.1989 - 08.1992] UCF10..V |
55404-50020 |
— | ||
|
55404C
|
55404C
55404-50070 Panel Sub-Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [08.1992 - 10.1994] UCF10..V |
55404-50070 |
US $85.90 |
||
|
55407B
|
55407B
55407-50010 Base Sub-Assy, Switch Hole[12.1989 - 08.1992] UCF10 |
55407-50010 |
US $264.99 |
||
|
55408H
|
55408H
55408-50030-02 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55408-50030-02 |
US $55.18 |
||
|
55408H
|
55408H
55408-50030-03 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55408-50030-03 |
US $55.18 |
||
| replacement | |||||
|
55408H
|
55408H
55408-50031-P0 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55408-50031-P0 |
US $57.95 |
||
|
55408H
|
55408H
55408-50030-04 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD DARK BLUE,TRIM8# |
55408-50030-04 |
US $55.18 |
||
| replacement | |||||
|
55408H
|
55408H
55408-50031-W3 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD DARK BLUE,TRIM8# |
55408-50031-W3 |
US $57.95 |
||
|
55408H
|
55408H
55408-50030-05 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD GREIGE,TRIM0# |
55408-50030-05 |
US $55.18 |
||
| replacement | |||||
|
55408H
|
55408H
55408-50031-E2 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD GREIGE,TRIM0# |
55408-50031-E2 |
US $57.95 |
||
|
55408H
|
55408H
55408-50030-06 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD DARK ROSE,TRIM4# |
55408-50030-06 |
US $55.18 |
||
| replacement | |||||
|
55408H
|
55408H
55408-50031-E4 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [12.1989 - 07.1992] UCF10..LHD DARK ROSE,TRIM4# |
55408-50031-E4 |
US $57.95 |
||
|
55408H
|
55408H
55408-50031-E0 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55408-50031-E0 |
US $57.95 |
||
|
55408H
|
55408H
55408-50031-E2 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [07.1992 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55408-50031-E2 |
US $57.95 |
||
|
55408H
|
55408H
55408-50031-E4 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [07.1992 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55408-50031-E4 |
US $57.95 |
||
|
55408H
|
55408H
55408-50031-K0 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55408-50031-K0 |
US $57.95 |
||
|
55408H
|
55408H
55408-50031-P0 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [07.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55408-50031-P0 |
US $57.95 |
||
|
55408H
|
55408H
55408-50031-W3 Pad Sub-Assy, Instrument Panel CylinderINSTRUMENT PANEL CYLINDER [07.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55408-50031-W3 |
US $57.95 |
||
|
55437A
|
55437A
55437-50010 Retainer, Instrument Panel Finish Panel, No.1[12.1989 - 10.1994] UCF10..LHD |
55437-50010 |
US $4.22 |
||
|
55437B
|
55437B
55437-50010 Retainer, Instrument Panel Finish Panel, No.1[12.1989 - 08.1992] UCF10 |
55437-50010 |
US $4.22 |
||
|
55488B
|
55488B
55488-50010 Lens, Front Foot Lamp, No.1[08.1990 - 08.1992] UCF10..LHD |
55488-50010 |
US $9.90 |
||
|
55489B
|
55489B
55489-50010 Lens, Front Foot Lamp, No.1[08.1990 - 08.1992] UCF10..LHD |
55489-50010 |
US $3.79 |
||
|
55506C
|
55506C
55506-50010 Compartment Sub-Assy, GloveGLOVE [12.1989 - 08.1992] UCF10..LHD |
55506-50010 |
US $161.62 |
||
|
55506C
|
55506C
55506-50030 Compartment Sub-Assy, GloveGLOVE [08.1992 - 10.1994] UCF10..LHD |
55506-50030 |
US $174.72 |
||
|
55507
|
55507
55505-50010 Hinge Sub-Assy, Glove Compartment DoorGLOVE COMPARTMENT DOOR [12.1989 - 08.1992] UCF10..LHD |
55505-50010 |
US $40.48 |
||
|
55507
|
55507
55505-50030 Hinge Sub-Assy, Glove Compartment DoorGLOVE COMPARTMENT DOOR [08.1992 - 10.1994] UCF10..LHD |
55505-50030 |
US $44.41 |
||
|
55510
|
55510
55503-50010-B0 Door Assy, Glove CompartmentGLOVE COMPARTMENT [08.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55503-50010-B0 |
US $161.62 |
||
|
55510
|
55510
55503-50010-E0 Door Assy, Glove CompartmentGLOVE COMPARTMENT [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55503-50010-E0 |
US $161.62 |
||
|
55510
|
55510
55503-50010-J0 Door Assy, Glove CompartmentGLOVE COMPARTMENT [08.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55503-50010-J0 |
US $161.62 |
||
|
55510
|
55510
55503-50010-K0 Door Assy, Glove CompartmentGLOVE COMPARTMENT [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55503-50010-K0 |
US $161.62 |
||
|
55510
|
55510
55550-50010-02 Door Assy, Glove CompartmentGLOVE COMPARTMENT [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55550-50010-02 |
US $224.22 |
||
|
55510
|
55510
55550-50010-03 Door Assy, Glove CompartmentGLOVE COMPARTMENT [12.1989 - 08.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55550-50010-03 |
US $224.22 |
||
|
55510
|
55510
55550-50010-04 Door Assy, Glove CompartmentGLOVE COMPARTMENT [12.1989 - 08.1992] UCF10..LHD DARK BLUE,TRIM8# |
55550-50010-04 |
US $224.22 |
||
|
55510
|
55510
55550-50010-05 Door Assy, Glove CompartmentGLOVE COMPARTMENT [12.1989 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55550-50010-05 |
US $224.22 |
||
|
55510
|
55510
55550-50010-06 Door Assy, Glove CompartmentGLOVE COMPARTMENT [12.1989 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55550-50010-06 |
US $224.22 |
||
|
55522B
|
55522B
55552-50030 Cover, Radio Tuner OpeningRADIO TUNER OPENING [08.1992 - 10.1994] UCF10..LHD |
55552-50030 |
US $24.61 |
||
|
55531A
|
55531A
55531-50010 Panel, Glove Compartment, No.1GLOVE COMPARTMENT, NO.1 [12.1989 - 10.1994] UCF10..LHD |
55531-50010 |
US $5.24 |
||
|
55532A
|
55532A
55532-50010 Panel, Glove Compartment, No.2GLOVE COMPARTMENT, NO.2 [12.1989 - 10.1994] UCF10..LHD |
55532-50010 |
US $4.66 |
||
|
55556
|
55556
55556-50020 Arm, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [12.1989 - 08.1992] UCF10..LHD |
55556-50020 |
US $7.43 |
||
|
55556
|
55556
55556-50040 Arm, Glove Compartment Door Check[10.1992 - 10.1994] UCF10 |
55556-50040 |
US $6.26 |
||
|
55556
|
55556
55556-50050 Arm, Glove Compartment Door Check[08.1992 - 10.1992] UCF10 |
55556-50050 |
US $6.26 |
||
|
55560A
|
55560A
55560-50010 Lock Assy, Glove Compartment DoorGLOVE COMPARTMENT DOOR [12.1989 - 08.1992] UCF10..LHD |
55560-50010 |
US $38.58 |
||
|
55560A
|
55560A
55560-50020 Lock Assy, Glove Compartment DoorGLOVE COMPARTMENT DOOR [08.1992 - 10.1994] UCF10..LHD |
55560-50020 |
US $39.89 |
||
|
55565
|
55565
55565-50010-02 Handle, Glove Compartment Door LockGLOVE COMPARTMENT DOOR LOCK [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55565-50010-02 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-03 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55565-50010-03 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-04 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55565-50010-04 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-05 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
55565-50010-05 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-06 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
55565-50010-06 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-E0 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
55565-50010-E0 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-K0 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10..ARL,GEN,V TUAPE,TRIM9# |
55565-50010-K0 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10..ARL,GEN,V TUAPE,TRIM9# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-P0 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
55565-50010-P0 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
55565-50010-B3 |
US $4.80 |
||
|
55565
|
55565
55565-50010-W3 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 DK.BLUE,TRIM8# |
55565-50010-W3 |
US $6.99 |
||
| replacement | |||||
|
55565
|
55565
55565-50010-B3 Handle, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 DK.BLUE,TRIM8# |
55565-50010-B3 |
US $4.80 |
||
|
55568
|
55568
55568-50010 Plate, Glove Compartment Door Pad[12.1989 - 10.1994] UCF10 |
55568-50010 |
US $1.46 |
||
|
55568B
|
55568B
55568-50020 Plate, Glove Compartment Door Finish[08.1992 - 01.1993] UCF10 |
55568-50020 |
US $15 |
||
|
55568B
|
55568B
55568-50030 Plate, Glove Compartment Door Finish[01.1993 - 10.1994] UCF10 |
55568-50030 |
US $11.50 |
||
|
55569
|
55569
55569-50010-02 Cover, Glove Compartment Door LockGLOVE COMPARTMENT DOOR LOCK [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55569-50010-02 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-03 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55569-50010-03 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-04 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55569-50010-04 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-05 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
55569-50010-05 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-06 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
55569-50010-06 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-E0 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
55569-50010-E0 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-K0 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10..ARL,GEN,V TUAPE,TRIM9# |
55569-50010-K0 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10..ARL,GEN,V TUAPE,TRIM9# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-P0 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
55569-50010-P0 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
55569-50010-22 |
US $5.82 |
||
|
55569
|
55569
55569-50010-W3 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 DK.BLUE,TRIM8# |
55569-50010-W3 |
US $5.82 |
||
| replacement | |||||
|
55569
|
55569
55569-50010-22 Cover, Glove Compartment Door Lock[08.1992 - 10.1994] UCF10 DK.BLUE,TRIM8# |
55569-50010-22 |
US $5.82 |
||
|
55590
|
55590
55590-50010
Plate Assy, Grove Compartment Door Lock Striker
[12.1989 - 08.1990] UCF10..V |
55590-50010 |
— | ||
| replacements | |||||
|
55590
|
55590
55590-50011 Plate Assy, Grove Compartment Door Lock StrikerGROVE COMPARTMENT DOOR LOCK STRIKER [12.1989 - 08.1990] UCF10..V |
55590-50011 |
US $13.25 |
||
|
55590
|
55590
55590-50020 Plate Assy, Grove Compartment Door Lock Striker[12.1989 - 08.1990] UCF10..V |
55590-50020 |
US $13.25 |
||
|
55590
|
55590
55590-50011 Plate Assy, Grove Compartment Door Lock StrikerGROVE COMPARTMENT DOOR LOCK STRIKER [08.1990 - 08.1992] UCF10..LHD |
55590-50011 |
US $13.25 |
||
|
55590
|
55590
55590-50030 Plate Assy, Grove Compartment Door Lock Striker[08.1992 - 10.1994] UCF10 |
55590-50030 |
US $15.58 |
||
|
55606
|
55606
55606-50010-02 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..V DEEP RED,TRIM3# |
55606-50010-02 |
US $81.54 |
||
| replacement | |||||
|
55606
|
55606
55606-50011-02 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..V DEEP RED,TRIM3# |
55606-50011-02 |
US $80.08 |
||
|
55606
|
55606
55606-50010-03 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD GRAY,TRIM1# |
55606-50010-03 |
US $81.54 |
||
| replacement | |||||
|
55606
|
55606
55606-50011-03 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD GRAY,TRIM1# |
55606-50011-03 |
US $80.08 |
||
|
55606
|
55606
55606-50010-04 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD BLUE,TRIM8# |
55606-50010-04 |
US $81.54 |
||
| replacement | |||||
|
55606
|
55606
55606-50011-04 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD BLUE,TRIM8# |
55606-50011-04 |
US $80.08 |
||
|
55606
|
55606
55606-50010-06 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD ROSE,TRIM4# |
55606-50010-06 |
US $81.54 |
||
| replacement | |||||
|
55606
|
55606
55606-50011-06 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD ROSE,TRIM4# |
55606-50011-06 |
US $80.08 |
||
|
55606
|
55606
55606-50010-08 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD IVORY,TRIM0# |
55606-50010-08 |
US $81.54 |
||
| replacement | |||||
|
55606
|
55606
55606-50011-08 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [12.1989 - 07.1990] UCF10..LHD IVORY,TRIM0# |
55606-50011-08 |
US $80.08 |
||
|
55606
|
55606
55606-50011-02 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [07.1990 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55606-50011-02 |
US $80.08 |
||
|
55606
|
55606
55606-50011-03 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [07.1990 - 08.1992] UCF10..LHD GRAY,TRIM1# |
55606-50011-03 |
US $80.08 |
||
|
55606
|
55606
55606-50011-04 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [07.1990 - 08.1992] UCF10..LHD BLUE,TRIM8# |
55606-50011-04 |
US $80.08 |
||
|
55606
|
55606
55606-50011-06 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [07.1990 - 08.1992] UCF10..LHD ROSE,TRIM4# |
55606-50011-06 |
US $80.08 |
||
|
55606
|
55606
55606-50011-08 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [07.1990 - 08.1992] UCF10..LHD IVORY,TRIM0# |
55606-50011-08 |
US $80.08 |
||
|
55606
|
55606
55606-50030-A0 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [08.1992 - 10.1994] UCF10..LHD IVORY,TRIM0# |
55606-50030-A0 |
US $126.67 |
||
|
55606
|
55606
55606-50030-B0 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [08.1992 - 10.1994] UCF10..LHD SLATE GRAY,TRIM1# |
55606-50030-B0 |
US $126.67 |
||
|
55606
|
55606
55606-50030-J0 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [08.1992 - 10.1994] UCF10..LHD EISEN BLUE,TRIM8# |
55606-50030-J0 |
US $126.67 |
||
|
55606
|
55606
55606-50030-K0 Cover Sub-Assy, Instrument Panel Under, No.1INSTRUMENT PANEL UNDER, NO.1 [08.1992 - 10.1994] UCF10..V ME. TAUPE,TRIM9# |
55606-50030-K0 |
US $126.67 |
||
|
55607
|
55607
55607-50010-02 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55607-50010-02 |
US $109.20 |
||
|
55607
|
55607
55607-50010-03 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [12.1989 - 08.1992] UCF10..LHD GRAY,TRIM1# |
55607-50010-03 |
US $109.20 |
||
|
55607
|
55607
55607-50010-04 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [12.1989 - 08.1992] UCF10..LHD BLUE,TRIM8# |
55607-50010-04 |
US $109.20 |
||
|
55607
|
55607
55607-50010-06 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [12.1989 - 08.1992] UCF10..LHD ROSE,TRIM4# |
55607-50010-06 |
US $109.20 |
||
|
55607
|
55607
55607-50010-08 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [12.1989 - 08.1992] UCF10..LHD IVORY,TRIM0# |
55607-50010-08 |
US $109.20 |
||
|
55607
|
55607
55607-50040-A0 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [08.1992 - 10.1994] UCF10..LHD IVORY,TRIM0# |
55607-50040-A0 |
US $99.01 |
||
|
55607
|
55607
55607-50040-B0 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [08.1992 - 10.1994] UCF10..LHD SLATE GRAY,TRIM1# |
55607-50040-B0 |
US $99.01 |
||
|
55607
|
55607
55607-50040-J0 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [08.1992 - 10.1994] UCF10..LHD EISEN BLUE,TRIM8# |
55607-50040-J0 |
US $99.01 |
||
|
55607
|
55607
55607-50040-K0 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [08.1992 - 10.1994] UCF10..V ME. TAUPE,TRIM9# |
55607-50040-K0 |
US $99.01 |
||
|
55650
|
55650
55650-50010-02 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55650-50010-02 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-D5 Register Assy, Instrument Panel, No.1[12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55650-50011-D5 |
US $75.71 |
||
|
55650
|
55650
55650-50010-03 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55650-50010-03 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50010-04 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD DARK BLUE,TRIM8# |
55650-50010-04 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD DARK BLUE,TRIM8# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50010-05 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD GREIGE,TRIM0# |
55650-50010-05 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD GREIGE,TRIM0# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50010-06 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD DARK ROSE,TRIM4# |
55650-50010-06 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [12.1989 - 02.1992] UCF10..LHD DARK ROSE,TRIM4# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50011-E0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55650-50011-E0 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50011-E2 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55650-50011-E2 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50011-E4 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55650-50011-E4 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50011-K0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55650-50011-K0 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50011-P0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55650-50011-P0 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55650-50011-C0 |
US $75.71 |
||
|
55650
|
55650
55650-50011-W3 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 10.1994] UCF10..LHD DARK BLUE,TRIM8# |
55650-50011-W3 |
US $75.71 |
||
| replacement | |||||
|
55650
|
55650
55650-50011-C0 Register Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [02.1992 - 10.1994] UCF10..LHD DARK BLUE,TRIM8# |
55650-50011-C0 |
US $75.71 |
||
|
55660
|
55660
55660-50010 Register Assy, Instrument Panel, No.2[12.1989 - 10.1994] UCF10 |
55660-50010 |
US $177.63 |
||
|
55670
|
55670
55670-50010-02 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55670-50010-02 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-03
Register Assy, Instrument Panel, No.3
[12.1989 - 08.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55670-50010-03 |
— | ||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-04 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD DARK BLUE,TRIM8# |
55670-50010-04 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD DARK BLUE,TRIM8# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-05 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55670-50010-05 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-06 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55670-50010-06 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [12.1989 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-E0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55670-50010-E0 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-K0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55670-50010-K0 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-P0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55670-50010-P0 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55670-50010-C0 |
US $75.71 |
||
|
55670
|
55670
55670-50010-W3 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55670-50010-W3 |
US $75.71 |
||
| replacement | |||||
|
55670
|
55670
55670-50010-C0 Register Assy, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [08.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55670-50010-C0 |
US $75.71 |
||
|
55680B
|
55680B
55680-50010-02 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55680-50010-02 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-50010-C0
Register Assy, Instrument Panel, Lower No.1
[12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55680-50010-C0 |
— | ||
|
55680B
|
55680B
55680-50010-03 Register Assy, Instrument Panel, Lower No.1[12.1989 - 08.1992] UCF10 GRAY,TRIM1# |
55680-50010-03 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-22020-B0 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [12.1989 - 08.1992] UCF10 GRAY,TRIM1# |
55680-22020-B0 |
US $26.50 |
||
|
55680B
|
55680B
55680-50010-04 Register Assy, Instrument Panel, Lower No.1[12.1989 - 08.1992] UCF10 BLUE,TRIM8# |
55680-50010-04 |
US $26.50 |
||
|
55680B
|
55680B
55680-50010-06 Register Assy, Instrument Panel, Lower No.1[12.1989 - 08.1992] UCF10 ROSE,TRIM4# |
55680-50010-06 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-50010-C0
Register Assy, Instrument Panel, Lower No.1
[12.1989 - 08.1992] UCF10 ROSE,TRIM4# |
55680-50010-C0 |
— | ||
|
55680B
|
55680B
55680-50010-08 Register Assy, Instrument Panel, Lower No.1[12.1989 - 08.1992] UCF10 IVORY,TRIM0# |
55680-50010-08 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-22020-B0 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [12.1989 - 08.1992] UCF10 IVORY,TRIM0# |
55680-22020-B0 |
US $26.50 |
||
|
55680B
|
55680B
55680-50010-A0 Register Assy, Instrument Panel, Lower No.1[08.1992 - 05.1993] UCF10 IVORY,TRIM0# |
55680-50010-A0 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-22020-B0 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [08.1992 - 05.1993] UCF10 IVORY,TRIM0# |
55680-22020-B0 |
US $26.50 |
||
|
55680B
|
55680B
55680-50010-K0 Register Assy, Instrument Panel, Lower No.1[08.1992 - 05.1993] UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
55680-50010-K0 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-22020-B0 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [08.1992 - 05.1993] UCF10..ARL,GEN,V ME. TAUPE,TRIM9# |
55680-22020-B0 |
US $26.50 |
||
|
55680B
|
55680B
55680-50010-S7 Register Assy, Instrument Panel, Lower No.1[08.1992 - 05.1993] UCF10 SLATE GRAY,TRIM1# |
55680-50010-S7 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-22020-B0 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [08.1992 - 05.1993] UCF10 SLATE GRAY,TRIM1# |
55680-22020-B0 |
US $26.50 |
||
|
55680B
|
55680B
55680-50010-W4 Register Assy, Instrument Panel, Lower No.1[08.1992 - 05.1993] UCF10 EISEN BLUE,TRIM8# |
55680-50010-W4 |
US $26.50 |
||
| replacement | |||||
|
55680B
|
55680B
55680-22020-B0 Register Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [08.1992 - 05.1993] UCF10 EISEN BLUE,TRIM8# |
55680-22020-B0 |
US $26.50 |
||
|
55961
|
55961
55961-50010-02 Nozzle, Side Defroster, No.1SIDE DEFROSTER, NO.1 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55961-50010-02 |
US $13.25 |
||
|
55961
|
55961
55961-50010-03 Nozzle, Side Defroster, No.1[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55961-50010-03 |
US $13.25 |
||
| replacement | |||||
|
55961
|
55961
55961-50010-P0 Nozzle, Side Defroster, No.1[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55961-50010-P0 |
US $13.25 |
||
|
55961
|
55961
55961-50010-04 Nozzle, Side Defroster, No.1[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55961-50010-04 |
US $13.25 |
||
| replacement | |||||
|
55961
|
55961
55961-50010-W3 Nozzle, Side Defroster, No.1[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55961-50010-W3 |
US $13.25 |
||
|
55961
|
55961
55961-50010-05 Nozzle, Side Defroster, No.1[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
55961-50010-05 |
US $13.25 |
||
|
55961
|
55961
55961-50010-06 Nozzle, Side Defroster, No.1[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
55961-50010-06 |
US $13.25 |
||
|
55961
|
55961
55961-50010-E0 Nozzle, Side Defroster, No.1[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
55961-50010-E0 |
US $13.25 |
||
|
55961
|
55961
55961-50010-K0 Nozzle, Side Defroster, No.1[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9# |
55961-50010-K0 |
US $13.25 |
||
|
55961
|
55961
55961-50010-P0 Nozzle, Side Defroster, No.1[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
55961-50010-P0 |
US $13.25 |
||
|
55961
|
55961
55961-50010-W3 Nozzle, Side Defroster, No.1[08.1992 - 10.1994] UCF10 DK. BLUE,TRIM8# |
55961-50010-W3 |
US $13.25 |
||
|
55962
|
55962
55962-50010-02 Nozzle, Side Defroster, No.2SIDE DEFROSTER, NO.2 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55962-50010-02 |
US $13.40 |
||
|
55962
|
55962
55962-50010-03 Nozzle, Side Defroster, No.2[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55962-50010-03 |
US $13.40 |
||
| replacement | |||||
|
55962
|
55962
55962-50010-P0 Nozzle, Side Defroster, No.2[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
55962-50010-P0 |
US $13.40 |
||
|
55962
|
55962
55962-50010-04 Nozzle, Side Defroster, No.2[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55962-50010-04 |
US $13.40 |
||
| replacement | |||||
|
55962
|
55962
55962-50010-W3 Nozzle, Side Defroster, No.2[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
55962-50010-W3 |
US $13.40 |
||
|
55962
|
55962
55962-50010-05 Nozzle, Side Defroster, No.2[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
55962-50010-05 |
US $13.40 |
||
|
55962
|
55962
55962-50010-06 Nozzle, Side Defroster, No.2[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
55962-50010-06 |
US $13.40 |
||
|
55962
|
55962
55962-50010-E0 Nozzle, Side Defroster, No.2[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
55962-50010-E0 |
US $13.40 |
||
|
55962
|
55962
55962-50010-K0 Nozzle, Side Defroster, No.2[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9# |
55962-50010-K0 |
US $13.40 |
||
|
55962
|
55962
55962-50010-P0 Nozzle, Side Defroster, No.2[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
55962-50010-P0 |
US $13.40 |
||
|
55962
|
55962
55962-50010-W3 Nozzle, Side Defroster, No.2[08.1992 - 10.1994] UCF10 DK. BLUE,TRIM8# |
55962-50010-W3 |
US $13.40 |
||
|
55981
|
55981
55981-50010-02 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55981-50010-02 |
US $43.97 |
||
|
55981
|
55981
55981-50010-03 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [12.1989 - 08.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55981-50010-03 |
US $43.97 |
||
|
55981
|
55981
55981-50010-04 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [12.1989 - 08.1992] UCF10..LHD DARK BLUE,TRIM8# |
55981-50010-04 |
US $43.97 |
||
|
55981
|
55981
55981-50010-05 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [12.1989 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55981-50010-05 |
US $43.97 |
||
|
55981
|
55981
55981-50010-06 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [12.1989 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55981-50010-06 |
US $43.97 |
||
|
55981
|
55981
55981-50030-B0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [08.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55981-50030-B0 |
US $44.41 |
||
|
55981
|
55981
55981-50030-E0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55981-50030-E0 |
US $44.41 |
||
|
55981
|
55981
55981-50030-J0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [08.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55981-50030-J0 |
US $44.41 |
||
|
55981
|
55981
55981-50030-K0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55981-50030-K0 |
US $44.41 |
||
|
55982
|
55982
55982-50010-02 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [12.1989 - 08.1991] UCF10..V DEEP RED,TRIM3# |
55982-50010-02 |
US $43.97 |
||
|
55982
|
55982
55982-50010-03 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [12.1989 - 08.1992] UCF10..LHD SHADOW GRAY,TRIM1# |
55982-50010-03 |
US $43.97 |
||
|
55982
|
55982
55982-50010-04 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [12.1989 - 08.1992] UCF10..LHD DARK BLUE,TRIM8# |
55982-50010-04 |
US $43.97 |
||
|
55982
|
55982
55982-50010-05 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [12.1989 - 08.1992] UCF10..LHD GREIGE,TRIM0# |
55982-50010-05 |
US $43.97 |
||
|
55982
|
55982
55982-50010-06 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [12.1989 - 08.1992] UCF10..LHD DARK ROSE,TRIM4# |
55982-50010-06 |
US $43.97 |
||
|
55982
|
55982
55982-50030-B0 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [08.1992 - 10.1994] UCF10..LHD SHADOW GRAY,TRIM1# |
55982-50030-B0 |
US $49.50 |
||
|
55982
|
55982
55982-50030-E0 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [08.1992 - 10.1994] UCF10..LHD OAK,TRIM0# |
55982-50030-E0 |
US $49.50 |
||
|
55982
|
55982
55982-50030-J0 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [08.1992 - 10.1994] UCF10..LHD DK. BLUE,TRIM8# |
55982-50030-J0 |
US $49.50 |
||
|
55982
|
55982
55982-50030-K0 Garnish, Defroster Nozzle, No.2DEFROSTER NOZZLE, NO.2 [08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
55982-50030-K0 |
US $49.50 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.08 |
||
| replacement | |||||
|
9011906022
|
9011906022
90080-11127 New Genuine Part |
90080-11127 |
US $2.73 |
||
|
9011906106
|
9011906106
90119-06106 New Genuine Part |
90119-06106 |
from US $0.64 |
||
|
9011906251
|
9011906251
90119-06251 New Genuine Part |
90119-06251 |
US $2.56 |
||
|
9016840036
|
9016840036
90168-40036
SCREW
|
90168-40036 |
— | ||
|
9017904017
|
9017904017
90179-04017 New Genuine Part |
90179-04017 |
US $1.46 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $2.57 |
||
|
9046711055
|
9046711055
90467-11055 New Genuine Part |
90467-11055 |
US $2.18 |
||
|
9046714023
|
9046714023
90467-14023 Clip, Instrument Panel, No.1 |
90467-14023 |
US $3.04 |
||
|
9046714024
|
9046714024
90467-14024 Clip, Instrument Panel, No.1 |
90467-14024 |
US $2.48 |
||
|
9046714025
|
9046714025
90467-14025 Clip, Instrument Panel, No.1 |
90467-14025 |
US $2.48 |
||
|
9046714026
|
9046714026
90467-14026 New Genuine Part |
90467-14026 |
US $2.62 |
||
|
9046714027
|
9046714027
90467-14027 Clip, Instrument Panel, No.1 |
90467-14027 |
US $2.48 |
||
|
9046714028
|
9046714028
90467-14028 Clip, Instrument Panel, No.1 |
90467-14028 |
US $2.48 |
||
|
9046804087
|
9046804087
90468-04087 CLIP |
90468-04087 |
from US $1.22 |
||
|
9046804147
|
9046804147
90468-04147 Clip(For Back Door Trim Board) |
90468-04147 |
US $1.12 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.92 |
||
|
9090176002
|
9090176002
90901-76002 New Genuine Part |
90901-76002 |
US $1.16 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165540618
|
9165540618
91655-40618
New Genuine Part
|
91655-40618 |
— | ||
| replacement | |||||
|
9165540618
|
9165540618
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9165560818
|
9165560818
91655-60818
New Genuine Part
|
91655-60818 |
— | ||
| replacement | |||||
|
9165560818
|
9165560818
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9352053014
|
9352053014
93520-53014 New Genuine Part |
93520-53014 |
US $1.46 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
