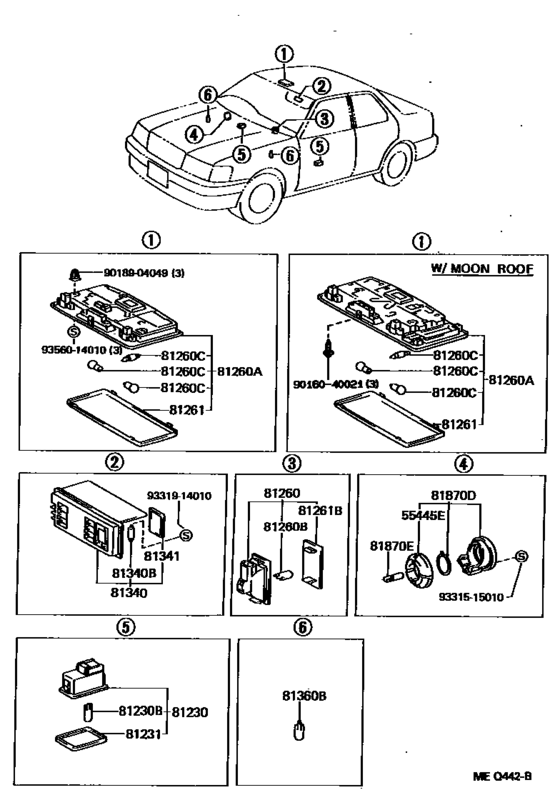

Interior Lamp ([12.1989 - ] (8912- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55445E
|
55445E
55445-50020 Plate, Instrument Panel Finish[12.1989 - 10.1994] UCF10 |
55445-50020 |
US $11.65 |
||
|
81230
|
81230
81230-30140 Lamp Assy, Courtesy[08.1992 - 10.1994] UCF10..ARL,GEN,V |
81230-30140 |
from US $15.46 |
||
|
81230
|
81230
81230-50010 Lamp Assy, Courtesy[12.1989 - 08.1992] UCF10..ARL,GEN,V |
81230-50010 |
US $21.55 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[12.1989 - 10.1994] UCF10 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50010 Lens, Courtesy Lamp[12.1989 - 10.1994] UCF10..ARL,GEN,V |
81231-50010 |
from US $6.40 |
||
|
81260
|
81260
81260-50010 Lamp Assy, Glove Box[12.1989 - 10.1994] UCF10 |
81260-50010 |
from US $8.37 |
||
|
81260A
|
81260A
81260-50020-02 Lamp Assy, MapMAP [12.1989 - 08.1991] UCF10..V RED,TRIM3# |
81260-50020-02 |
US $214.03 |
||
|
81260A
|
81260A
81260-50020-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 SHADOW GRAY,TRIM1# |
81260-50020-03 |
US $216.94 |
||
|
81260A
|
81260A
81260-50020-04 Lamp Assy, Map[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
81260-50020-04 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50020-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 DARK BLUE,TRIM8# |
81260-50020-03 |
US $216.94 |
||
|
81260A
|
81260A
81260-50020-05 Lamp Assy, Map[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
81260-50020-05 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50020-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 GREIGE,TRIM0# |
81260-50020-03 |
US $216.94 |
||
|
81260A
|
81260A
81260-50020-06 Lamp Assy, Map[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
81260-50020-06 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50020-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 DARK ROSE,TRIM4# |
81260-50020-03 |
US $216.94 |
||
|
81260A
|
81260A
81260-50030-02 Lamp Assy, MapMAP [12.1989 - 08.1991] UCF10..V W(MOON ROOF),RED,TRIM3# |
81260-50030-02 |
US $243.15 |
||
|
81260A
|
81260A
81260-50030-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
81260-50030-03 |
US $243.15 |
||
|
81260A
|
81260A
81260-50030-04 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),DARK BLUE,TRIM8# |
81260-50030-04 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50030-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),DARK BLUE,TRIM8# |
81260-50030-03 |
US $243.15 |
||
|
81260A
|
81260A
81260-50030-05 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),GREIGE,TRIM0# |
81260-50030-05 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50030-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),GREIGE,TRIM0# |
81260-50030-03 |
US $243.15 |
||
|
81260A
|
81260A
81260-50030-06 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),DARK ROSE,TRIM4# |
81260-50030-06 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50030-03 Lamp Assy, Map[12.1989 - 08.1992] UCF10 W(MOON ROOF),DARK ROSE,TRIM4# |
81260-50030-03 |
US $243.15 |
||
|
81260A
|
81260A
81260-50040-B0 Lamp Assy, Map[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
81260-50040-B0 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50040-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1# |
81260-50040-C0 |
US $216.94 |
||
|
81260A
|
81260A
81260-50040-E0 Lamp Assy, Map[08.1992 - 10.1994] UCF10 OAK,TRIM0# |
81260-50040-E0 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50040-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10 OAK,TRIM0# |
81260-50040-C0 |
US $216.94 |
||
|
81260A
|
81260A
81260-50040-J0 Lamp Assy, Map[08.1992 - 10.1994] UCF10 DK.BLUE,TRIM8# |
81260-50040-J0 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50040-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10 DK.BLUE,TRIM8# |
81260-50040-C0 |
US $216.94 |
||
|
81260A
|
81260A
81260-50040-K0 Lamp Assy, Map[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9# |
81260-50040-K0 |
US $216.94 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50040-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9# |
81260-50040-C0 |
US $216.94 |
||
|
81260A
|
81260A
81260-50050-B0 Lamp Assy, Map[08.1992 - 10.1994] UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
81260-50050-B0 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50050-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10 W(MOON ROOF),SHADOW GRAY,TRIM1# |
81260-50050-C0 |
US $243.15 |
||
|
81260A
|
81260A
81260-50050-E0 Lamp Assy, Map[08.1992 - 10.1994] UCF10 W(MOON ROOF),OAK,TRIM0# |
81260-50050-E0 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50050-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10 W(MOON ROOF),OAK,TRIM0# |
81260-50050-C0 |
US $243.15 |
||
|
81260A
|
81260A
81260-50050-J0 Lamp Assy, Map[08.1992 - 10.1994] UCF10 W(MOON ROOF),DK.BLUE,TRIM8# |
81260-50050-J0 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50050-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10 W(MOON ROOF),DK.BLUE,TRIM8# |
81260-50050-C0 |
US $243.15 |
||
|
81260A
|
81260A
81260-50050-K0 Lamp Assy, Map[08.1992 - 10.1994] UCF10..ARL,GEN,V W(MOON ROOF),TAUPE,TRIM9# |
81260-50050-K0 |
US $243.15 |
||
| replacement | |||||
|
81260A
|
81260A
81260-50050-C0 Lamp Assy, MapMAP [08.1992 - 10.1994] UCF10..ARL,GEN,V W(MOON ROOF),TAUPE,TRIM9# |
81260-50050-C0 |
US $243.15 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[12.1989 - 10.1994] UCF10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
81260C
|
81260C
90981-12005 Bulb, Room Lamp, No.1[12.1989 - 08.1992] UCF10 12V 8W,W(MOON ROOF),MAP LAMP |
90981-12005 |
from US $2.24 |
||
|
81260C
|
81260C
90981-12014 Bulb, Room Lamp, No.1[12.1989 - 10.1994] UCF10 12V 10W,MAP LAMP |
90981-12014 |
from US $2.72 |
||
|
81260C
|
81260C
99132-12100 Bulb, Room Lamp, No.1[12.1989 - 10.1994] UCF10 12V 10W,ROOM LAMP |
99132-12100 |
from US $2.40 |
||
| replacement | |||||
|
81260C
|
81260C
99132121001
99132121001
[12.1989 - 10.1994] UCF10 12V 10W,ROOM LAMP |
99132121001 |
— | ||
|
81261
|
81261
81261-50020 Lens And Cover, Map Lamp[12.1989 - 10.1994] UCF10 |
81261-50020 |
US $14.12 |
||
|
81261
|
81261
81261-50030 Lens And Cover, Map Lamp[12.1989 - 10.1994] UCF10 W(MOON ROOF) |
81261-50030 |
US $13.10 |
||
|
81261B
|
81261B
81261-50010 Lens,glove Box Lamp[12.1989 - 10.1994] UCF10 |
81261-50010 |
US $5.11 |
||
|
81340
|
81340
81340-50020-02 Lamp Assy, VanityVANITY [12.1989 - 08.1991] UCF10..V RED,TRIM3#,LH |
81340-50020-02 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50020-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..V RED,TRIM3#,LH |
81340-50020-03 |
US $113.57 |
||
|
81340
|
81340
81340-50020-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V SHADOW GRAY,TRIM1#,LH |
81340-50020-03 |
US $113.57 |
||
|
81340
|
81340
81340-50020-04 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK BLUE,TRIM8#,LH |
81340-50020-04 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50020-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK BLUE,TRIM8#,LH |
81340-50020-03 |
US $113.57 |
||
|
81340
|
81340
81340-50020-05 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V GREIGE,TRIM0#,LH |
81340-50020-05 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50020-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V GREIGE,TRIM0#,LH |
81340-50020-03 |
US $113.57 |
||
|
81340
|
81340
81340-50020-06 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK ROSE,TRIM4#,LH |
81340-50020-06 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50020-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK ROSE,TRIM4#,LH |
81340-50020-03 |
US $113.57 |
||
|
81340
|
81340
81340-50040-B1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 SHADOW GRAY,TRIM1#,LH |
81340-50040-B1 |
US $113.57 |
||
|
81340
|
81340
81340-50040-E1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 GREIGE,TRIM0#,LH |
81340-50040-E1 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50040-B1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 GREIGE,TRIM0#,LH |
81340-50040-B1 |
US $113.57 |
||
|
81340
|
81340
81340-50040-E2 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK ROSE,TRIM4#,LH |
81340-50040-E2 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50040-B1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK ROSE,TRIM4#,LH |
81340-50040-B1 |
US $113.57 |
||
|
81340
|
81340
81340-50040-J0 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK BLUE,TRIM8#,LH |
81340-50040-J0 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81340-50040-B1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK BLUE,TRIM8#,LH |
81340-50040-B1 |
US $113.57 |
||
|
81340
|
81340
81340-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1#,LH |
81340-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81340-50050-E1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 OAK,TRIM0#,LH |
81340-50050-E1 |
US $110.66 |
||
| replacement | |||||
|
81340
|
81340
81340-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 OAK,TRIM0#,LH |
81340-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81340-50050-J1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 DK. BLUE,TRIM8#,LH |
81340-50050-J1 |
US $110.66 |
||
| replacement | |||||
|
81340
|
81340
81340-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 DK. BLUE,TRIM8#,LH |
81340-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81340-50050-K1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9#,LH |
81340-50050-K1 |
US $110.66 |
||
| replacement | |||||
|
81340
|
81340
81340-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9#,LH |
81340-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81350-50010-02 Lamp Assy, VanityVANITY [12.1989 - 08.1991] UCF10..V RED,TRIM3#,RH |
81350-50010-02 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50010-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..V RED,TRIM3#,RH |
81350-50010-03 |
US $113.57 |
||
|
81340
|
81340
81350-50010-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V SHADOW GRAY,TRIM1#,RH |
81350-50010-03 |
US $113.57 |
||
|
81340
|
81340
81350-50010-04 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK BLUE,TRIM8#,RH |
81350-50010-04 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50010-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK BLUE,TRIM8#,RH |
81350-50010-03 |
US $113.57 |
||
|
81340
|
81340
81350-50010-05 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V GREIGE,TRIM0#,RH |
81350-50010-05 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50010-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V GREIGE,TRIM0#,RH |
81350-50010-03 |
US $113.57 |
||
|
81340
|
81340
81350-50010-06 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK ROSE,TRIM4#,RH |
81350-50010-06 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50010-03 Lamp Assy, Vanity[12.1989 - 08.1991] UCF10..GEN,V DARK ROSE,TRIM4#,RH |
81350-50010-03 |
US $113.57 |
||
|
81340
|
81340
81350-50030-B1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 SHADOW GRAY,TRIM1#,RH |
81350-50030-B1 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50030-B0 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 SHADOW GRAY,TRIM1#,RH |
81350-50030-B0 |
US $113.57 |
||
|
81340
|
81340
81350-50030-E1 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 GREIGE,TRIM0#,RH |
81350-50030-E1 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50030-B0 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 GREIGE,TRIM0#,RH |
81350-50030-B0 |
US $113.57 |
||
|
81340
|
81340
81350-50030-E2 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK ROSE,TRIM4#,RH |
81350-50030-E2 |
US $113.57 |
||
| replacement | |||||
|
81340
|
81340
81350-50030-B0 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK ROSE,TRIM4#,RH |
81350-50030-B0 |
US $113.57 |
||
|
81340
|
81340
81350-50030-J0 Lamp Assy, VanityVANITY [08.1991 - 08.1992] UCF10 DARK BLUE,TRIM8#,RH |
81350-50030-J0 |
US $113.57 |
||
|
81340
|
81340
81350-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 SHADOW GRAY,TRIM1#,RH |
81350-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81350-50050-E1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 OAK,TRIM0#,RH |
81350-50050-E1 |
US $110.66 |
||
| replacement | |||||
|
81340
|
81340
81350-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 OAK,TRIM0#,RH |
81350-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81350-50050-J1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 DK. BLUE,TRIM8#,RH |
81350-50050-J1 |
US $110.66 |
||
| replacement | |||||
|
81340
|
81340
81350-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10 DK. BLUE,TRIM8#,RH |
81350-50050-B1 |
US $110.66 |
||
|
81340
|
81340
81350-50050-K1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9#,RH |
81350-50050-K1 |
US $110.66 |
||
| replacement | |||||
|
81340
|
81340
81350-50050-B1 Lamp Assy, Vanity[08.1992 - 10.1994] UCF10..ARL,GEN,V TAUPE,TRIM9#,RH |
81350-50050-B1 |
US $110.66 |
||
|
81340B
|
81340B
90981-14007 Bulb, Room Lamp, No.1[12.1989 - 08.1991] UCF10..GEN,V 12V 3W |
90981-14007 |
from US $4.76 |
||
|
81341
|
81341
81341-50010 Lens, Vanity Lamp[12.1989 - 08.1991] UCF10..GEN,V |
81341-50010 |
US $10.66 |
||
|
81360B
|
81360B
90981-11018 Bulb, Position Indicator Lamp[12.1989 - 08.1992] UCF10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
81360B
|
81360B
90981-11041 Bulb, Ash Receptacle Lamp[08.1992 - 08.1993] UCF10..LHD..EUR 14V 1.4W; UCF10..V;UCF10..RHD 14V 1.4W |
90981-11041 |
US $2.24 |
||
|
81870D
|
81870D
81870-50010 Lamp Assy, Key Cylinder[12.1989 - 10.1994] UCF10 |
81870-50010 |
US $41.64 |
||
|
81870E
|
81870E
90981-11041 Bulb, Ash Receptacle Lamp[12.1989 - 08.1992] UCF10 14V 1.4W |
90981-11041 |
US $2.24 |
||
|
9016040021
|
9016040021
90160-40021 New Genuine Part |
90160-40021 |
US $1.05 |
||
|
9018904049
|
9018904049
90189-04049 GROMMET |
90189-04049 |
US $2.08 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.12 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $1.02 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
||
