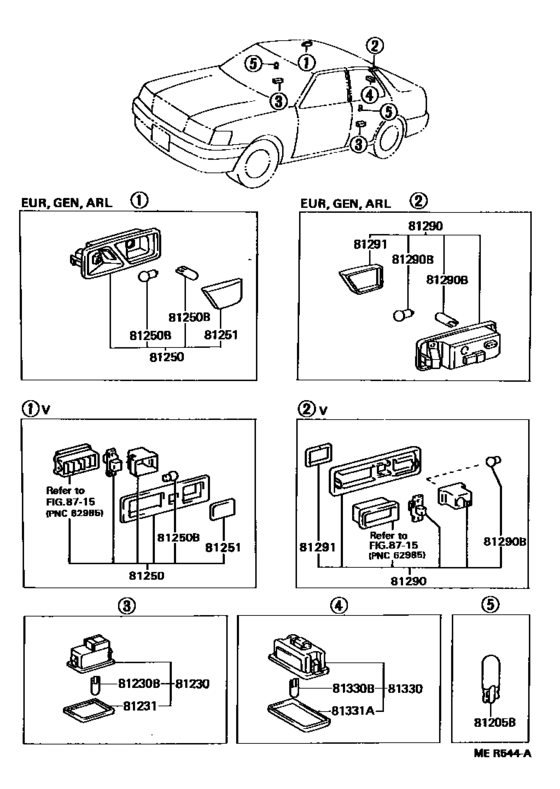

Interior Lamp ([12.1989 - ] (8912- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81205B
|
81205B
90981-11018 Bulb, Position Indicator Lamp[12.1989 - 10.1994] UCF10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
81230
|
81230
81230-30140 Lamp Assy, Courtesy[08.1992 - 10.1994] UCF10..ARL,GEN,V |
81230-30140 |
from US $15.46 |
||
|
81230
|
81230
81230-50010 Lamp Assy, Courtesy[12.1989 - 08.1992] UCF10..ARL,GEN,V |
81230-50010 |
US $21.55 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[12.1989 - 10.1994] UCF10 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50010 Lens, Courtesy Lamp[12.1989 - 10.1994] UCF10..ARL,GEN,V |
81231-50010 |
from US $6.40 |
||
|
81250
|
81250
81250-50020-02 Lamp Assy, Room, No.2ROOM, NO.2 [12.1989 - 08.1991] UCF10..V RED,TRIM3# |
81250-50020-02 |
US $62.32 |
||
|
81250
|
81250
81250-50020-03 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V SHADOW GRAY,TRIM1# |
81250-50020-03 |
US $62.32 |
||
|
81250
|
81250
81250-50020-04 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V DARK BLUE,TRIM8# |
81250-50020-04 |
US $62.32 |
||
|
81250
|
81250
81250-50020-05 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V GREIGE,TRIM0# |
81250-50020-05 |
US $62.32 |
||
|
81250
|
81250
81250-50020-06 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V DARK ROSE,TRIM4# |
81250-50020-06 |
US $62.32 |
||
|
81250
|
81250
81250-50030-02 Lamp Assy, Room, No.2ROOM, NO.2 [12.1989 - 08.1991] UCF10..V W(MOON ROOF),RED,TRIM3# |
81250-50030-02 |
US $62.32 |
||
|
81250
|
81250
81250-50030-03 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V W(MOON ROOF),SHADOW GRAY,TRIM1# |
81250-50030-03 |
US $62.32 |
||
|
81250
|
81250
81250-50030-04 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V W(MOON ROOF),DARK BLUE,TRIM8# |
81250-50030-04 |
US $62.32 |
||
|
81250
|
81250
81250-50030-05 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V W(MOON ROOF),GREIGE,TRIM0# |
81250-50030-05 |
US $62.32 |
||
|
81250
|
81250
81250-50030-06 Lamp Assy, Room, No.2[12.1989 - 08.1992] UCF10..V W(MOON ROOF),DARK ROSE,TRIM4# |
81250-50030-06 |
US $62.32 |
||
|
81250
|
81250
81250-50050-B0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V SHADOW GRAY,TRIM1# |
81250-50050-B0 |
US $62.32 |
||
|
81250
|
81250
81250-50050-E0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V OAK,TRIM0# |
81250-50050-E0 |
US $62.32 |
||
| replacement | |||||
|
81250
|
81250
81250-50050-B0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V OAK,TRIM0# |
81250-50050-B0 |
US $62.32 |
||
|
81250
|
81250
81250-50050-J0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V DK.BLUE,TRIM8# |
81250-50050-J0 |
US $62.32 |
||
|
81250
|
81250
81250-50050-K0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
81250-50050-K0 |
US $62.32 |
||
| replacement | |||||
|
81250
|
81250
81250-50050-B0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
81250-50050-B0 |
US $62.32 |
||
|
81250
|
81250
81250-50060-B0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V W(MOON ROOF),SHADOW GRAY,TRIM1# |
81250-50060-B0 |
US $62.32 |
||
|
81250
|
81250
81250-50060-E0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V W(MOON ROOF),OAK,TRIM0# |
81250-50060-E0 |
US $62.32 |
||
|
81250
|
81250
81250-50060-J0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V W(MOON ROOF),DK.BLUE,TRIM8# |
81250-50060-J0 |
US $62.32 |
||
|
81250
|
81250
81250-50060-K0 Lamp Assy, Room, No.2[08.1992 - 10.1994] UCF10..V W(MOON ROOF),TAUPE,TRIM9# |
81250-50060-K0 |
US $62.32 |
||
|
81250B
|
81250B
90981-12014 Bulb, Room Lamp, No.1[12.1989 - 10.1994] UCF10..V 12V 10W |
90981-12014 |
from US $2.72 |
||
|
81251
|
81251
81251-50020 Lens, Room Lamp, No.2[12.1989 - 10.1994] UCF10..V |
81251-50020 |
US $5.53 |
||
|
81251
|
81251
81251-50060 Lens, Room Lamp, No.2[12.1989 - 10.1994] UCF10..V W(MOON ROOF) |
81251-50060 |
US $5.53 |
||
|
81290
|
81290
81290-50020-02 Lamp Assy, Room, No.3ROOM, NO.3 [12.1989 - 08.1991] UCF10..V RED,TRIM3# |
81290-50020-02 |
US $62.32 |
||
|
81290
|
81290
81290-50020-03 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V SHADOW GRAY,TRIM1# |
81290-50020-03 |
US $62.32 |
||
|
81290
|
81290
81290-50020-04 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V DARK BLUE,TRIM8# |
81290-50020-04 |
US $62.32 |
||
|
81290
|
81290
81290-50020-05 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V GREIGE,TRIM0# |
81290-50020-05 |
US $62.32 |
||
|
81290
|
81290
81290-50020-06 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V DARK ROSE,TRIM4# |
81290-50020-06 |
US $62.32 |
||
|
81290
|
81290
81290-50030-02 Lamp Assy, Room, No.3ROOM, NO.3 [12.1989 - 08.1991] UCF10..V W(MOON ROOF),RED,TRIM3# |
81290-50030-02 |
US $62.32 |
||
|
81290
|
81290
81290-50030-03 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V W(MOON ROOF),SHADOW GRAY,TRIM1# |
81290-50030-03 |
US $62.32 |
||
|
81290
|
81290
81290-50030-04 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V W(MOON ROOF),DARK BLUE,TRIM8# |
81290-50030-04 |
US $62.32 |
||
|
81290
|
81290
81290-50030-05 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V W(MOON ROOF),GREIGE,TRIM0# |
81290-50030-05 |
US $62.32 |
||
|
81290
|
81290
81290-50030-06 Lamp Assy, Room, No.3[12.1989 - 08.1992] UCF10..V W(MOON ROOF),DARK ROSE,TRIM4# |
81290-50030-06 |
US $62.32 |
||
|
81290
|
81290
81290-50050-B0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V SHADOW GRAY,TRIM1# |
81290-50050-B0 |
US $62.32 |
||
|
81290
|
81290
81290-50050-E0 Lamp Assy, Room, No.3[08.1992 - 08.1993] UCF10..V OAK,TRIM0#,1# |
81290-50050-E0 |
US $62.32 |
||
|
81290
|
81290
81290-50050-J0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V BK.BLUE,TRIM8# |
81290-50050-J0 |
US $62.32 |
||
|
81290
|
81290
81290-50050-K0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V TAUPE,TRIM9# |
81290-50050-K0 |
US $62.32 |
||
|
81290
|
81290
81290-50060-B0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V W(MOON ROOF),SHADOW GRAY,TRIM1# |
81290-50060-B0 |
US $62.32 |
||
|
81290
|
81290
81290-50060-E0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V W(MOON ROOF),OAK,TRIM0# |
81290-50060-E0 |
US $62.32 |
||
|
81290
|
81290
81290-50060-J0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V W(MOON ROOF),DK.BLUE,TRIM8# |
81290-50060-J0 |
US $62.32 |
||
|
81290
|
81290
81290-50060-K0 Lamp Assy, Room, No.3[08.1992 - 10.1994] UCF10..V W(MOON ROOF),TAUPE,TRIM9# |
81290-50060-K0 |
US $62.32 |
||
|
81290B
|
81290B
90981-12014 Bulb, Room Lamp, No.1[12.1989 - 10.1994] UCF10..V 12V 10W |
90981-12014 |
from US $2.72 |
||
|
81291
|
81291
81291-50020 Lens, Room Lamp, No.3(For Rear)[12.1989 - 10.1994] UCF10..V |
81291-50020 |
US $5.53 |
||
|
81291
|
81291
81291-50060 Lens, Room Lamp, No.3(For Rear)[12.1989 - 10.1994] UCF10..V W(MOON ROOF) |
81291-50060 |
US $5.53 |
||
|
81330
|
81330
81330-50010
Lamp Assy, Luggage Compartment, No.1
[12.1989 - 10.1994] UCF10 |
81330-50010 |
— | ||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[12.1989 - 10.1994] UCF10 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81331A
|
81331A
81331-50010 Lens, Luggage Compartment Lamp[12.1989 - 10.1994] UCF10 |
81331-50010 |
US $8.48 |
||
