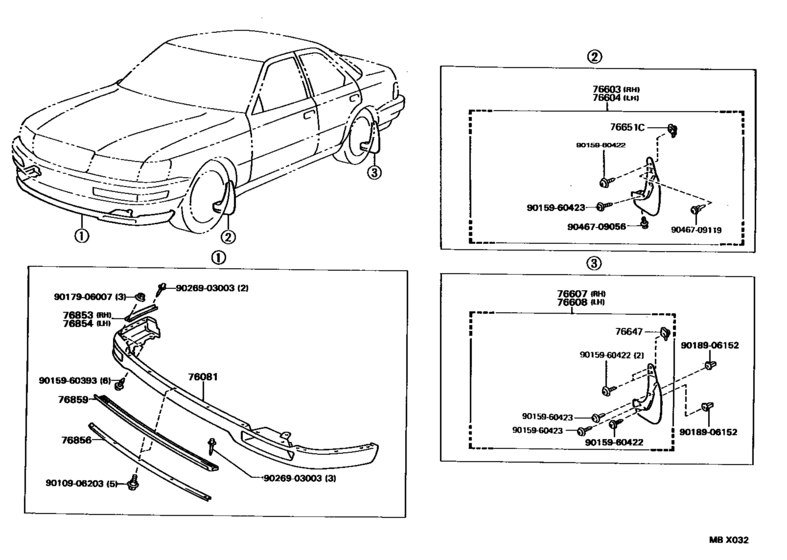

Mudguard & Spoiler ([08.1992 - ] (9208- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76081
|
76081
76081-50020
Spoiler Sub-Assy, Front
[12.1989 - 08.1992] UCF10 |
76081-50020 |
— | ||
|
76081
|
76081
76081-50904 Spoiler Sub-Assy, FrontFRONT [08.1992 - 10.1994] UCF10..ARL,EUR,V |
76081-50904 |
US $725.09 |
||
|
76603
|
76603
76621-59015
Mudguard Sub-Assy, Front Fender, Rh
[12.1989 - 08.1992] UCF10 |
76621-59015 |
— | ||
|
76603
|
76603
76621-59025
Mudguard Sub-Assy, Front Fender, Rh
[08.1992 - 10.1994] UCF10 |
76621-59025 |
— | ||
|
76604
|
76604
76622-59015
Mudguard Sub-Assy, Front Fender, Lh
[12.1989 - 08.1992] UCF10 |
76622-59015 |
— | ||
|
76604
|
76604
76622-59025
Mudguard Sub-Assy, Front Fender, Lh
[08.1992 - 10.1994] UCF10 |
76622-59025 |
— | ||
|
76607
|
76607
76625-59015
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[12.1989 - 08.1992] UCF10 |
76625-59015 |
— | ||
|
76607
|
76607
76625-59025
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1992 - 10.1994] UCF10 |
76625-59025 |
— | ||
|
76608
|
76608
76626-59015
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[12.1989 - 08.1992] UCF10 |
76626-59015 |
— | ||
|
76608
|
76608
76626-59025
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1992 - 10.1994] UCF10 |
76626-59025 |
— | ||
|
76647
|
76647
76647-50010 Retainer, Quarter Panel Rear Mudguard[12.1989 - 08.1992] UCF10 |
76647-50010 |
US $4.22 |
||
|
76647
|
76647
76647-50020 Retainer, Quarter Panel Rear Mudguard[08.1992 - 10.1994] UCF10 |
76647-50020 |
US $4.22 |
||
|
76651C
|
76651C
76651-50010 Retainer, Front Mudguard[12.1989 - 08.1992] UCF10 |
76651-50010 |
US $4.22 |
||
|
76651C
|
76651C
76651-50020 Retainer, Front Mudguard[08.1992 - 10.1994] UCF10 |
76651-50020 |
US $4.22 |
||
|
76853
|
76853
76853-50010 Retainer, Front Spoiler, Upper Rh[12.1989 - 10.1994] UCF10..GEN,V |
76853-50010 |
US $15 |
||
|
76853
|
76853
76853-50020 Retainer, Front Spoiler, Upper Rh[12.1989 - 08.1992] UCF10..GEN,V W(FRONT SPOILER) |
76853-50020 |
US $15 |
||
|
76854
|
76854
76854-50010 Retainer, Front Spoiler, Upper Lh[12.1989 - 10.1994] UCF10..GEN,V |
76854-50010 |
US $15 |
||
|
76854
|
76854
76854-50020 Retainer, Front Spoiler, Upper Lh[12.1989 - 08.1992] UCF10..GEN,V W(FRONT SPOILER) |
76854-50020 |
US $15 |
||
|
76856
|
76856
76856-50010 Retainer, Front Spoiler, Lower No.2 CenterFRONT SPOILER, LOWER NO.2 CENTER [12.1989 - 08.1992] UCF10 |
76856-50010 |
US $29.27 |
||
|
76859
|
76859
76859-50010 Retainer, Front Spoiler, Upper No.3FRONT SPOILER, UPPER NO.3 [12.1989 - 08.1992] UCF10 |
76859-50010 |
US $30.87 |
||
|
9010906203
|
9010906203
90109-06203
Retainer, Headlamp
|
90109-06203 |
— | ||
| replacement | |||||
|
9010906203
|
9010906203
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.92 |
||
|
9015960393
|
9015960393
90159-60393 SCREW |
90159-60393 |
from US $0.80 |
||
|
9015960422
|
9015960422
90159-60422 SCREW WWASHER |
90159-60422 |
from US $0.80 |
||
|
9015960423
|
9015960423
90159-60423 SCREW WWASHER |
90159-60423 |
US $1.75 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9018906152
|
9018906152
90189-06152 New Genuine Part |
90189-06152 |
US $1.89 |
||
|
9026903003
|
9026903003
90269-03003 New Genuine Part |
90269-03003 |
from US $1.12 |
||
|
9046709056
|
9046709056
90467-09056 New Genuine Part |
90467-09056 |
US $3.52 |
||
|
9046709119
|
9046709119
90467-09119
Moulding, Side Panel, No.1 Rh
|
90467-09119 |
— | ||
