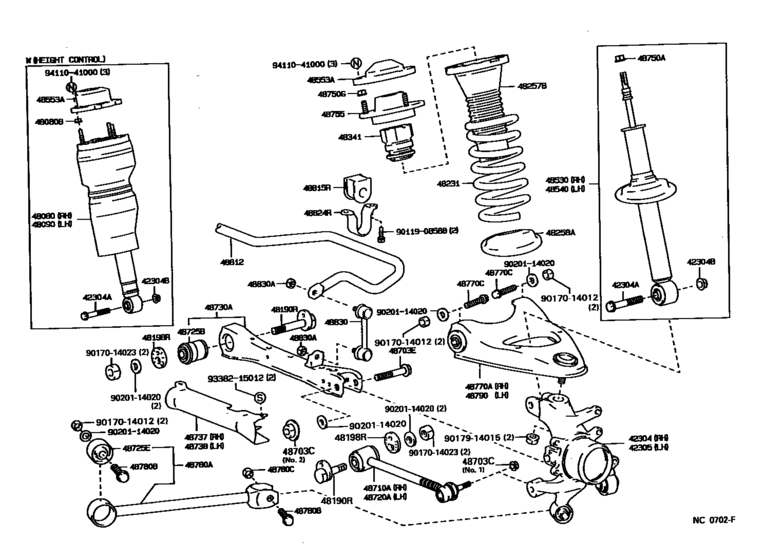

Rear Spring & Shock Absorber ([12.1989 - ] (8912- )) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- V
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-50010
Carrier Sub-Assy, Rear Axle, Rh
[08.1992 - 10.1994] UCF10 |
42304-50010 |
— | ||
|
42304
|
42304
42304-50030
Carrier Sub-Assy, Rear Axle, Rh
[12.1989 - 08.1992] UCF10 |
42304-50030 |
— | ||
|
42304A
|
42304A
90119-14025 Bolt (For Rear Axle Carrier)[12.1989 - 10.1994] UCF10 |
90119-14025 |
from US $5.28 |
||
|
42304B
|
42304B
90179-14037 Nut (For Rear Axle Carrier)[12.1989 - 10.1994] UCF10 |
90179-14037 |
US $2.80 |
||
|
42305
|
42305
42305-50010
Carrier Sub-Assy, Rear Axle, Lh
[08.1992 - 10.1994] UCF10 |
42305-50010 |
— | ||
|
42305
|
42305
42305-50030 Carrier Sub-Assy, Rear Axle, LhREAR AXLE, LH [12.1989 - 08.1992] UCF10 |
42305-50030 |
US $310.48 |
||
|
48190R
|
48190R
48190-50011
Cam Assy, Camber Adjust
[12.1989 - 10.1994] UCF10 |
48190-50011 |
— | ||
|
48198R
|
48198R
48198-50011 Cam, Rear Suspension Camber Adjust, No.2[12.1989 - 10.1994] UCF10 |
48198-50011 |
from US $5.73 |
||
|
48231
|
48231
48231-50020
Spring, Coil, Rear
[12.1989 - 08.1992] UCF10..GEN,V ROUGH ROAD PACKAGE(HEIGHT UP) |
48231-50020 |
— | ||
|
48231
|
48231
48231-50040
Spring, Coil, Rear
[12.1989 - 08.1992] UCF10 |
48231-50040 |
— | ||
|
48231
|
48231
48231-50060 Spring, Coil, RearCOIL, REAR [08.1992 - 10.1994] UCF10 |
48231-50060 |
US $116.48 |
||
| replacement | |||||
|
48231
|
48231
48231-50070
Spring, Coil, Rear
[08.1992 - 10.1994] UCF10 |
48231-50070 |
— | ||
|
48231
|
48231
48231-50080
Spring, Coil, Rear
[08.1992 - 10.1994] UCF10..ARL SINGAPORE SPEC; UCF10..RHD..EUR IRELAND SPEC; UCF10..GEN,V ROUGH ROAD PACKAGE(HEIGHT UP) |
48231-50080 |
— | ||
|
48257B
|
48257B
48257-50010 Insulator, Rear Coil Spring, Upper[12.1989 - 10.1994] UCF10 |
48257-50010 |
from US $28.65 |
||
|
48258A
|
48258A
48258-50010
Insulator, Rear Coil Spring, Lower
[12.1989 - 10.1994] UCF10 |
48258-50010 |
— | ||
|
48341
|
48341
48341-50010
Bumper, Rear Spring
[12.1989 - 10.1994] UCF10 |
48341-50010 |
— | ||
|
48530
|
48530
48530-59035
Absorber Assy, Shock, Rear Rh
[12.1989 - 08.1992] UCF10 |
48530-59035 |
— | ||
| replacement | |||||
|
48530
|
48530
48530-59036 Absorber Assy, Shock, Rear Rh[12.1989 - 08.1992] UCF10 |
48530-59036 |
US $226.80 |
||
|
48530
|
48530
48530-59065 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [08.1992 - 10.1994] UCF10..LHD; UCF10..RHD..EUR IRELAND SPEC |
48530-59065 |
US $115.02 |
||
| replacement | |||||
|
48530
|
48530
48530-59066
Absorber Assy, Shock, Rear Rh
[08.1992 - 10.1994] UCF10..LHD; UCF10..RHD..EUR IRELAND SPEC |
48530-59066 |
— | ||
|
48540
|
48540
48530-59035
Absorber Assy, Shock, Rear Rh
[12.1989 - 08.1992] UCF10 |
48530-59035 |
— | ||
| replacement | |||||
|
48540
|
48540
48530-59036 Absorber Assy, Shock, Rear Rh[12.1989 - 08.1992] UCF10 |
48530-59036 |
US $226.80 |
||
|
48540
|
48540
48530-59065 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [08.1992 - 10.1994] UCF10..LHD; UCF10..RHD..EUR IRELAND SPEC |
48530-59065 |
US $115.02 |
||
| replacement | |||||
|
48540
|
48540
48530-59066
Absorber Assy, Shock, Rear Rh
[08.1992 - 10.1994] UCF10..LHD; UCF10..RHD..EUR IRELAND SPEC |
48530-59066 |
— | ||
|
48553A
|
48553A
48553-50020
Cap, Shock Absorber
[12.1989 - 10.1994] UCF10 |
48553-50020 |
— | ||
|
48703C
|
48703C
90179-12027 Nut, Castle (For Front Lower Ball Joint Setting)[12.1989 - 10.1994] UCF10 NO.1(CARRIER SIDE) |
90179-12027 |
from US $1.37 |
||
|
48703C
|
48703C
90179-14045 Nut(For Front Shock Absorber Bracket Lower)[12.1989 - 08.1992] UCF10 NO.2(CARRIER SIDE) |
90179-14045 |
from US $1.50 |
||
|
48703E
|
48703E
90119-14026
Bolt(For Rear Suspension Arm)
[12.1989 - 05.1990] UCF10 *14-1.5PX70-64 |
90119-14026 |
— | ||
| replacement | |||||
|
48703E
|
48703E
90119-14035 Bolt(For Rear Suspension Arm)[12.1989 - 05.1990] UCF10 *14-1.5PX70-64 |
90119-14035 |
from US $3.37 |
||
|
48703E
|
48703E
90119-14035 Bolt(For Rear Suspension Arm)[05.1990 - 10.1994] UCF10 *14-1.5PX70-64 |
90119-14035 |
from US $3.37 |
||
|
48710A
|
48710A
48710-50010
Arm Assy, Rear Suspension, No.1 Rh
[12.1989 - 10.1994] UCF10 |
48710-50010 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-50020
Arm Assy, Rear Suspension, No.1 Rh
[12.1989 - 10.1994] UCF10 |
48710-50020 |
— | ||
|
48720A
|
48720A
48710-50010
Arm Assy, Rear Suspension, No.1 Rh
[12.1989 - 10.1994] UCF10 |
48710-50010 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48710-50020
Arm Assy, Rear Suspension, No.1 Rh
[12.1989 - 10.1994] UCF10 |
48710-50020 |
— | ||
|
48725B
|
48725B
48725-50030
Bush, Rear Suspension Arm, No.1
[12.1989 - 10.1994] UCF10 |
48725-50030 |
— | ||
|
48725E
|
48725E
48725-22110 Bush, Lower Control Arm[12.1989 - 10.1994] UCF10 |
48725-22110 |
US $13.60 |
||
|
48730A
|
48730A
48730-50010
Arm Assy, Rear Suspension, No.2
[12.1989 - 10.1994] UCF10 |
48730-50010 |
— | ||
|
48737
|
48737
48737-50010 Cover, Rear Suspension Arm, Rh[12.1989 - 10.1994] UCF10 |
48737-50010 |
US $17.18 |
||
|
48738
|
48738
48738-50010 Cover, Rear Suspension Arm, Lh[12.1989 - 10.1994] UCF10 |
48738-50010 |
US $17.18 |
||
|
48750A
|
48750A
94187-11200
Nut
[12.1989 - 10.1994] UCF10 |
94187-11200 |
— | ||
| replacement | |||||
|
48750A
|
48750A
90177-12002 Nut[12.1989 - 10.1994] UCF10 |
90177-12002 |
US $1.44 |
||
|
48750G
|
48750G
90179-10088 Nut[12.1989 - 10.1994] UCF10 |
90179-10088 |
from US $1.13 |
||
|
48755
|
48755
48755-50020 Support, Rear SuspensionREAR SUSPENSION [12.1989 - 08.1992] UCF10 |
48755-50020 |
US $97.55 |
||
| replacement | |||||
|
48755
|
48755
48755-50040
Support, Rear Suspension
[12.1989 - 08.1992] UCF10 |
48755-50040 |
— | ||
|
48755
|
48755
48755-50040
Support, Rear Suspension
[08.1992 - 11.1992] UCF10 |
48755-50040 |
— | ||
|
48755
|
48755
48755-50060
Support, Rear Suspension
[11.1992 - 10.1994] UCF10 |
48755-50060 |
— | ||
|
48770A
|
48770A
48770-50010
Arm Assy, Upper Control, Rear Rh
[12.1989 - 10.1994] UCF10 |
48770-50010 |
— | ||
|
48770C
|
48770C
90105-14074 Bolt(For Rear Upper Control Arm)[12.1989 - 10.1994] UCF10 |
90105-14074 |
US $6.84 |
||
|
48780A
|
48780A
48780-50010
Rod Assy, Strut, Rear
[12.1989 - 10.1994] UCF10 |
48780-50010 |
— | ||
|
48780B
|
48780B
90105-14065 Bolt(For Strut Rod)[12.1989 - 10.1994] UCF10 BODY SIDE |
90105-14065 |
US $5.12 |
||
|
48780B
|
48780B
90119-14026
Bolt(For Rear Suspension Arm)
[12.1989 - 05.1990] UCF10 CARRIER SIDE |
90119-14026 |
— | ||
| replacement | |||||
|
48780B
|
48780B
90119-14035 Bolt(For Rear Suspension Arm)[12.1989 - 05.1990] UCF10 CARRIER SIDE |
90119-14035 |
from US $3.37 |
||
|
48780B
|
48780B
90119-14035 Bolt(For Rear Suspension Arm)[05.1990 - 10.1994] UCF10 CARRIER SIDE |
90119-14035 |
from US $3.37 |
||
|
48780C
|
48780C
90179-14045 Nut(For Front Shock Absorber Bracket Lower)[12.1989 - 08.1992] UCF10 |
90179-14045 |
from US $1.50 |
||
|
48790
|
48790
48790-50010
Arm Assy, Upper Control, Rear Lh
[12.1989 - 10.1994] UCF10 |
48790-50010 |
— | ||
|
48812
|
48812
48812-50020 Bar, Stabilizer, Rear[12.1989 - 08.1992] UCF10 |
48812-50020 |
US $119.39 |
||
|
48812
|
48812
48812-50040
Bar, Stabilizer, Rear
[08.1992 - 10.1994] UCF10 |
48812-50040 |
— | ||
|
48815R
|
48815R
48815-50050
Bush, Stabilizer(For Rear)
[12.1989 - 08.1992] UCF10 |
48815-50050 |
— | ||
|
48815R
|
48815R
48815-50080 Bush, Stabilizer(For Rear)[08.1992 - 10.1994] UCF10 |
48815-50080 |
US $31.94 |
||
|
48824R
|
48824R
48824-50010
Bracket, Stabilizer(For Rear)
[12.1989 - 10.1994] UCF10 |
48824-50010 |
— | ||
|
48830
|
48830
48830-50010 Link Assy, Rear Stabilizer[12.1989 - 04.1990] UCF10 |
48830-50010 |
US $66.54 |
||
| replacement | |||||
|
48830
|
48830
48830-50020 Link Assy, Rear Stabilizer[12.1989 - 04.1990] UCF10 |
48830-50020 |
from US $65.96 |
||
|
48830
|
48830
48830-50020 Link Assy, Rear Stabilizer[04.1990 - 10.1994] UCF10 |
48830-50020 |
from US $65.96 |
||
|
48830A
|
48830A
90179-10054 Nut, No.1 (For Center Support Bearing)[12.1989 - 10.1994] UCF10 |
90179-10054 |
from US $0.37 |
||
|
9011908588
|
9011908588
90119-08588 New Genuine Part |
90119-08588 |
US $2.24 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017014023
|
9017014023
90170-14023
New Genuine Part
|
90170-14023 |
— | ||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.93 |
||
|
9020114020
|
9020114020
90201-14020 WASHER |
90201-14020 |
from US $1.05 |
||
|
9338215012
|
9338215012
93382-15012 New Genuine Part |
93382-15012 |
US $1.12 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
