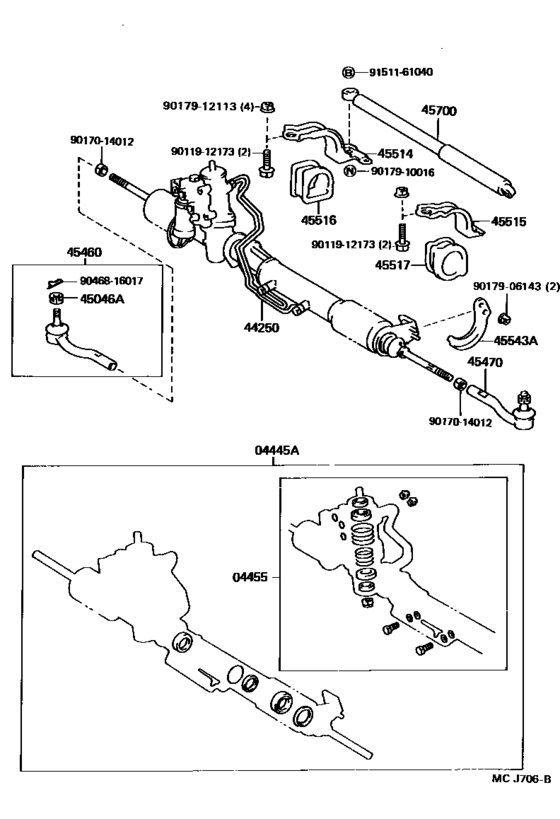

Front Steering Gear & Link ([12.1989 - ] (8912- )RHD) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- GEN
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-50010 Gasket Kit, Power Steering Gear(For Rack & Pinion)[12.1989 - 08.1992] UCF10 |
04445-50010 |
US $82.99 |
||
| replacement | |||||
|
04445A
|
04445A
04445-50012
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[12.1989 - 08.1992] UCF10 |
04445-50012 |
— | ||
|
04445A
|
04445A
04445-50011 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1992 - 07.1993] UCF10 |
04445-50011 |
US $82.99 |
||
| replacement | |||||
|
04445A
|
04445A
04445-50013 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1992 - 07.1993] UCF10 |
04445-50013 |
US $82.99 |
||
|
04445A
|
04445A
04445-50013 Gasket Kit, Power Steering Gear(For Rack & Pinion)[07.1993 - 10.1994] UCF10 |
04445-50013 |
US $82.99 |
||
|
04455
|
04455
04455-50010 Gasket Kit, Power Steering Control Valve OverholePOWER STEERING CONTROL VALVE OVERHOLE [12.1989 - 07.1993] UCF10 |
04455-50010 |
US $41.64 |
||
| replacement | |||||
|
04455
|
04455
04455-50011 Gasket Kit, Power Steering Control Valve OverholePOWER STEERING CONTROL VALVE OVERHOLE [12.1989 - 07.1993] UCF10 |
04455-50011 |
US $41.64 |
||
|
04455
|
04455
04455-50011 Gasket Kit, Power Steering Control Valve OverholePOWER STEERING CONTROL VALVE OVERHOLE [07.1993 - 10.1994] UCF10 |
04455-50011 |
US $41.64 |
||
|
44250
|
44250
44250-50030 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [12.1989 - 03.1990] UCF10..RHD |
44250-50030 |
US $1,834.56 |
||
| replacement | |||||
|
44250
|
44250
44250-50031 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [12.1989 - 03.1990] UCF10..RHD |
44250-50031 |
US $1,805.44 |
||
|
44250
|
44250
44250-50031 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [03.1990 - 08.1992] UCF10..RHD |
44250-50031 |
US $1,805.44 |
||
|
44250
|
44250
44250-50070 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [08.1992 - 10.1994] UCF10..RHD |
44250-50070 |
US $1,805.44 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[12.1989 - 10.1994] UCF10 |
90171-12002 |
from US $1.19 |
||
|
45460
|
45460
45460-59015 Rod Assy, Tie, Rh[12.1989 - 10.1994] UCF10 |
45460-59015 |
from US $75.48 |
||
|
45470
|
45470
45470-59015 Rod Assy, Tie, Lh[12.1989 - 10.1994] UCF10 |
45470-59015 |
from US $75.48 |
||
|
45514
|
45514
45514-50020 Bracket, Steering Rack Housing, No.1[12.1989 - 10.1994] UCF10..RHD |
45514-50020 |
US $18.93 |
||
|
45515
|
45515
45515-50010 Bracket, Steering Rack Housing, No.2[12.1989 - 10.1994] UCF10 |
45515-50010 |
US $16.07 |
||
|
45516
|
45516
45516-50010
Grommet, Steering Rack Housing, No.1
[12.1989 - 02.1992] UCF10 |
45516-50010 |
— | ||
| replacement | |||||
|
45516
|
45516
45516-50011 Grommet, Steering Rack Housing, No.1[12.1989 - 02.1992] UCF10 |
45516-50011 |
US $36.43 |
||
|
45516
|
45516
45516-50011 Grommet, Steering Rack Housing, No.1[02.1992 - 10.1994] UCF10 |
45516-50011 |
US $36.43 |
||
|
45517
|
45517
45517-50010 Grommet, Steering Rack Housing, No.2[12.1989 - 10.1994] UCF10 |
45517-50010 |
US $34.52 |
||
|
45543A
|
45543A
45543-50020 Protector, Steering Rack Boot, Rh[12.1989 - 10.1994] UCF10..RHD |
45543-50020 |
US $7.72 |
||
|
45700
|
45700
45700-50010
Damper Assy, Steering
[12.1989 - 04.1992] UCF10 |
45700-50010 |
— | ||
| replacement | |||||
|
45700
|
45700
45700-50011
Damper Assy, Steering
[12.1989 - 04.1992] UCF10 |
45700-50011 |
— | ||
|
45700
|
45700
45700-50011
Damper Assy, Steering
[04.1992 - 10.1994] UCF10 |
45700-50011 |
— | ||
|
9011912173
|
9011912173
90119-12173 New Genuine Part |
90119-12173 |
US $7.72 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9017912113
|
9017912113
90179-12113 New Genuine Part |
90179-12113 |
US $2.48 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
