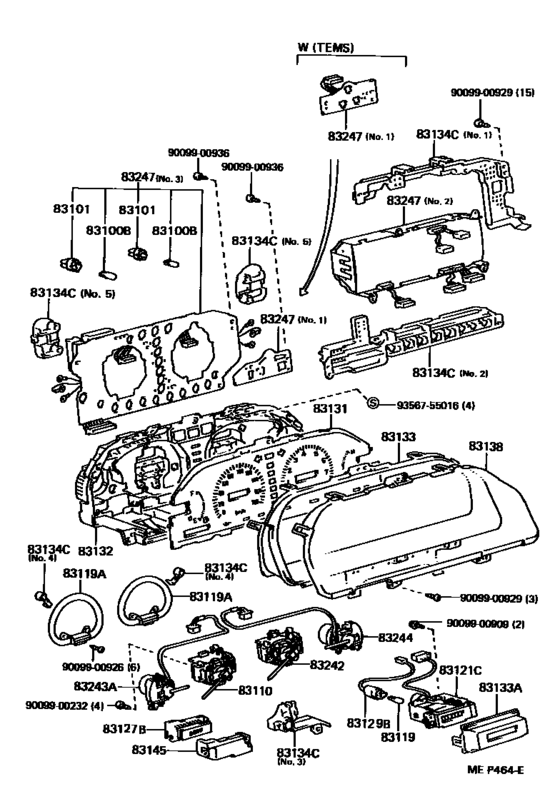

Meter ([12.1989 - 08.1992] (8912-9208)RHD) Diagram Toyota LEXUS LS
- Year
- 1989 - 1994
- Sales region
- General
- Frame
- UCF10
- body
- SED
- ENGINE
- 1UZFE
- DESTINATION
- GEN
- Model
- LS400
- From
- 12.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[08.1993 - 10.1994] UCF10 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[08.1992 - 10.1994] UCF10 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83119-50050
Bulb, Combination Meter, No.1
[12.1989 - 08.1992] UCF10 14V 3.0W,LONG LIFE |
83119-50050 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1992 - 08.1993] UCF10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1992 - 08.1993] UCF10 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83101
|
83101
83101-30050
Bulb, Combination Meter, No.1
[08.1993 - 10.1994] UCF10 14V 2.0W |
83101-30050 |
— | ||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[08.1992 - 10.1994] UCF10 14V 3.0W |
83101-32020 |
US $6.12 |
||
|
83110
|
83110
83110-50100 Speedometer Assy[12.1989 - 08.1992] UCF10..GEN |
83110-50100 |
US $429.52 |
||
|
83110
|
83110
83110-50340
Speedometer Assy
[08.1992 - 10.1994] UCF10..GEN; UCF10..ARL SINGAPORE SPEC; UCF10..RHD..EUR SOUTH AFRICA SPEC |
83110-50340 |
— | ||
|
83119
|
83119
83119-50030
Bulb, Combination Meter, No.3
[12.1989 - 08.1992] UCF10 14V 3.0W,W(CAP) |
83119-50030 |
— | ||
|
83119A
|
83119A
83119-50010 Tube,cathode[12.1989 - 08.1992] UCF10 |
83119-50010 |
US $171.81 |
||
|
83119A
|
83119A
83119-50090 Tube,cathode[08.1992 - 10.1994] UCF10 |
83119-50090 |
US $41.50 |
||
|
83121C
|
83121C
83121-50070
Odometer Assy
[12.1989 - 08.1992] UCF10..ARL,GEN |
83121-50070 |
— | ||
|
83127B
|
83127B
83127-50050
Computer Assy
[12.1989 - 08.1992] UCF10..ARL,GEN |
83127-50050 |
— | ||
|
83129B
|
83129B
83129-50030
Socket Sub-Assy, Meter Bulb
[12.1989 - 08.1992] UCF10..RHD |
83129-50030 |
— | ||
|
83131
|
83131
83131-50410
Dial, Meter, No.1
[12.1989 - 08.1992] UCF10..GEN |
83131-50410 |
— | ||
|
83131
|
83131
83131-50810
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..GEN; UCF10..ARL SINGAPORE SPEC; UCF10..RHD..EUR SOUTH AFRICA SPEC |
83131-50810 |
— | ||
| replacement | |||||
|
83131
|
83131
83131-50830
Dial, Meter, No.1
[08.1992 - 10.1994] UCF10..GEN; UCF10..ARL SINGAPORE SPEC; UCF10..RHD..EUR SOUTH AFRICA SPEC |
83131-50830 |
— | ||
|
83131
|
83131
83131-50830
Dial, Meter, No.1
[08.1993 - 10.1994] UCF10..GEN W(*TRC) |
83131-50830 |
— | ||
|
83132
|
83132
83132-50090
Case, Combination Meter
[12.1989 - 08.1992] UCF10..RHD |
83132-50090 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-50070
Case, Combination Meter
[12.1989 - 08.1992] UCF10..RHD |
83132-50070 |
— | ||
|
83132
|
83132
83132-50170
Case, Combination Meter
[08.1992 - 10.1994] UCF10..ARL,GEN; UCF10..RHD..EUR SOUTH AFRICA SPEC |
83132-50170 |
— | ||
|
83133
|
83133
83133-50070
Plate, Combination Meter, No.1
[12.1989 - 08.1992] UCF10..RHD |
83133-50070 |
— | ||
|
83133
|
83133
83133-50090
Plate, Combination Meter, No.1
[08.1992 - 10.1994] UCF10..RHD |
83133-50090 |
— | ||
|
83133A
|
83133A
83133-50050
Plate, Combination Meter, No.2
[12.1989 - 08.1992] UCF10..RHD |
83133-50050 |
— | ||
|
83134C
|
83134C
83134-50070
Cover, Speedometer
[12.1989 - 08.1992] UCF10 NO.4 |
83134-50070 |
— | ||
|
83134C
|
83134C
83134-50130
Cover, Speedometer
[12.1989 - 08.1992] UCF10..RHD NO.5 |
83134-50130 |
— | ||
|
83134C
|
83134C
83134-50150
Cover, Speedometer
[12.1989 - 08.1992] UCF10..RHD NO.1 |
83134-50150 |
— | ||
|
83134C
|
83134C
83134-50170
Cover, Speedometer
[12.1989 - 08.1992] UCF10..RHD NO.2 |
83134-50170 |
— | ||
|
83134C
|
83134C
83134-50230
Cover, Speedometer
[12.1989 - 08.1992] UCF10..RHD NO.3 |
83134-50230 |
— | ||
|
83134C
|
83134C
83134-50250
Cover, Speedometer
[08.1992 - 10.1994] UCF10..RHD NO.1 |
83134-50250 |
— | ||
|
83134C
|
83134C
83134-50290
Cover, Speedometer
[08.1992 - 10.1994] UCF10..RHD NO.2 |
83134-50290 |
— | ||
|
83134C
|
83134C
83134-50330
Cover, Speedometer
[08.1992 - 10.1994] UCF10 NO.3 |
83134-50330 |
— | ||
|
83138
|
83138
83138-50030
Glass, Speedometer
[12.1989 - 08.1992] UCF10..RHD |
83138-50030 |
— | ||
|
83138
|
83138
83138-50050
Glass, Speedometer
[08.1992 - 10.1994] UCF10..RHD |
83138-50050 |
— | ||
|
83145
|
83145
83145-50050
Lens, Meter, No.1
[12.1989 - 08.1992] UCF10..RHD |
83145-50050 |
— | ||
|
83145
|
83145
83145-50070
Lens, Meter, No.1
[08.1992 - 10.1994] UCF10..RHD |
83145-50070 |
— | ||
|
83242
|
83242
83242-50030
Tachometer Assy, Engine
[12.1989 - 08.1992] UCF10..RHD |
83242-50030 |
— | ||
|
83242
|
83242
83242-50050
Tachometer Assy, Engine
[08.1992 - 10.1994] UCF10 |
83242-50050 |
— | ||
|
83243A
|
83243A
83243-50030 Gauge Sub-Assy, Fuel Receiver[12.1989 - 08.1992] UCF10..RHD |
83243-50030 |
US $221.31 |
||
|
83243A
|
83243A
83243-50050 Gauge Sub-Assy, Fuel Receiver[08.1992 - 10.1994] UCF10..RHD |
83243-50050 |
US $186.37 |
||
|
83244
|
83244
83244-50050 Gauge Sub-Assy, Water Temperature Receiver[12.1989 - 08.1992] UCF10..RHD |
83244-50050 |
US $182 |
||
|
83244
|
83244
83244-50070 Gauge Sub-Assy, Water Temperature Receiver[08.1992 - 10.1994] UCF10..RHD |
83244-50070 |
US $180.54 |
||
|
83247
|
83247
83134-50190
Plate, Meter Circuit
[12.1989 - 08.1992] UCF10..V;UCF10..RHD NO.1 |
83134-50190 |
— | ||
|
83247
|
83247
83247-50250 Plate, Meter Circuit[12.1989 - 08.1992] UCF10..RHD NO.2 |
83247-50250 |
US $825.55 |
||
|
83247
|
83247
83247-50430 Plate, Meter CircuitMETER CIRCUIT [12.1989 - 08.1992] UCF10..RHD NO.3 |
83247-50430 |
US $605.70 |
||
|
83247
|
83247
83247-50750
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..RHD NO.3 |
83247-50750 |
— | ||
|
83247
|
83247
83247-50790 Plate, Meter Circuit[08.1992 - 10.1994] UCF10..RHD NO.5 |
83247-50790 |
US $138.32 |
||
|
83247
|
83247
83247-50810 Plate, Meter Circuit[08.1992 - 10.1994] UCF10..RHD NO.4 |
83247-50810 |
US $116.48 |
||
|
83247
|
83247
83247-50890 Plate, Meter CircuitMETER CIRCUIT [08.1992 - 10.1994] UCF10..GEN NO.1; UCF10..ARL SINGAPORE SPEC,NO.1; UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
83247-50890 |
US $1,285.65 |
||
|
83247
|
83247
83247-5A390
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..ARL,GEN NO.2; UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
83247-5A390 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-5A250
Plate, Meter Circuit
[08.1992 - 10.1994] UCF10..ARL,GEN NO.2; UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
83247-5A250 |
— | ||
|
83247
|
83247
83247-5A410
Plate, Meter Circuit
[08.1993 - 10.1994] UCF10..GEN W(*TRC),NO.2 |
83247-5A410 |
— | ||
| replacement | |||||
|
83247
|
83247
83247-5A250
Plate, Meter Circuit
[08.1993 - 10.1994] UCF10..GEN W(*TRC),NO.2 |
83247-5A250 |
— | ||
|
9009900232
|
9009900232
90099-00232
New Genuine Part
|
90099-00232 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900926
|
9009900926
90099-00926
New Genuine Part
|
90099-00926 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900936
|
9009900936
90099-00936
Ring, O(For No.3 Lever)
|
90099-00936 |
— | ||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
