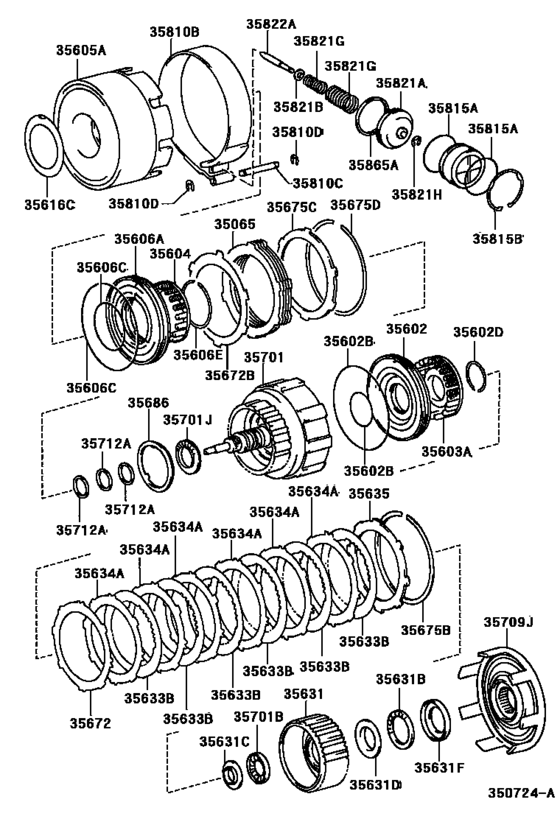

Brake Band & Multiple Disc Clutch (Atm) ([07.1997 - ] A650E (9707- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35065
|
35065
35065-30070 Drum Sub-Assy, Rear Clutch & Front Sun Gear[07.1997 - 08.2000] UCF20 |
35065-30070 |
US $339.25 |
||
| replacement | |||||
|
35065
|
35065
35065-50010 Drum Sub-Assy, Rear Clutch & Front Sun Gear[07.1997 - 08.2000] UCF20 |
35065-50010 |
from US $252.21 |
||
|
35602
|
35602
35602-30070 Piston Sub-Assy, Front Clutch[07.1997 - 08.2000] UCF20 |
35602-30070 |
US $62.75 |
||
|
35602B
|
35602B
90301-39005 Ring, O (For Forward Clutch Piston)[10.1994 - 08.2000] UCF20 INNER |
90301-39005 |
US $2.97 |
||
|
35602B
|
35602B
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[10.1994 - 08.2000] UCF20 OUTER |
90301-99058 |
US $3.20 |
||
|
35602D
|
35602D
90520-35001 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[10.1994 - 08.2000] UCF20 |
90520-35001 |
US $1.46 |
||
|
35603A
|
35603A
35603-50010 Spring Sub-Assy, Forward Clutch Return[10.1994 - 08.2000] UCF20 |
35603-50010 |
US $9.90 |
||
|
35604
|
35604
35604-30030 Spring Sub-Assy, Direct Clutch Return[07.1997 - 08.2000] UCF20 |
35604-30030 |
US $18.64 |
||
|
35605A
|
35605A
35605-30070 Drum Sub-Assy, Direct Clutch[07.1997 - 09.1999] UCF20 |
35605-30070 |
US $276.64 |
||
|
35605A
|
35605A
35605-30100 Drum Sub-Assy, Direct Clutch[09.1999 - 08.2000] UCF20 |
35605-30100 |
US $279.55 |
||
|
35606A
|
35606A
35606-22030 Piston Sub-Assy, Direct Clutch[07.1997 - 08.2000] UCF20 |
35606-22030 |
US $45.14 |
||
|
35606C
|
35606C
90301-65006 Ring, O (For Overdrive Direct Clutch Piston)[10.1994 - 08.2000] UCF20 INNER |
90301-65006 |
US $4.80 |
||
|
35606C
|
35606C
90301-99065 Ring, O (For Direct Clutch Piston)[07.1997 - 08.2000] UCF20 OUTER |
90301-99065 |
US $4.66 |
||
|
35606E
|
35606E
90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[10.1994 - 08.2000] UCF20 |
90520-58001 |
US $1.89 |
||
|
35616C
|
35616C
35616-30060 Washer, Clutch Drum Thrust (For Direct Clutch Drum)[07.1997 - 08.2000] UCF20 |
35616-30060 |
US $5.53 |
||
|
35631
|
35631
35631-30080 Hub, Clutch(For Multiple Disc Clutch)[07.1997 - 08.2000] UCF20 |
35631-30080 |
US $84.45 |
||
|
35631B
|
35631B
90374-43001
Bearing, Thrust(For Front Clutch Hub)
[07.1997 - 08.2000] UCF20 |
90374-43001 |
— | ||
|
35631C
|
35631C
35789-30250
Race, Thrust Bearing(For Front Clutch Hub Front)
[07.1997 - 08.2000] UCF20 |
35789-30250 |
— | ||
|
35631D
|
35631D
35789-30270
Race, Thrust Bearing(For Front Clutch Hub Rear)
[07.1997 - 08.2000] UCF20 |
35789-30270 |
— | ||
|
35631F
|
35631F
35789-30280
Race, Thrust Bearing(For Rear Clutch Drum)
[07.1997 - 08.2000] UCF20 |
35789-30280 |
— | ||
|
35633B
|
35633B
35677-50020 Disc, Clutch (For Forward Multiple Disc Clutch)[07.1997 - 08.2000] UCF20 |
35677-50020 |
US $36.11 |
||
| replacement | |||||
|
35633B
|
35633B
35677-50030 Disc, Clutch (For Forward Multiple Disc Clutch)[07.1997 - 08.2000] UCF20 |
35677-50030 |
from US $36.25 |
||
|
35634A
|
35634A
35634-32010 Plate, Clutch (For Forward Multiple Disc Clutch)[07.1997 - 08.2000] UCF20 T=1.8 |
35634-32010 |
US $16.77 |
||
|
35634A
|
35634A
35634-33020 Plate, Clutch (For Forward Multiple Disc Clutch)[07.1997 - 08.2000] UCF20 T=1.4 |
35634-33020 |
US $17.18 |
||
|
35635
|
35635
35635-30040 Flange, Forward Clutch[09.1999 - 08.2000] UCF20 T=4.0,MARK 95 |
35635-30040 |
US $26.38 |
||
|
35635
|
35635
35635-30050 Flange, Forward Clutch[09.1999 - 08.2000] UCF20 T=3.8,MARK 94 |
35635-30050 |
US $27.08 |
||
|
35635
|
35635
35635-30060 Flange, Forward Clutch[09.1999 - 08.2000] UCF20 T=3.6,MARK 93 |
35635-30060 |
US $31.45 |
||
|
35635
|
35635
35635-30070 Flange, Forward Clutch[09.1999 - 08.2000] UCF20 T=3.4,MARK 92 |
35635-30070 |
US $27.08 |
||
|
35635
|
35635
35635-30080 Flange, Forward Clutch[09.1999 - 08.2000] UCF20 T=3.2,MARK 91 |
35635-30080 |
US $27.08 |
||
|
35635
|
35635
35635-50010 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=4.00,MARK 42 |
35635-50010 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30040 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=4.00,MARK 42 |
35635-30040 |
US $26.38 |
||
|
35635
|
35635
35635-50020 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.80,MARK 44 |
35635-50020 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30050 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.80,MARK 44 |
35635-30050 |
US $27.08 |
||
|
35635
|
35635
35635-50030 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.60,MARK 62 |
35635-50030 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30060 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.60,MARK 62 |
35635-30060 |
US $31.45 |
||
|
35635
|
35635
35635-50040 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.40,MARK 45 |
35635-50040 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30070 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.40,MARK 45 |
35635-30070 |
US $27.08 |
||
|
35635
|
35635
35635-50050 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.20,MARK 60 |
35635-50050 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30080 Flange, Forward Clutch[10.1994 - 09.1999] UCF20 T=3.20,MARK 60 |
35635-30080 |
US $27.08 |
||
|
35635
|
35635
35635-50060 Flange, Forward Clutch[10.1994 - 08.2000] UCF20 T=3.00,MARK 61 |
35635-50060 |
US $43.10 |
||
| replacement | |||||
|
35635
|
35635
35635-30090 Flange, Transfer Direct Clutch[10.1994 - 08.2000] UCF20 T=3.00,MARK 61 |
35635-30090 |
US $27.08 |
||
|
35672
|
35672
35672-22010 Plate, Clutch Cushion[07.1997 - 08.2000] UCF20 |
35672-22010 |
US $16.45 |
||
|
35672B
|
35672B
35672-50020 Plate, Clutch Cushion, No.2[07.1997 - 08.2000] UCF20 |
35672-50020 |
US $28.68 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[10.1994 - 08.2000] UCF20 |
90521-99001 |
US $4.72 |
||
|
35675C
|
35675C
35675-22030 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.3,MARK 33 |
35675-22030 |
US $78.62 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30240 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.3,MARK 33 |
35675-30240 |
US $48.78 |
||
|
35675C
|
35675C
35675-22040 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.4,MARK 34 |
35675-22040 |
US $78.62 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30250 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.4,MARK 34 |
35675-30250 |
US $49.36 |
||
|
35675C
|
35675C
35675-22050 Flange, Direct Clutch[07.1997 - 08.1998] UCF20 T=3.5,MARK 35 |
35675-22050 |
US $80.08 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30210 Flange, Direct Clutch[07.1997 - 08.1998] UCF20 T=3.5,MARK 35 |
35675-30210 |
US $56.09 |
||
|
35675C
|
35675C
35675-22060 Flange, Direct Clutch[07.1997 - 08.1998] UCF20 T=3.6,MARK 36 |
35675-22060 |
US $81.54 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30220 Flange, Direct Clutch[07.1997 - 08.1998] UCF20 T=3.6,MARK 36 |
35675-30220 |
US $50.52 |
||
|
35675C
|
35675C
35675-22070 Flange, Direct Clutch[07.1997 - 08.1998] UCF20 T=3.7,MARK 37 |
35675-22070 |
US $81.54 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30230 Flange, Direct Clutch[07.1997 - 08.1998] UCF20 T=3.7,MARK 37 |
35675-30230 |
US $50.81 |
||
|
35675C
|
35675C
35675-22080 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.8,MARK 38 |
35675-22080 |
US $81.54 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30260 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.8,MARK 38 |
35675-30260 |
US $51.40 |
||
|
35675C
|
35675C
35675-22090 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=3.9,MARK 39 |
35675-22090 |
US $82.99 |
||
|
35675C
|
35675C
35675-22100 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=4.0,MARK 40 |
35675-22100 |
US $84.45 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30270 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=4.0,MARK 40 |
35675-30270 |
US $52.71 |
||
|
35675C
|
35675C
35675-30180 Flange, Direct Clutch[07.1997 - 08.2000] UCF20 T=4.1 |
35675-30180 |
US $78.62 |
||
|
35675C
|
35675C
35675-30190 Flange, Direct Clutch[09.1999 - 08.2000] UCF20 T=4.2 |
35675-30190 |
US $85.90 |
||
| replacement | |||||
|
35675C
|
35675C
35675-30280 Flange, Direct Clutch[09.1999 - 08.2000] UCF20 T=4.2 |
35675-30280 |
US $53.87 |
||
|
35675C
|
35675C
35675-30210 Flange, Direct Clutch[08.1998 - 08.2000] UCF20 T=3.5,MARK 55 |
35675-30210 |
US $56.09 |
||
|
35675C
|
35675C
35675-30220 Flange, Direct Clutch[08.1998 - 08.2000] UCF20 T=3.6,MARK 56 |
35675-30220 |
US $50.52 |
||
|
35675C
|
35675C
35675-30230 Flange, Direct Clutch[08.1998 - 08.2000] UCF20 T=3.7,MARK 57 |
35675-30230 |
US $50.81 |
||
|
35675C
|
35675C
35675-30240 Flange, Direct Clutch[05.2000 - 08.2000] UCF20 T=3.3,MARK 53 |
35675-30240 |
US $48.78 |
||
|
35675C
|
35675C
35675-30250 Flange, Direct Clutch[05.2000 - 08.2000] UCF20 T=3.4,MARK 54 |
35675-30250 |
US $49.36 |
||
|
35675C
|
35675C
35675-30260 Flange, Direct Clutch[05.2000 - 08.2000] UCF20 T=3.8,MARK 58 |
35675-30260 |
US $51.40 |
||
|
35675D
|
35675D
90520-99018 Ring, Hole Snap (For Direct Clutch Flange)[07.1997 - 08.2000] UCF20 |
90520-99018 |
US $3.20 |
||
|
35686
|
35686
35686-30010 Washer, Clutch Drum Thrust (For Input Shaft)[10.1994 - 08.2000] UCF20 |
35686-30010 |
US $3.79 |
||
|
35701
|
35701
35701-30100 Shaft Sub-Assy, Input[07.1997 - 08.2000] UCF20 |
35701-30100 |
US $315.95 |
||
|
35701B
|
35701B
90374-27010
Bearing, Thrust Needle Roller (For Input Shaft Rear)
[07.1997 - 08.2000] UCF20 |
90374-27010 |
— | ||
|
35701J
|
35701J
90374-33001 Bearing, Thrust Needle Roller (For Input Shaft Front)[10.1994 - 08.2000] UCF20 |
90374-33001 |
US $15.87 |
||
|
35709J
|
35709J
35709-30070 Drum Sub-Assy, Sun Gear Input[07.1997 - 08.2000] UCF20 |
35709-30070 |
US $200.93 |
||
|
35712A
|
35712A
35712-30020 Ring, Input Shaft Oil Seal[10.1994 - 08.2000] UCF20 |
35712-30020 |
US $5.59 |
||
|
35810B
|
35810B
35810-14010 Band Assy, 2Nd Coast Brake[07.1997 - 08.2000] UCF20 |
35810-14010 |
US $101.92 |
||
|
35810C
|
35810C
90249-07011 Pin (For 2Nd Coast Brake Band)[10.1994 - 08.2000] UCF20 |
90249-07011 |
US $2.80 |
||
|
35810D
|
35810D
96160-00500 Ring, E(For Over Center Lever)[10.1994 - 08.2000] UCF20 |
96160-00500 |
from US $0.84 |
||
|
35815A
|
35815A
90301-48001 Ring, O (For 2Nd Coast Brake Cover)[10.1994 - 08.2000] UCF20 |
90301-48001 |
US $4.16 |
||
|
35815B
|
35815B
90521-60003 Ring, Hole Snap (For 2Nd Coast Brake Cover)[10.1994 - 08.2000] UCF20 |
90521-60003 |
from US $1.40 |
||
|
35821A
|
35821A
35821-22020 Piston, 2Nd Coast Brake[07.1997 - 08.2000] UCF20 |
35821-22020 |
US $12.41 |
||
|
35821B
|
35821B
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston)[10.1994 - 08.2000] UCF20 |
90201-06557 |
US $0.96 |
||
|
35821G
|
35821G
90501-26024 Spring, Compression (For 2Nd Coast Brake Piston)[10.1994 - 08.2000] UCF20 OUTER |
90501-26024 |
US $6.29 |
||
|
35821G
|
35821G
90501-32037 Spring, Compression (For 2Nd Coast Brake Piston)[07.1997 - 08.2000] UCF20 INNER |
90501-32037 |
US $0.96 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[10.1994 - 08.2000] UCF20 |
96160-00500 |
from US $0.84 |
||
|
35822A
|
35822A
35822-22010 Rod, 2Nd Coast Brake Piston[07.1997 - 08.2000] UCF20 L=78.4 |
35822-22010 |
US $3.35 |
||
|
35822A
|
35822A
35822-22020 Rod, 2Nd Coast Brake Piston[07.1997 - 08.2000] UCF20 L=79.9 |
35822-22020 |
US $3.35 |
||
|
35822A
|
35822A
35822-50040 Rod, 2Nd Coast Brake Piston[07.1997 - 08.2000] UCF20 L=72.15 |
35822-50040 |
US $12.52 |
||
|
35822A
|
35822A
35822-50050 Rod, 2Nd Coast Brake Piston[07.1997 - 08.2000] UCF20 L=70.65 |
35822-50050 |
US $12.52 |
||
|
35865A
|
35865A
35865-30010 Ring, 2Nd Coast Brake Piston Oil Seal[10.1994 - 08.2000] UCF20 |
35865-30010 |
US $8.39 |
||
