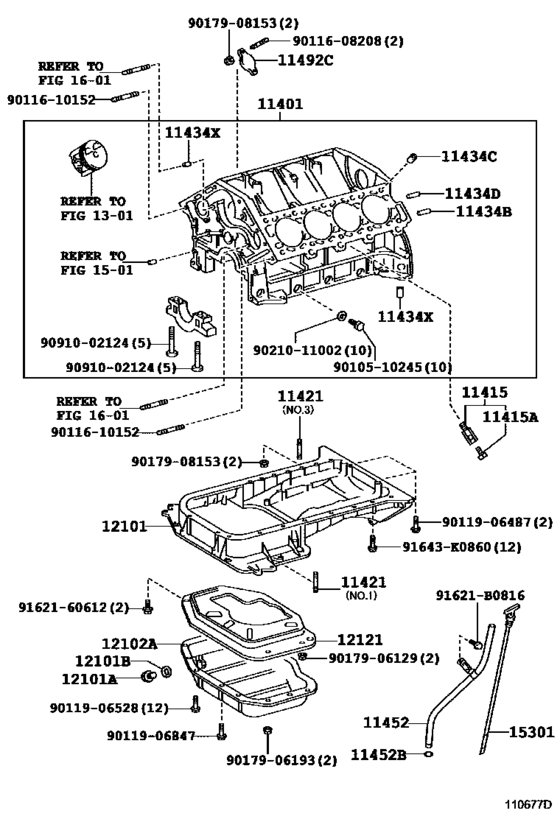

Cylinder Block ([07.1997 - ] (9707- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59655 Block Sub-Assy, Cylinder[07.1997 -] 1UZFE..UCF20 |
11401-59655 |
US $5,154.24 |
||
|
11415
|
11415
90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)[10.1994 -] 1UZFE..UCF20 |
90910-09095 |
US $8.96 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[10.1994 -] 1UZFE..UCF20 |
90910-09087 |
from US $3.33 |
||
|
11421
|
11421
90116-06098 Bolt, Stud(For Oil Pan)[07.1997 -] 1UZFE..UCF20 NO.1 |
90116-06098 |
US $2.24 |
||
|
11421
|
11421
90126-08031 Bolt, Stud[05.1997 -] 1UZFE..UCF20 NO.3 |
90126-08031 |
US $4.96 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[10.1994 -] 1UZFE..UCF20 L=22,OD=10 |
90250-10113 |
from US $0.99 |
||
|
11434C
|
11434C
90253-16001 Pin, Straight (For Cylinder Head Set)[10.1994 -] 1UZFE..UCF20 L=20,OD=16 |
90253-16001 |
US $4.64 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[10.1994 -] 1UZFE..UCF20 L=14,OD=6 |
90250-06003 |
from US $1.05 |
||
|
11434X
|
11434X
90253-11021 Pin, Ring[10.1994 -] 1UZFE..UCF20 |
90253-11021 |
from US $1.46 |
||
|
11452
|
11452
11452-50090
Guide, Oil Level Gage
[07.1997 - 07.2000] 1UZFE..UCF20 |
11452-50090 |
— | ||
|
11452
|
11452
11452-50091
Guide, Oil Level Gage
[07.2000 - 08.2000] 1UZFE..UCF20 |
11452-50091 |
— | ||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[07.1997 -] 1UZFE..UCF20 |
96721-19010 |
from US $1.64 |
||
|
11492C
|
11492C
11492-50010 Plate, Water Seal[10.1994 -] 1UZFE..UCF20 |
11492-50010 |
US $14.41 |
||
| replacement | |||||
|
11492C
|
11492C
11492-20010 Plate, Water Seal[10.1994 -] 1UZFE..UCF20 |
11492-20010 |
from US $7.88 |
||
|
12101
|
12101
12111-50060
Pan Sub-Assy, Oil
[07.1997 -] 1UZFE..UCF20 |
12111-50060 |
— | ||
|
12101A
|
12101A
90341-12023 Plug(For Oil Pan Drain)[10.1994 -] 1UZFE..UCF20 |
90341-12023 |
from US $4.29 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[10.1994 -] 1UZFE..UCF20 |
90430-12031 |
from US $0.92 |
||
|
12102A
|
12102A
12102-50050 Pan Sub-Assy, Oil, No.2[07.1997 -] 1UZFE..UCF20 |
12102-50050 |
US $164.24 |
||
|
12121
|
12121
12121-50071 Plate, Oil Pan Baffle, No.1[07.1997 -] 1UZFE..UCF20 |
12121-50071 |
US $55.56 |
||
|
15301
|
15301
15301-50050 Gage Sub-Assy, Oil Level[10.1994 -] 1UZFE..UCF20 |
15301-50050 |
US $16.95 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91643K0860
|
91643K0860
91643-K0860 New Genuine Part |
91643-K0860 |
US $2.33 |
||
| replacement | |||||
|
91643K0860
|
91643K0860
91641-K0855 New Genuine Part |
91641-K0855 |
US $3.04 |
||
|
9010510245
|
9010510245
90105-10245 New Genuine Part |
90105-10245 |
US $3.68 |
||
|
9011608208
|
9011608208
90116-08208 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
90116-08208 |
US $1.44 |
||
|
9011610152
|
9011610152
90116-10152 BOLT STUD |
90116-10152 |
US $3.64 |
||
|
9011906487
|
9011906487
90119-06487 New Genuine Part |
90119-06487 |
US $1.31 |
||
|
9011906528
|
9011906528
90119-06528 BOLT WWASHER |
90119-06528 |
US $1.92 |
||
|
9011906847
|
9011906847
90119-06847 New Genuine Part |
90119-06847 |
US $2.33 |
||
|
9017906129
|
9017906129
90179-06129 NUT |
90179-06129 |
US $1.44 |
||
|
9017906193
|
9017906193
90179-06193 New Genuine Part |
90179-06193 |
US $1.92 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9021011002
|
9021011002
90210-11002 New Genuine Part |
90210-11002 |
US $5.60 |
||
|
9091002124
|
9091002124
90910-02124
Bolt(For Crankshaft Bearing Cap Set)
|
90910-02124 |
— | ||
| replacement | |||||
|
9091002124
|
9091002124
90910-02206 BOLT |
90910-02206 |
US $3.52 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
