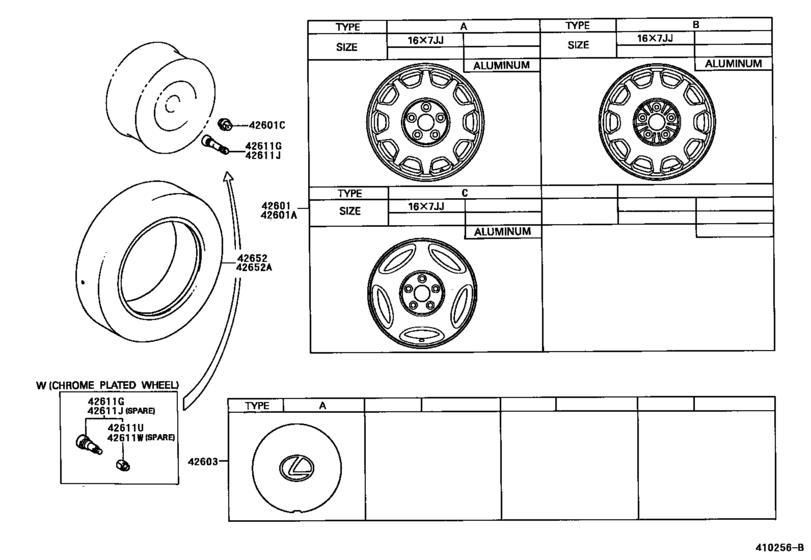

Disc Wheel & Wheel Cap ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42601
|
42601
42611-50170 Wheel, Disc[07.1997 -] UCF20 16X7JJ,TYPE C:REFER TO ILLUSTRATION |
42611-50170 |
US $620.26 |
||
|
42601
|
42601
42611-50180 Wheel, Disc[07.1997 -] UCF20 16X7JJ,TYPE C:REFER TO ILLUSTRATION, CHROME PLATED WHEEL,TOYOTA |
42611-50180 |
US $777.50 |
||
| replacement | |||||
|
42601
|
42601
42611-50190 Wheel, Disc[07.1997 -] UCF20 16X7JJ,TYPE C:REFER TO ILLUSTRATION, CHROME PLATED WHEEL,TOYOTA |
42611-50190 |
US $777.50 |
||
|
42601A
|
42601A
42611-50170 Wheel, Disc[07.1997 -] UCF20 16X7JJ,TYPE C:REFER TO ILLUSTRATION |
42611-50170 |
US $620.26 |
||
|
42601A
|
42601A
42611-50180 Wheel, Disc[08.1999 -] UCF20 16X7JJ,TYPE C:REFER TO ILLUSTRATION, CHROME PLATED WHEEL,TOYOTA |
42611-50180 |
US $777.50 |
||
| replacement | |||||
|
42601A
|
42601A
42611-50190 Wheel, Disc[08.1999 -] UCF20 16X7JJ,TYPE C:REFER TO ILLUSTRATION, CHROME PLATED WHEEL,TOYOTA |
42611-50190 |
US $777.50 |
||
|
42601C
|
42601C
90942-01058 Wheel Nut[01.2000 - 07.2000] UCF20 LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA) |
90942-01058 |
from US $5.52 |
||
|
42601C
|
42601C
90942-01062 Nut, Hub (For Axle)[10.1994 -] UCF20 |
90942-01062 |
from US $5.95 |
||
|
42603
|
42603
42603-30360 Ornament Sub-Assy, Wheel HubWHEEL HUB [01.2000 - 07.2000] UCF20 *CHR,LEXUS 10TH ANNIVERSARY EDITION(USA/HAWAII/P.RICO/CANADA) |
42603-30360 |
US $31.01 |
||
|
42603
|
42603
42603-50100
Ornament Sub-Assy, Wheel Hub
[07.1997 -] UCF20 TYPE A:REFER TO ILLUSTRATION |
42603-50100 |
— | ||
|
42603
|
42603
42603-50120 Ornament Sub-Assy, Wheel HubWHEEL HUB [07.1997 -] UCF20 TYPE A:REFER TO ILLUSTRATION,W(CHROME PLATED WHEEL) |
42603-50120 |
US $92.60 |
||
|
42611G
|
42611G
90942-05009 Valve (For Tubeless Tire)[10.1994 -] UCF20 |
90942-05009 |
from US $6.24 |
||
| replacement | |||||
|
42611G
|
42611G
90080-94031 Valve (For Tubeless Tire)[10.1994 -] UCF20 |
90080-94031 |
US $1.62 |
||
|
42611G
|
42611G
90942-05028 Valve (For Tubeless Tire)[05.1995 -] UCF20 W(CHROME PLATED WHEEL) |
90942-05028 |
from US $6.08 |
||
|
42611J
|
42611J
90942-05009 Valve (For Tubeless Tire)[07.1997 -] UCF20 |
90942-05009 |
from US $6.24 |
||
| replacement | |||||
|
42611J
|
42611J
90080-94031 Valve (For Tubeless Tire)[07.1997 -] UCF20 |
90080-94031 |
US $1.62 |
||
|
42611J
|
42611J
90942-05028 Valve (For Tubeless Tire)[08.1999 -] UCF20 W(CHROME PLATED WHEEL) |
90942-05028 |
from US $6.08 |
||
|
42611U
|
42611U
90942-05029 Cap, Tire Valve[05.1995 -] UCF20 |
90942-05029 |
from US $2.24 |
||
|
42611W
|
42611W
90942-05029 Cap, Tire Valve[08.1999 -] UCF20 |
90942-05029 |
from US $2.24 |
||
|
42652
|
42652
42652-50250
Tire
[10.1994 -] UCF20 225/60R16 97V,*D/L |
42652-50250 |
— | ||
|
42652
|
42652
42652-50310
Tire
[07.1997 -] UCF20 225/60R16 97V,*B/S |
42652-50310 |
— | ||
|
42652A
|
42652A
42652-50250
Tire
[10.1994 -] UCF20 225/60R16 97V,*D/L |
42652-50250 |
— | ||
|
42652A
|
42652A
42652-50310
Tire
[07.1997 -] UCF20 225/60R16 97V,*B/S |
42652-50310 |
— | ||
