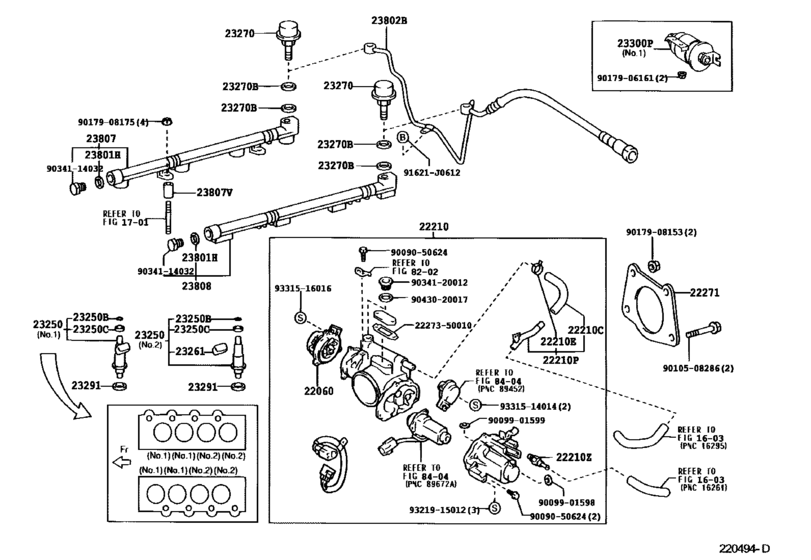

Fuel Injection System ([07.1997 - ] (9707- )) Diagram Toyota LEXUS LS
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22060
|
22060
22060-50010 Lever Assy, Throttle W/sensor[07.1997 - 05.1999] 1UZFE..UCF20 |
22060-50010 |
US $377.10 |
||
| replacement | |||||
|
22060
|
22060
22060-50011 Lever Assy, Throttle W/sensor[07.1997 - 05.1999] 1UZFE..UCF20 |
22060-50011 |
from US $299.70 |
||
|
22060
|
22060
22060-50011 Lever Assy, Throttle W/sensor[05.1999 -] 1UZFE..UCF20 |
22060-50011 |
from US $299.70 |
||
|
22210
|
22210
22030-50110 Body Assy, Throttle[07.1997 - 08.2000] 1UZFE..UCF20 |
22030-50110 |
US $1,892.80 |
||
|
22210C
|
22210C
16282-50030 Hose, Water By-Pass, No.1[07.1997 -] 1UZFE..UCF20 |
16282-50030 |
US $7.69 |
||
|
22210E
|
22210E
90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)[07.1997 -] 1UZFE..UCF20 |
90467-20011 |
from US $2.65 |
||
|
22210P
|
22210P
16025-50020 Pipe, Water By-Pass[07.1997 -] 1UZFE..UCF20 |
16025-50020 |
US $30.28 |
||
|
22210Z
|
22210Z
90916-03104 Thermostat, Manifold[07.1997 -] 1UZFE..UCF20 |
90916-03104 |
US $43.42 |
||
|
22271
|
22271
22271-50040
Gasket, Throttle Body
[07.1997 - 08.1998] 1UZFE..UCF20 |
22271-50040 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[07.1997 - 08.1998] 1UZFE..UCF20 |
22271-50042 |
US $34.81 |
||
|
22271
|
22271
22271-50041
Gasket, Throttle Body
[08.1998 - 06.2000] 1UZFE..UCF20 |
22271-50041 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[08.1998 - 06.2000] 1UZFE..UCF20 |
22271-50042 |
US $34.81 |
||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[06.2000 - 08.2000] 1UZFE..UCF20 |
22271-50042 |
US $34.81 |
||
|
23250
|
23250
23209-50030 Injector Assy, Fuel[07.1997 -] 1UZFE..UCF20 NO.1 |
23209-50030 |
from US $208.63 |
||
|
23250
|
23250
23209-50050 Injector Assy, Fuel[07.1997 -] 1UZFE..UCF20 NO.2 |
23209-50050 |
from US $172.59 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[07.1997 -] 1UZFE..UCF20 |
90301-07024 |
from US $2.65 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[10.1994 -] 1UZFE..UCF20 |
90480-13005 |
from US $2.46 |
||
|
23261
|
23261
23261-50010
Cover, Injector
[07.1997 - 01.1998] 1UZFE..UCF20 |
23261-50010 |
— | ||
| replacement | |||||
|
23261
|
23261
23261-50011 Cover, Injector[07.1997 - 01.1998] 1UZFE..UCF20 |
23261-50011 |
US $6.41 |
||
|
23261
|
23261
23261-50011 Cover, Injector[01.1998 -] 1UZFE..UCF20 |
23261-50011 |
US $6.41 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[07.1997 -] 1UZFE..UCF20 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[07.1997 -] 1UZFE..UCF20 |
23270-50012 |
from US $73.89 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[07.1997 -] 1UZFE..UCF20 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12026 Gasket[07.1997 -] 1UZFE..UCF20 DELIVERY PIPE SIDE |
90430-12026 |
from US $0.90 |
||
|
23291
|
23291
23291-20010 Insulator, Injector Vibration[07.1997 -] 1UZFE..UCF20 |
23291-20010 |
from US $2.62 |
||
|
23300P
|
23300P
23300-50060 Filter, Fuel(For Efi)[10.1994 -] 1UZFE..UCF20 NO.1 |
23300-50060 |
from US $69.16 |
||
|
23300P
|
23300P
23300-50070 Filter, Fuel(For Efi)FUEL(FOR EFI) [10.1994 -] 1UZFE..UCF20..USA MIDDLE S.AMERICA SPEC,NO.1 |
23300-50070 |
US $90.68 |
||
|
23300P
|
23300P
23300-50080 Filter, Fuel(For Efi)[07.1997 -] 1UZFE..UCF20 NO.2 |
23300-50080 |
from US $75.71 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[07.1997 -] 1UZFE..UCF20 |
90430-14008 |
from US $0.94 |
||
|
23802B
|
23802B
23802-50020
Pipe Sub-Assy, Fuel, No.2
[07.1997 -] 1UZFE..UCF20 |
23802-50020 |
— | ||
|
23807
|
23807
23807-50030 Pipe Sub-Assy, Fuel Delivery[07.1997 -] 1UZFE..UCF20 |
23807-50030 |
US $168.90 |
||
| replacement | |||||
|
23807
|
23807
23807-50031 Pipe Sub-Assy, Fuel Delivery[07.1997 -] 1UZFE..UCF20 |
23807-50031 |
US $116.48 |
||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[10.1994 -] 1UZFE..UCF20 |
90561-08029 |
from US $1.60 |
||
|
23808
|
23808
23808-50020 Pipe Sub-Assy, Fuel Delivery, No.2[07.1997 -] 1UZFE..UCF20 |
23808-50020 |
US $163.07 |
||
| replacement | |||||
|
23808
|
23808
23808-50021 Pipe Sub-Assy, Fuel Delivery, No.2[07.1997 -] 1UZFE..UCF20 |
23808-50021 |
US $112.11 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
2227350010
|
2227350010
22273-50010
Gasket, Throttle Body, No.2
|
22273-50010 |
— | ||
|
9009050624
|
9009050624
90090-50624
New Genuine Part
|
90090-50624 |
— | ||
|
9009901598
|
9009901598
90099-01598 New Genuine Part |
90099-01598 |
US $1.44 |
||
|
9009901599
|
9009901599
90099-01599 New Genuine Part |
90099-01599 |
US $1.18 |
||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.16 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.88 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9034114032
|
9034114032
90341-14032 Plug, W/head Taper Screw, No.1 |
90341-14032 |
US $2.53 |
||
|
9034120012
|
9034120012
90341-20012 Plug, W/head Straight Screw, No.1 |
90341-20012 |
US $3.20 |
||
|
9043020017
|
9043020017
90430-20017
GASKET
|
90430-20017 |
— | ||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $2.72 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331516016
|
9331516016
93315-16016 New Genuine Part |
93315-16016 |
US $2.62 |
||
